Prerequisites
•
T
he module can only be operated with a main module.
I/O module FX3-XTDS
T
he voltage supply for the internal logic and the test outputs is provided via the system
plug and the internal FLEXBUS+ bus.
The voltage supply of the outputs Y3 to Y6 of the FX3-XTDS must be provided directly
via A1/A2 on the respective module.

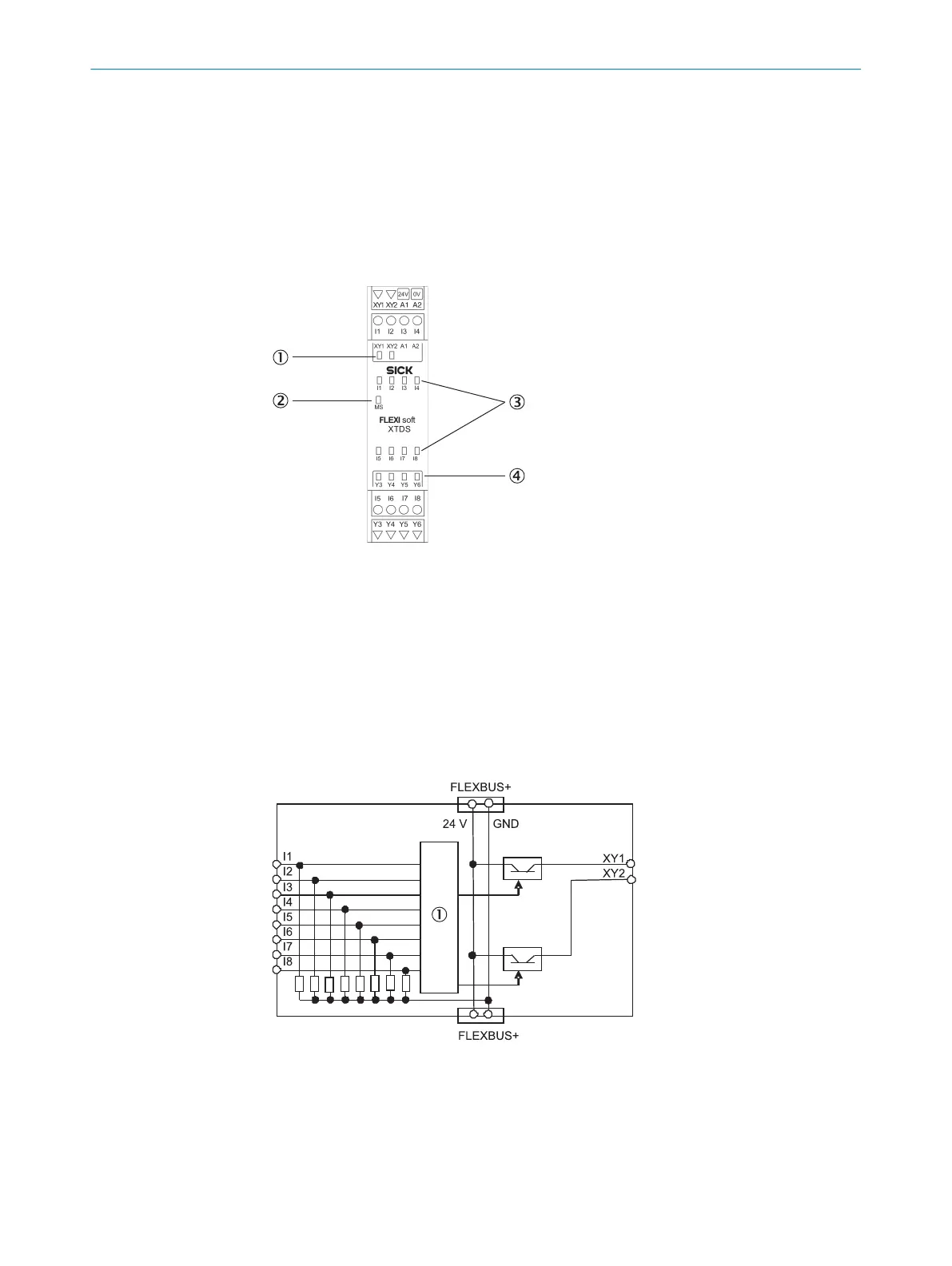

Figure 12: I/O module FX3-XTDS
1
2 LEDs for test outputs or non-safe outputs
2
MS LED (Module St
atus)
3
8 input LEDs
4
4 output LEDs
Further topics
•
"C
onstruction and function", page 17
3.4.8.1 Internal circuitry
Figure 13: Internal structure of the FX3-XTDS – safety inputs and test outputs
1
Internal logic
PRODUCT DESCRIPTION 3
8012478/1IG6/2023-02-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller
31
Subject to change without notice
