10.6 Heated sample gas lines
Table 25: Sample gas line - characteristics
Sample gas line
Length Max. 35 m
Ambient temperature –20 ... 80 °C
Working temperature Max. 200 °C
Temperature control 1 x Pt100
1 x additional Pt100 as reserve
Power supply 115 V or 230 V
Power consumption 90 VA/m
Degree of protection IP 54

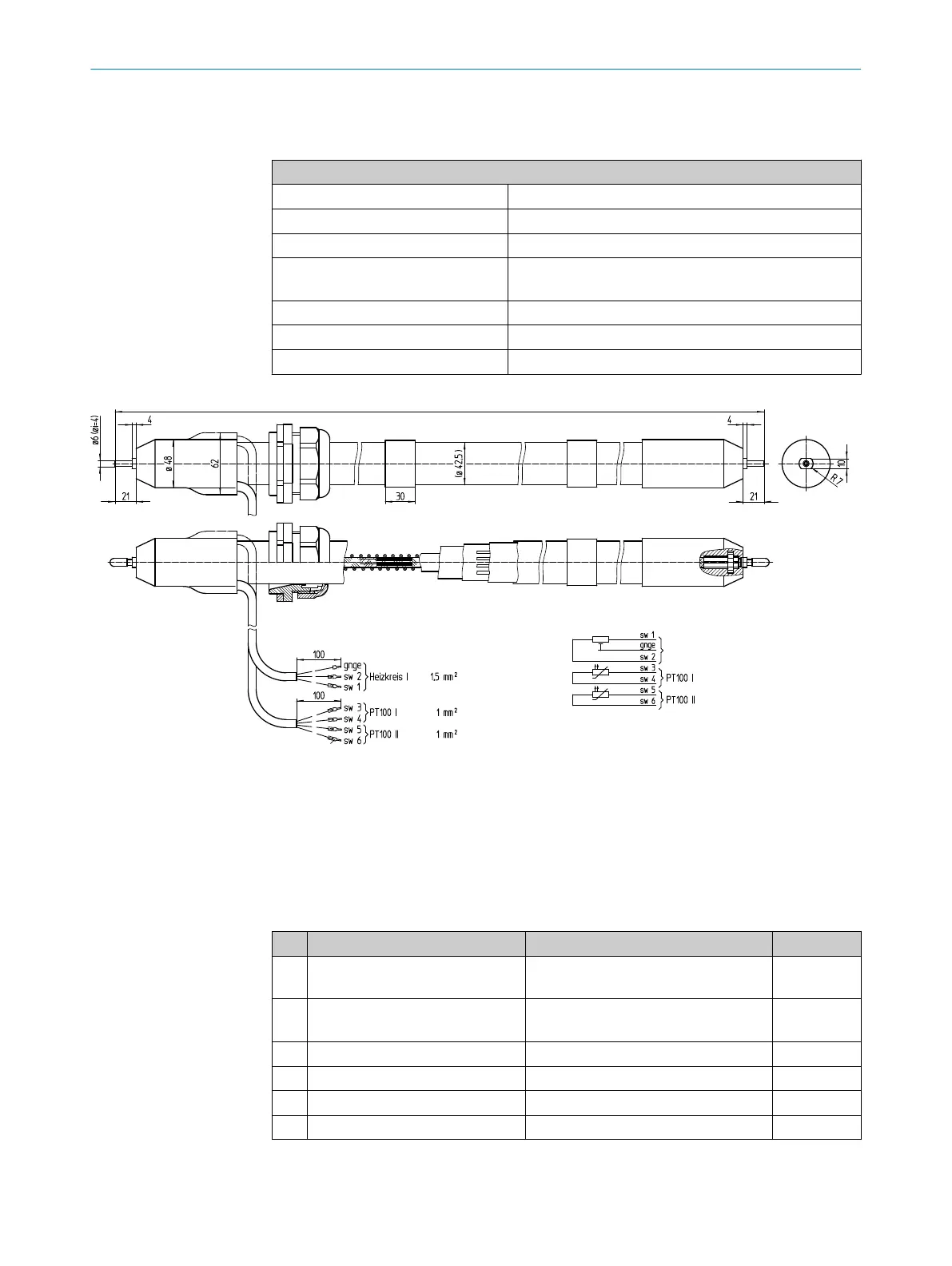

Figure 121: Heated sample gas line
10.7
Tube bundle cable
No. Designation Function Dimension
1
Power supplies Lines 1 and 2: Gas sampling filter
Lines 3 and 4: Probe tube (optional)
4 x 1.5 mm
2
2
Signal lines (Pt100) Lines 1 and 2: Gas sampling filter
Lines 3 and 4: Probe tube (optional)
4 x 1.0 mm
2
3
Grounding conductor (gnge) Ground 1 x 4.0 mm
2
4
PTFE hose (white) Zero gas DN 4/6
5
PA hose (black) Control air main valve DN 6/8
6
PA hose (blue) Backflush air DN 6/8
TECHNICAL DATA 10
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
81
Subject to change without notice
