8 Maintenance
8.1 Test digital I/O
Menu: Maintenance/Tests
This menu serves to test the digital interfaces.
b
Click the desired interface (mark).
b
Perform with „Test“.
b
A menu to set the parameters appears.
b
(Field “Save” has no significance).

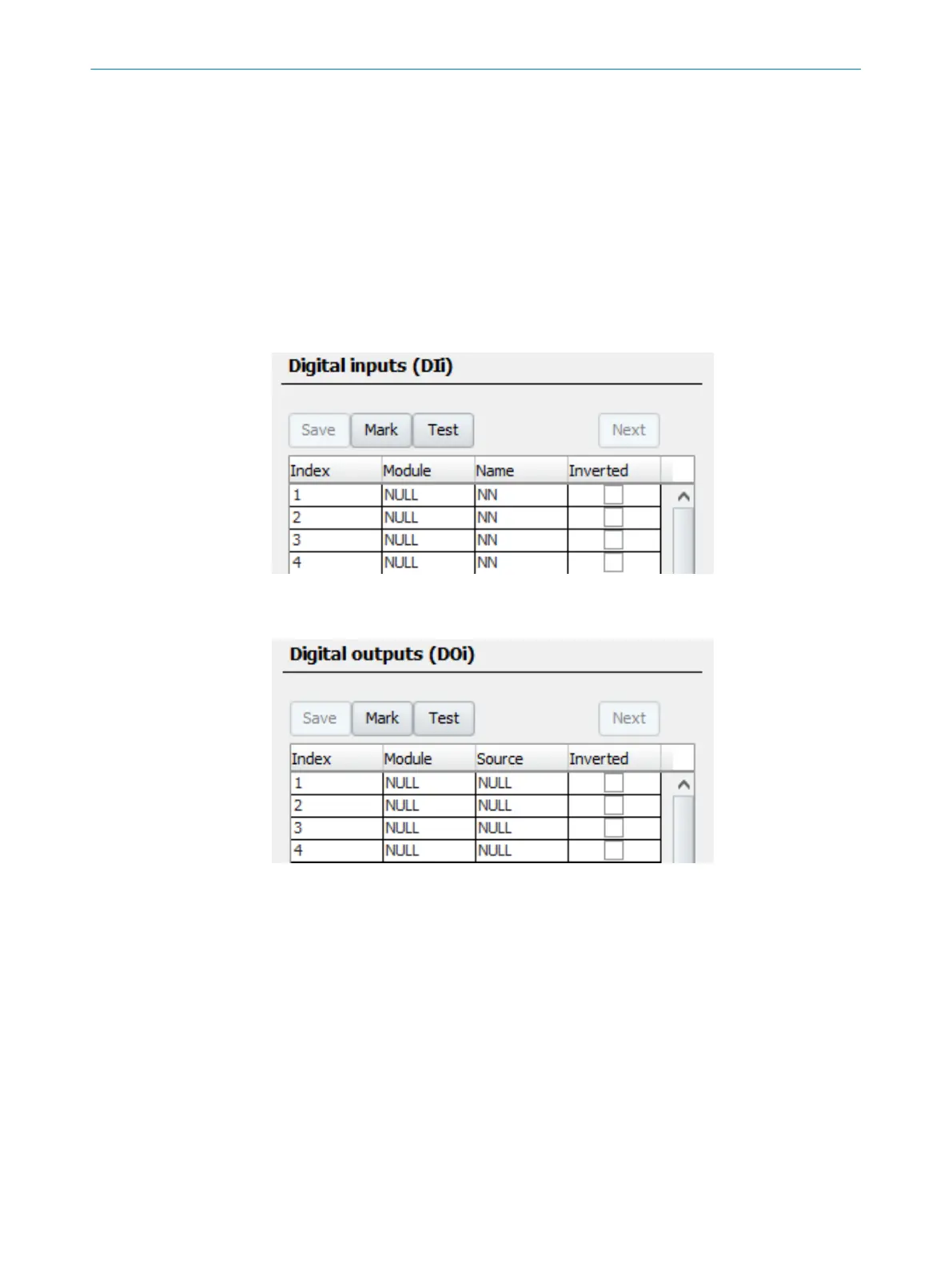

Test digital inputs
Figure 105: Menu Digital inputs
Test digital outputs
Figure 106: Menu Digital outputs
8.2 Setting operating states
Menu: Maintenance/Operating states
This menu serves to switch the operating states of the MARSIC300 on.
MAINTENANCE 8
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
69
Subject to change without notice
