2.2.3 Tube screw fitting
Swagelok screw fitting

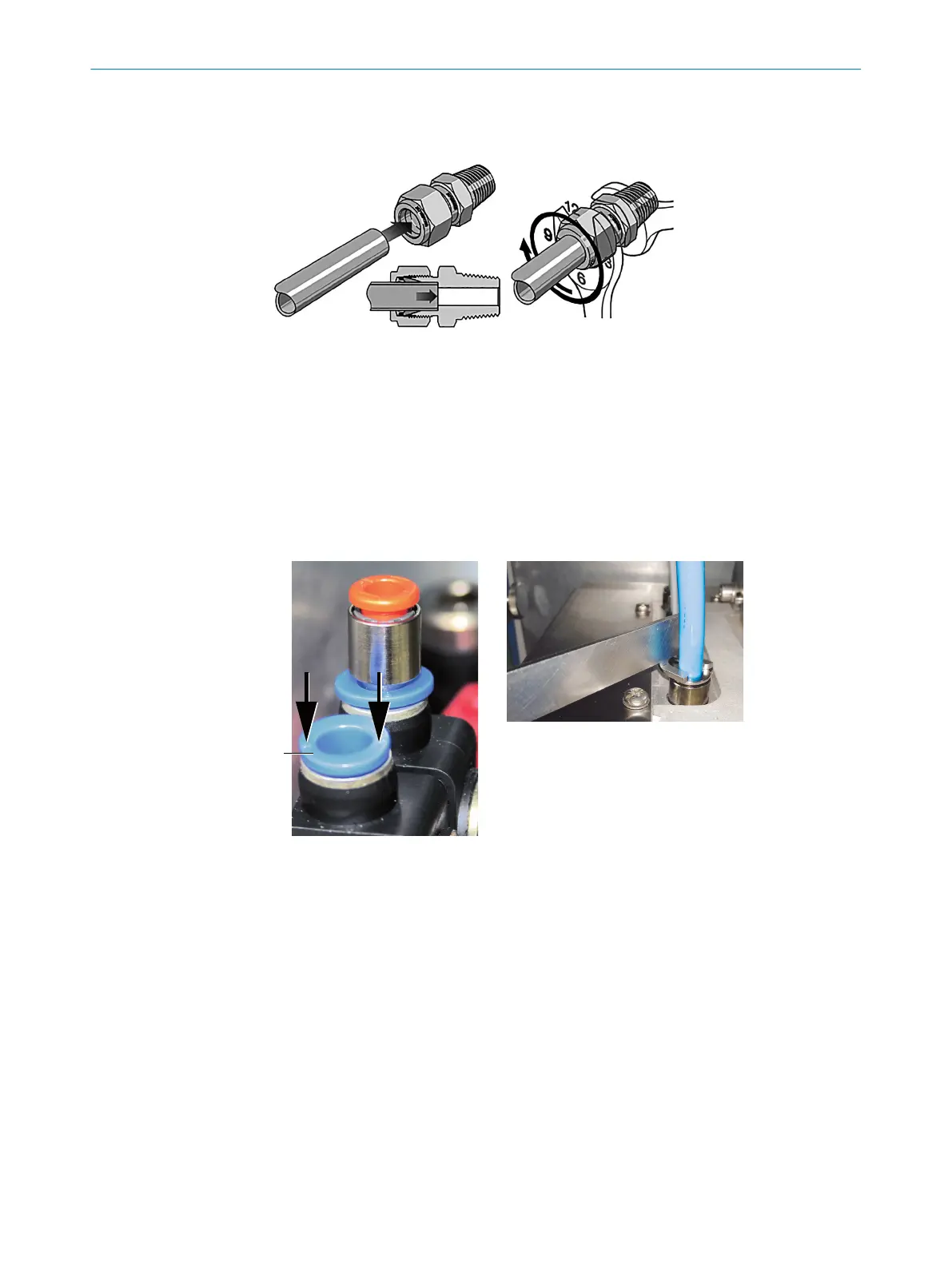

Figure 1: Swagelok screw fitting
b
Push the tube up to the stop in the
tube screw fitting.
Turn the cap nut finger-tight.
b
During initial assembly: Hold the fitting
bolt steady and tighten the cap nut
with 1 1/4 revolutions.
b
During refitting: Tighten the cap nut to
the previous position (the resistance
increases noticeably) and then slightly
tighten.
Push-in fitting (pneumatic)
Figure 2: Push-in fitting with
retaining ring
1
Retaining ring
Figure 3: Using the pressure tool
Pressure tool
b
Connecting the tube: Push tube in.
b
Disconnecting the tube: Press the retaining ring in and pull the tube out.
It is easier to press the retaining ring in using the pressure tool provided.
2.3 Scope of delivery
Please see the delivery documents for the scope of delivery.
2.4 Provision by operator
To be provided by operator, especially:
•
Suitable flange on the exhaust duct (see “Operating Instructions SFU”)
•
Fixing accessories of enclosures (dowels, screws, etc.)
INSTALLATION 2
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
9
Subject to change without notice
