SICK MARSIC300 User Manual

Table 28: Line cross-sections
Line cross-sections (relative to leads with ferrules)
•
CAN
•
RS485
Line cross-section: 0.14 ... 1.5 mm
2
AWG28 ... AWG16
•
Pt100 inputs
•
24 V DC valve outputs
•
Digital inputs
•
Relay outputs (potential-free)
Line cross-section: 0.25 ... 2.5 mm
2
AWG30 ... AWG12
•
External heating circuits Line cross-section: 0.25 ... 4.0 mm
2
AWG30 ... AWG10
•
Power supply Line cross-section: 0.5 ... 6.0 mm
2
AWG20 ... AWG7
Table 29: Optional interfaces
Interfaces (optional)
Digital outputs 4 outputs, 24 V, 0.5 A
Digital inputs Electrically isolated, 24 V, 0.3 A
Analog outputs Optional
10.10 Connections in analyzer
Power supply - connection / fuses
The power supply is located on the left on the analyzer.

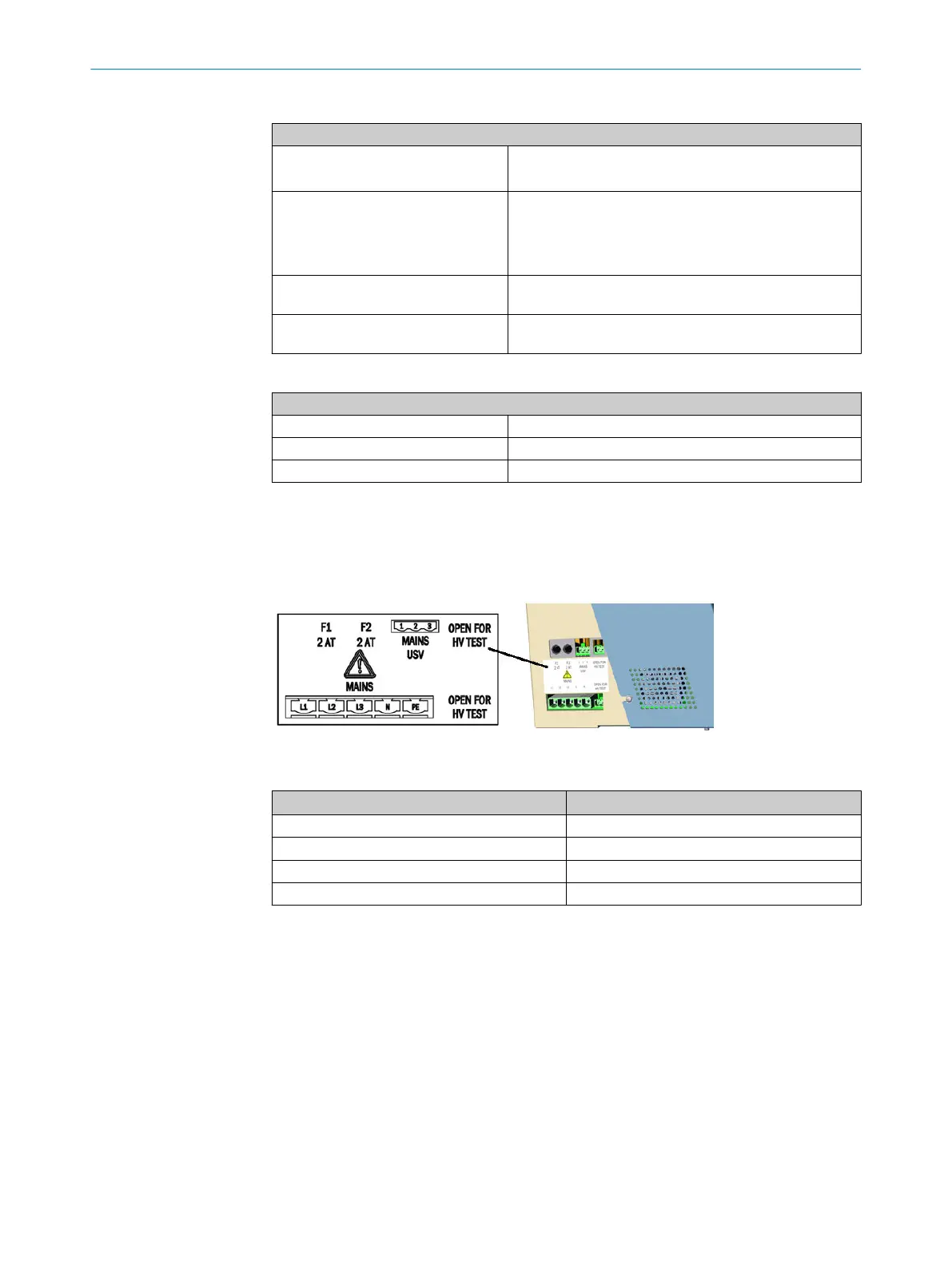

Figure 124: Power supply connections
Table 30: Power supply - connections
Name Supply
MAINS USV (3-pole) Power supply for electronics unit (internal)
MAINS (5-pole) External power supply
F1 Internal
F2 Internal
Electronics fuses
TECHNICAL DATA 10
8017585/YXD9/V3-1/2017-05 | SICK T E C H N I C A L I N F O R M A T I O N | MARSIC300
83
Subject to change without notice
