Input Register No Measured variable
1
0
0
0,5
1
1,5
50
100
150
200
250
300
350
5 10 15 20 25 30 35 40 45 50 55 60 65 70
2
2,5
-0,5
-1
-1,5
-2
-2,5
2,5
3
3,5
4
4,5
5
2
1,5
1
0,5
0
1
2
4
3

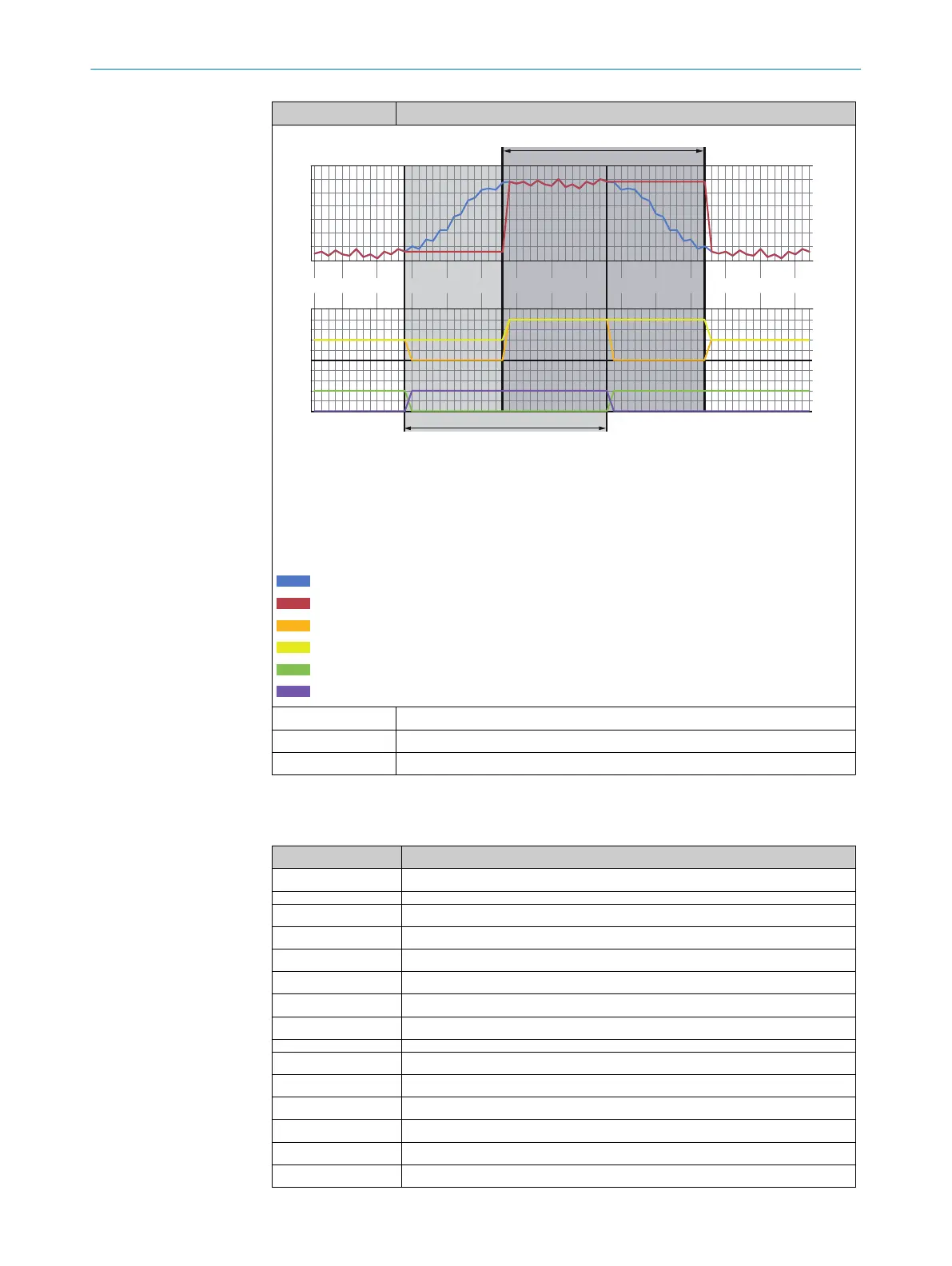

Figure 130: Time diagram
1
Measured value course (exemplary)
2
Signal course (exemplary)
3
Feed via measuring point 2
4
Measured variable comes from measuring point 2 (in Hold mode)
Measured variable
Measured variable in Hold mode
Active Sampling Point (Input Reg. 1050)
Shown Sampling Point (Input Reg. 1052)
Gas feed via measuring point 1 (DI 1008)
Gas feed via measuring point 2 (DI 1009)
1054 [Float] Optional: [pH washing water]
1056 [Float] Optional: [PAH washing water (oil content)]
1058 [Float] Optional: [Clouding washing water]
11.2.3 Device-internal monitoring values (Input Register [3xxxx], Function Code 04)
Table 40: Input Register - monitoring value
Input Register No Internal variable
2000 [Float] Sample gas flow
2002 [Float] T_Cell (heating measuring cell)
2004 [Float] T_Optics (heating optics)
2006 [Float] T_Ext1 (external heating 1)
2008 [Float] T_Ext2 (external heating 2)
... ...
2018 [Float] T_Ext7 (external heating 7)
2020 [Float] T (ambient)
2022 [Float] T (LPMS01)
2024 [Float] T (LPMS02)
2026 [Float] T (LPMS03)
2028 [Float] p(0)
2030 [Float] p(2)
