15.4 Dimensional drawings

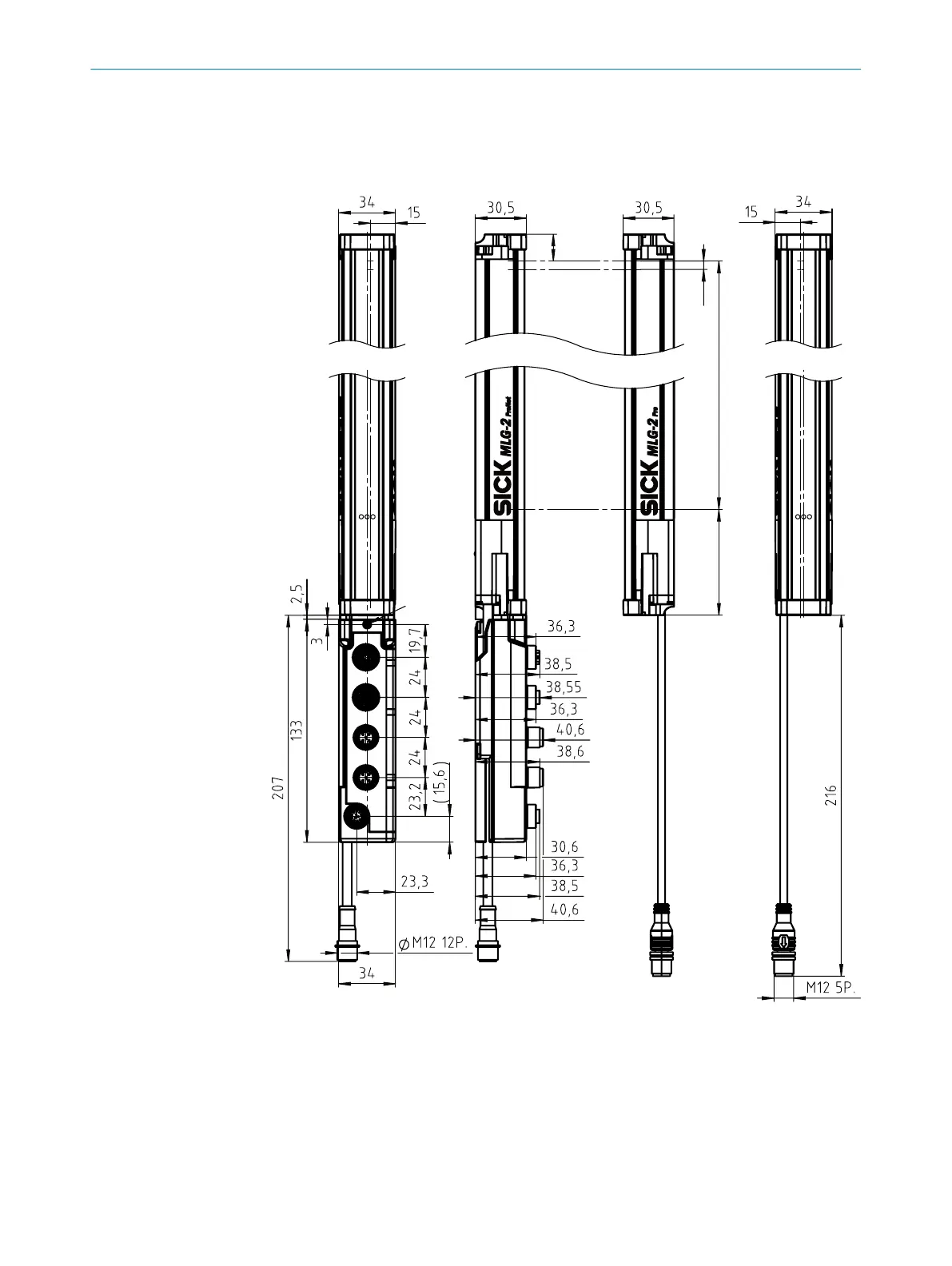

15.4.1 MLG-2 WebChecker dimensional drawing
Empfänger Sender
Ansicht Sender
Ansicht Empfänger







Figure 85: MLG-2 WebChecker dimensional drawing (mm)
1
Detection height
11)
= (n × S
A) – 1 SA
2
Distance from MLG-2 edge to the last beam
with 5, 10, 20, 25, 30 and 50 mm beam separation = 16.1 mm
with 2.5 mm beam separation = 17.15 mm
3
Distance from MLG-2 edge to first beam
4
Distance from MLG-2 head to MLG-2 edge
11)
S
ee type code.
TECHNICAL DATA 15
