Designation Description
Check configuration Checks whether the configuration of the Ethernet interface is OK.
The r
esult is displayed by the indicator:
•
Gray: The configuration has not yet been checked or is faulty.
•
Green: Configuration is OK.
Activating configuration Activates configuration.
If you c
lick on the “Activate” button in Online mode, the MLG-2
changes to Offline mode. You then have to switch back to Online
mode.
11.3 “Enhanced Sensing” page
11.3.1 Overview

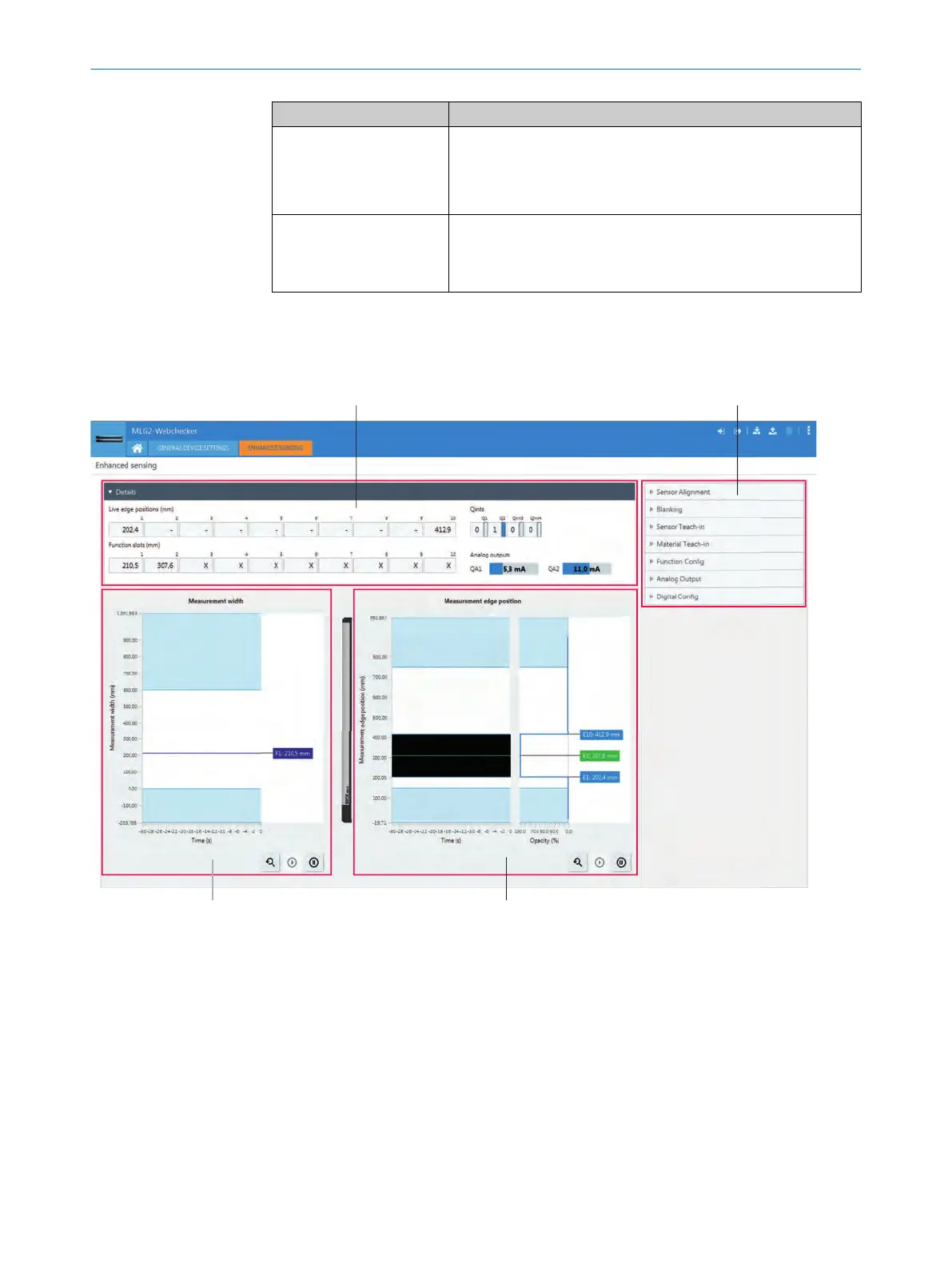

Figure 66: “Enhanced Sensing” page (example)
1
Current values for edge positions and functions (width and center positions),
cur
rent status of the Q switching outputs and inputs. Can be opened closed for
a better overview.
2
Menus
3
"Graphic display of the position and attenuation” area: Measurement field
width with objects, measured edges, calculated center positions between 2
edges, attenuation (opacity)
4
“Graphic display of widths” area: Calculating widths with measurement field
width
11 CONFIGURATION WITH SOPAS
94
O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker 8025190/2020-01-13 | SICK
Subject to change without notice
