Designation Description
Device name Enter device name.
Fac
tory setting: *******
Process quality (QoR) Shows the current process quality of the MLG-2 from 0 to 100%.
The v
ertical line shows the current setting for “QoR limit value”.
Parameterize the “QoR limit value” on the “General Device Set‐
tings” page in the “General settings” area.
Device status Shows the current device status with color indicator and message.
•
Green: S
ystem running properly
•
Yellow: Warning
•
Red: Error
11.1.3 “Application” area
The "Application" area shows information on parameterized application.

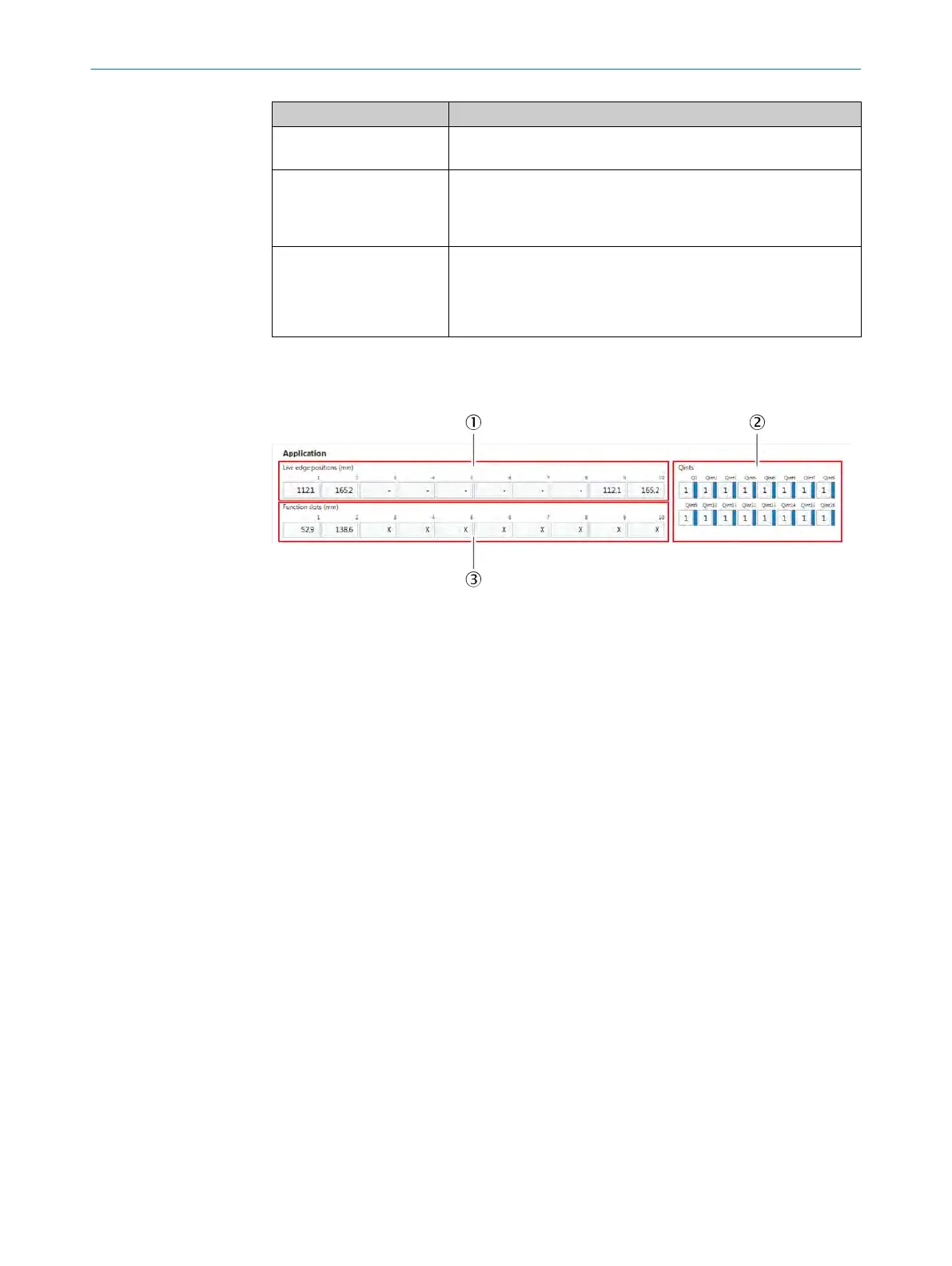

Figure 61: “Start” page, “Application” area
1
Current position of the measured edges 1 to 10 in mm. "-" means "edge not available".
2
Current status of the Q switching outputs and inputs
The number c
an vary:
a) Depending on how many Q are activated. Can be defined in "Enhanced Sensing" under
the Digital configuration menu.
b) Q / Qint depending what is actually available as hardware (Q) or only output virtually
(Qint) via a data interface.
3
Calculated values for width and center position between 2 edges in mm, depending on
t
he par
ameterized functions. "-" means "at least one of the edges is missing", "x" means
"function deactivated".
You parameterize the functions on the “Enhanced Sensing” page in the “Functional con‐
fi
guration” menu.
More information:
•
see "“Functional configuration” menu", page 101
11 CONFIGURATION WITH SOPAS
88
O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker 8025190/2020-01-13 | SICK
Subject to change without notice
