11 Configuration with SOPAS
11.1 “Start” page
11.1.1 Overview
The “Start” page is mainly used to display information for the MLG-2, from measured
v
alue
s and calculated values and for graphic display of the parameterized application.
1 2 3
4

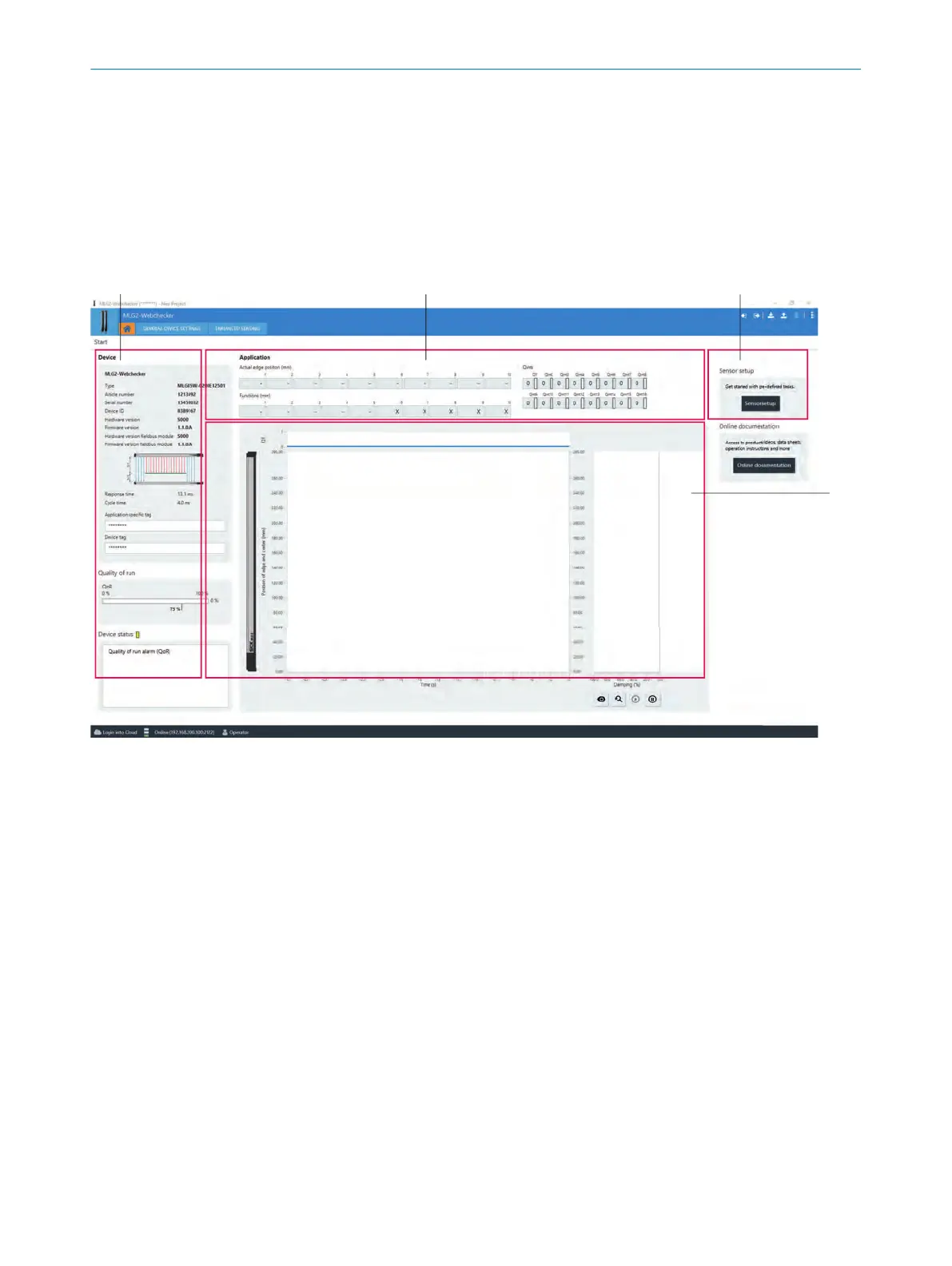

Figure 60: “Start” page (example)
1
“Device” area: Information on the MLG-2
2
“Application” area: Positions of the measured edges, calculated values for
widt
hs and center positions of 2 edges, current status of the Q switching out‐
puts and inputs
3
Start “Installation assistant” wizard.
4
"Graphic display” area: Measurement field width with objects, measured
edges, calculated widths and center positions between 2 edges, measured
attenuation (opacity), current status of the Q switching outputs and inputs in
the histogram (30 seconds).
