11.2 “General Device Settings” page
11.2.1 Overview
1 2

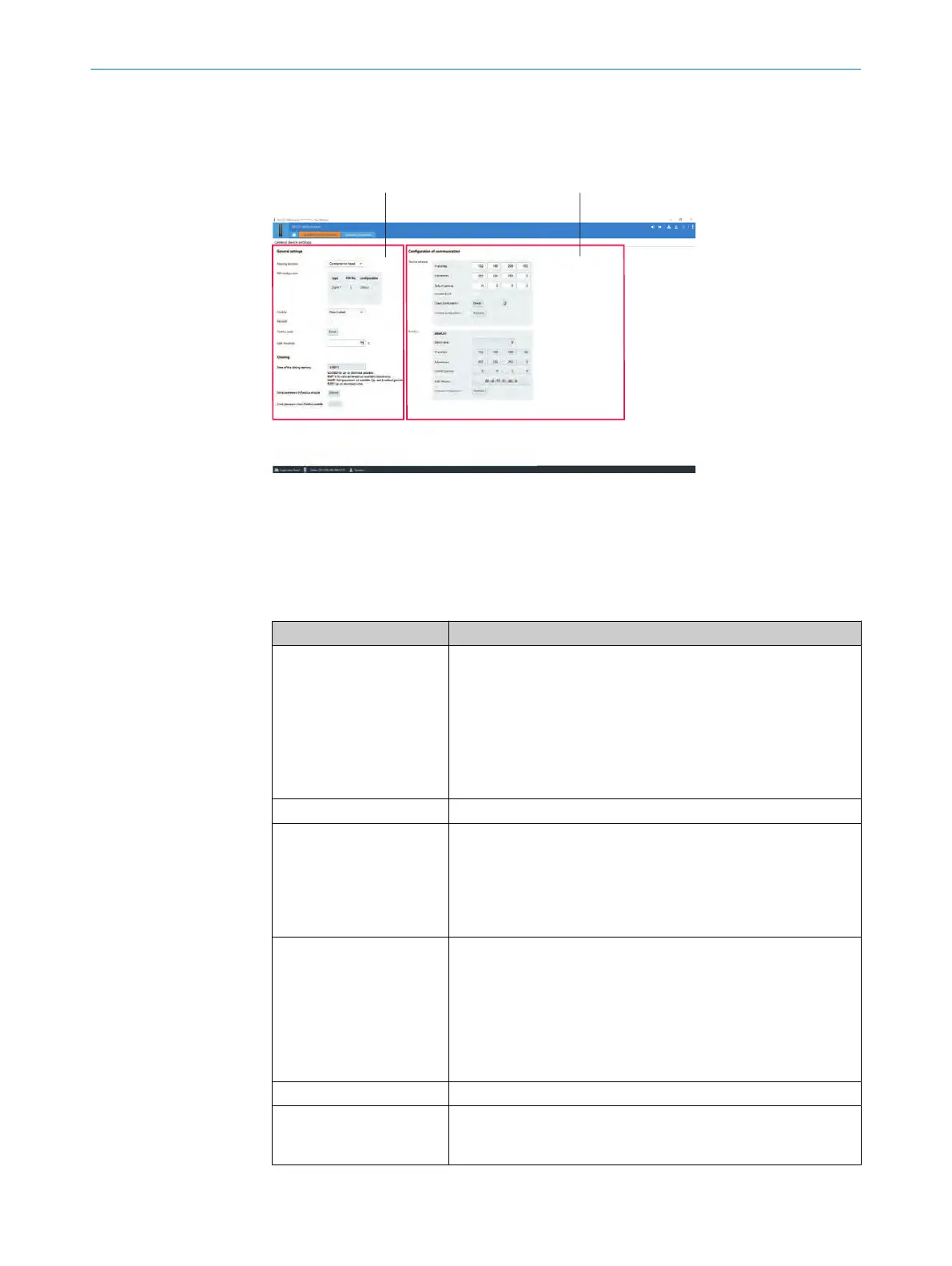

Figure 64: “General Device Settings” page (example)
1
“General settings” area
2
“Communication configuration” area
11.2.2 “General settings” area
Table 44: General settings
Designation Description
Reading direction Set reading direction. This setting determines the edge numbers.
•
Re
ad direction from the connection side of the head side: The
MLG-2 reads from the connection to the head side. The first
detected edge from the connection side contains number E1.
•
Read direction from the head side of the connection side: The
MLG-2 reads from the head to the connection side. The first
detected edge from the head side contains number E1.
Factory setting: Read direction from connection side to head side
PIN configuration See the following “PIN configuration” section.
Device search function If multiple MLG-2 units are installed in one application, you can
identif
y a certain MLG-2 and the device search function.
•
Deactivated: Operational status is displayed via LEDs as usual.
•
Activated: All LEDs flash simultaneously with 1 Hz.
Factory setting: Deactivated
Key lock Activate or deactivate the lock for the Teach pushbutton on the
r
ecei
ver of the MLG-2.
•
Checkbox activated: Pushbutton lock activated. The MLG-2
cannot be operated via the Teach pushbutton.
•
Checkbox deactivated: Pushbutton lock deactivated. The
MLG-2 is can be operated via the Teach pushbutton.
Factory setting: Pushbutton lock deactivated.
Factory settings Reset MLG-2 to factory setting.
QoR (Quality of Run) limit
v
alue (
process quality
switching threshold)
Set switching threshold for the process quality alarm.
Factory setting: 75%
