SICK MLG-2 WebChecker User Manual

Number of
beams
Smoo
thing
= 4
Smoothing
= 8
Smoothing =
16
Smoothing =
32
Smoothing = 64
450 147.7 ms 263.5 ms 494.9 ms 957.7 ms 1883.4 ms
480 157.5 ms 280.9 ms 527.7 ms 1,021.2 ms 2,008.4 ms

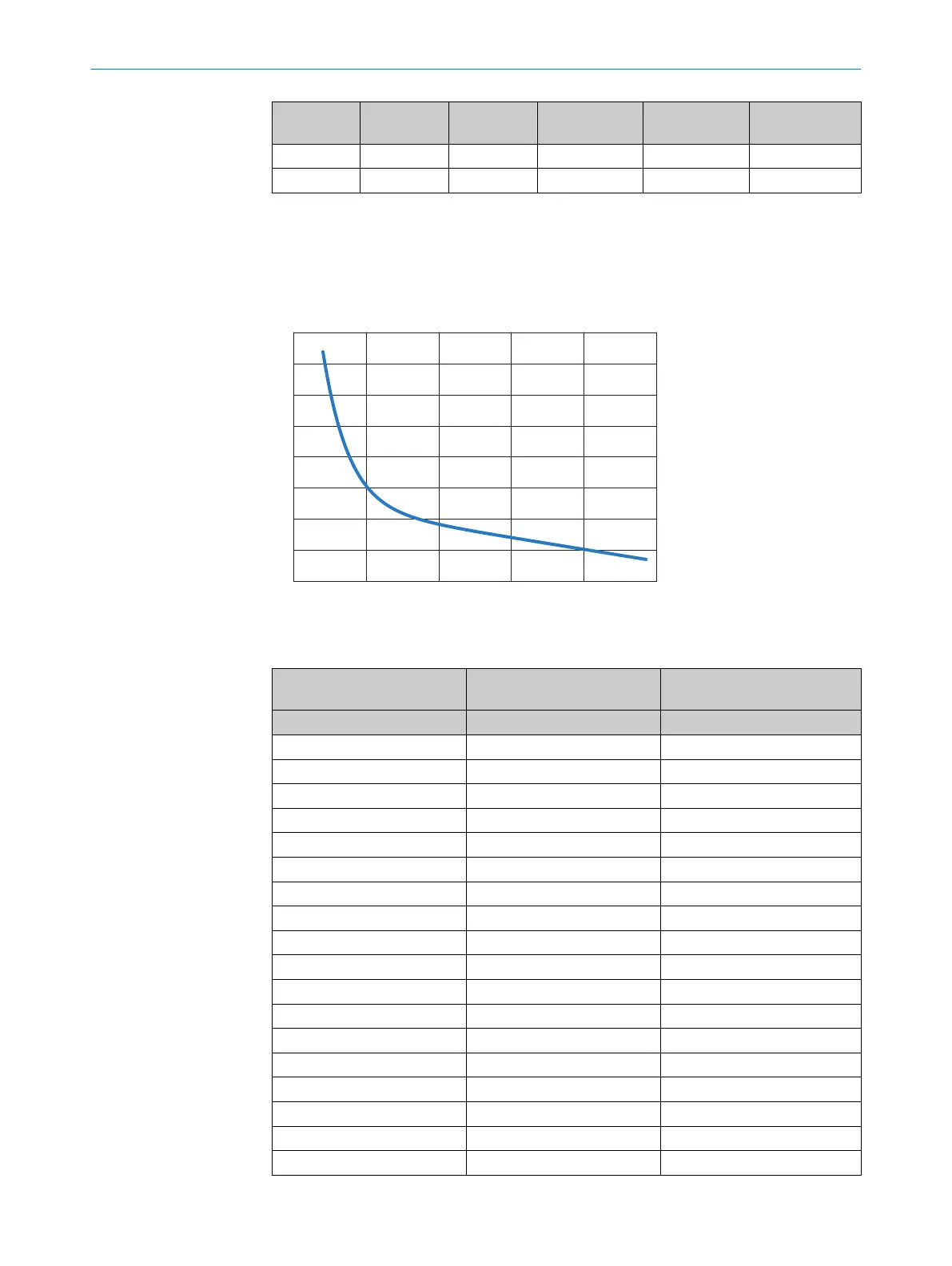

15.3.2 Optimal object position
Additional information
•
see "Plannin
g", page 25
66
67
68
69
70
71
72
73
74
0 500 1000 1500 2000 2500
Optimaler Abstand Objekt – Sender in %
Abstand Sender – Empfänger in mm
Table 68: Optimal object position: Optimal distance between object and sender
Distance between sender and
rec
eiver
Optimal distance between
object and sender
Optimal distance between
object and sender
[mm] [%] [mm]
200 73.4 146.8
250 72.1 180.3
300 71.1 213.3
400 69.8 279.2
500 69.1 345.5
600 68.6 411.6
700 68.3 478.1
800 68.1 544.8
900 68.0 612.0
1000 67.8 678.0
1100 67.7 744.7
1200 67.7 812.4
1300 67.7 878.8
1400 67.5 945.0
1500 67.4 1,011.0
1600 67.3 1,076.8
1700 67.3 1,144.1
1800 67.2 1,209.6
TECHNICAL DATA 15
8025190/2020-01-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker
117
Subject to change without notice
