SICK MLG-2 WebChecker User Manual

Number of
beams
Smoo
thing
= 4
Smoothing
= 8
Smoothing =
16
Smoothing =
32
Smoothing = 64
330 85.0 ms 170.0 ms 340.0 ms 679.9 ms 1,359.9 ms
360 92.7 ms 185.3 ms 370.7 ms 741.4 ms 1,482.8 ms
390 100.4 ms 200.7 ms 401.4 ms 802.8 ms 1,605.6 ms
420 108.0 ms 216.1 ms 432.1 ms 864.3 ms 1,728.5 ms
450 115.7 ms 231.4 ms 462.8 ms 925.7 ms 1,851.4 ms
480 123.4 ms 246.8 ms 493.6 ms 987.1 ms 1,974.3 ms
0,0
500,0
1000,0
2000,0
1500,0
1
2
0 100 200 300 400
2500,0
500 600
7
6
5
4
3

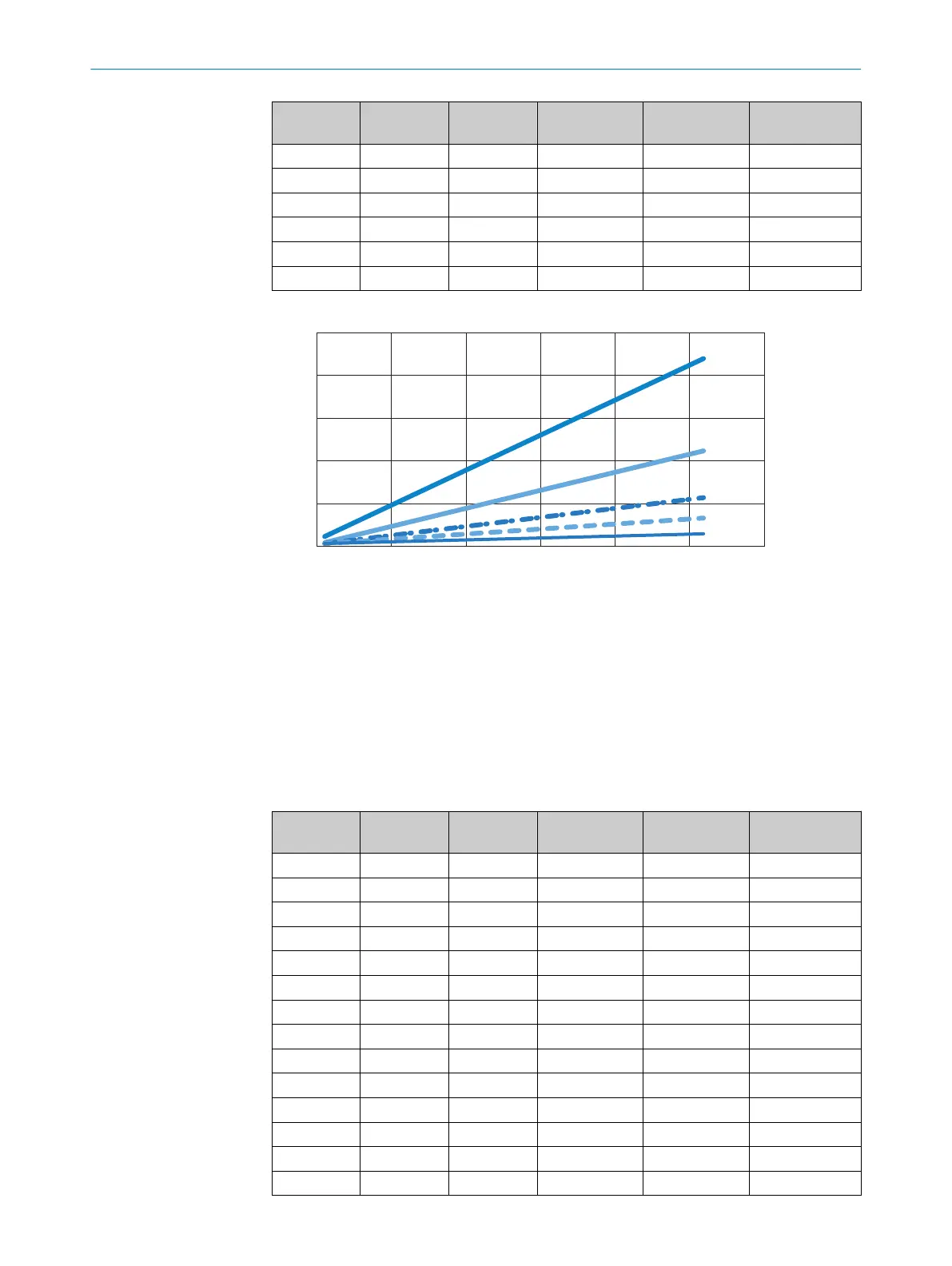

Figure 84: Response time with smoothing
1
Response time with smoothing
2
Number of beams
3
Smoothing = 4
4
Smoothing = 8
5
Smoothing = 16
6
Smoothing = 32
7
Smoothing = 64
Table 67: Response time with smoothing
Number of
beams
Smoo
thing
= 4
Smoothing
= 8
Smoothing =
16
Smoothing =
32
Smoothing = 64
30 11.2 ms 19.4 ms 35.8 ms 68.6 ms 134.1 ms
60 21.0 ms 36.9 ms 68.6 ms 132.1 ms 259.1 ms
90 30.7 ms 54.3 ms 101.4 ms 195.6 ms 384.0 ms
120 40.5 ms 71.7 ms 134.2 ms 259.1 ms 509.0 ms
150 50.2 ms 89.2 ms 167.0 ms 322.6 ms 633.9 ms
180 60.0 ms 106.6 ms 199.8 ms 386.1 ms 758.9 ms
210 69.7 ms 124.0 ms 232.6 ms 449.6 ms 883.8 ms
240 79.5 ms 141.4 ms 265.3 ms 513.2 ms 1,008.8 ms
270 89.2 ms 158.9 ms 298.1 ms 576.7 ms 1,133.7 ms
300 99.0 ms 176.3 ms 330.9 ms 640.2 ms 1,258.7 ms
330 108.7 ms 193.7 ms 363.7 ms 703.7 ms 1,383.6 ms
360 118.5 ms 211.2 ms 396.5 ms 767.2 ms 1,508.6 ms
390 128.2 ms 228.6 ms 429.3 ms 830.7 ms 1,633.5 ms
420 138.0 ms 246.0 ms 462.1 ms 894.2 ms 1758.5 ms
15 TECHNICAL DATA
116
O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker 8025190/2020-01-13 | SICK
Subject to change without notice
