3.3 Structure and function
The MLG-2 is an optical automation light grid. It comprises a sender and a receiver.
T
he sender consis
ts of sender optics, several sender elements (LEDs), and actuation
electronics. The receiver consists of receiver optics, several receiver elements (photodi‐
odes) and actuation electronics.
3.3.1 Device components

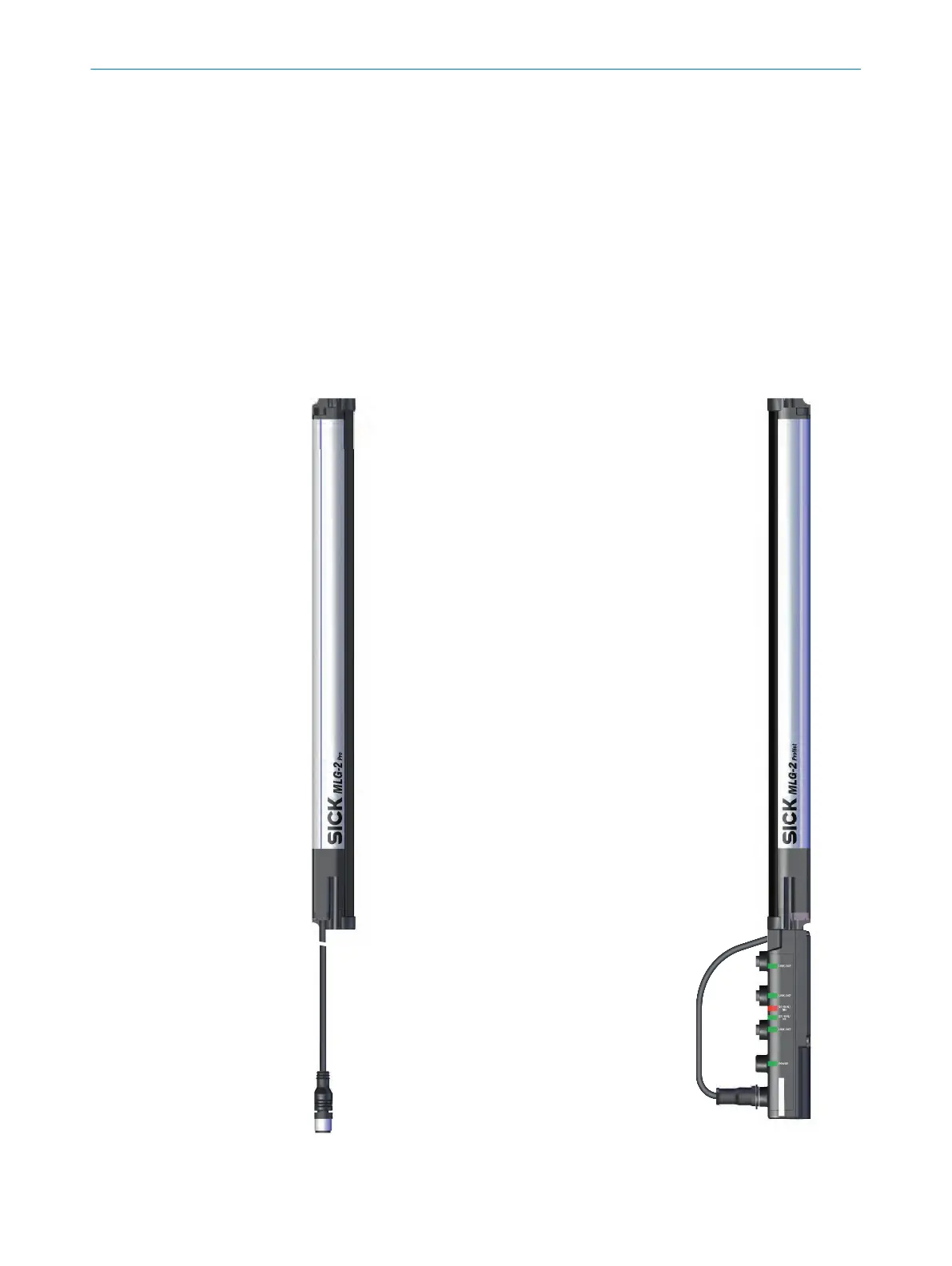

The MLG-2 WebChecker consists of:
•
Sender = MLG-2 WebChecker
•
Receiver = MLG-2 WebChecker
•
Fieldbus module
