11.3.2 “Details” area
You can open and close the “Details” area. This area corresponds to the “Application”
ar
e
a on the "Start” page.
More information:
•
see "“Start” page", page 86
11.3.3 Menus
You can open and close the menus.
More information:
•
D
e
scription of the menus: see "Enhanced Sensing – menus", page 96
11.3.4 “Graphic representation of the position and attenuation” area
This area corresponds to the “Graphic display of the position and attenuation” area on
t
he "St
art” page.
The “Eye” button and the histogram of the Q switching outputs and inputs is only avail‐
able on the “Start” page.
Additional information
•
see "“S
tart” page", page 86
11.3.5 “Graphic display of the width” area
1
3 2

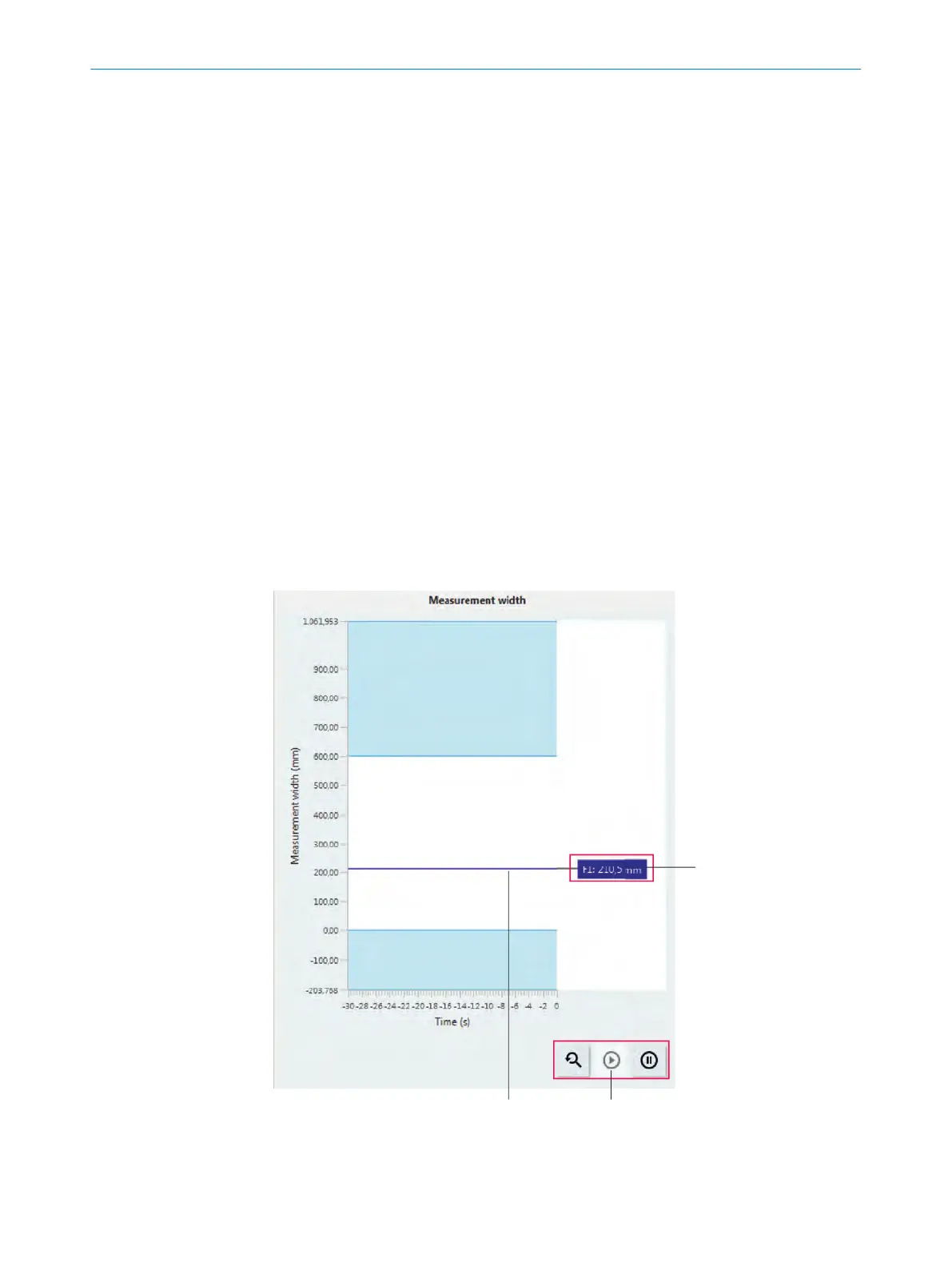

Figure 67: "Enhanced Sensing” page, graphic display of the width
1
Function number and calculated value of a width between 2 edges
2
Buttons for the graphic display
CONFIGURATION WITH SOPAS 11
8025190/2020-01-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker
95
Subject to change without notice
