SICK MLG-2 WebChecker User Manual

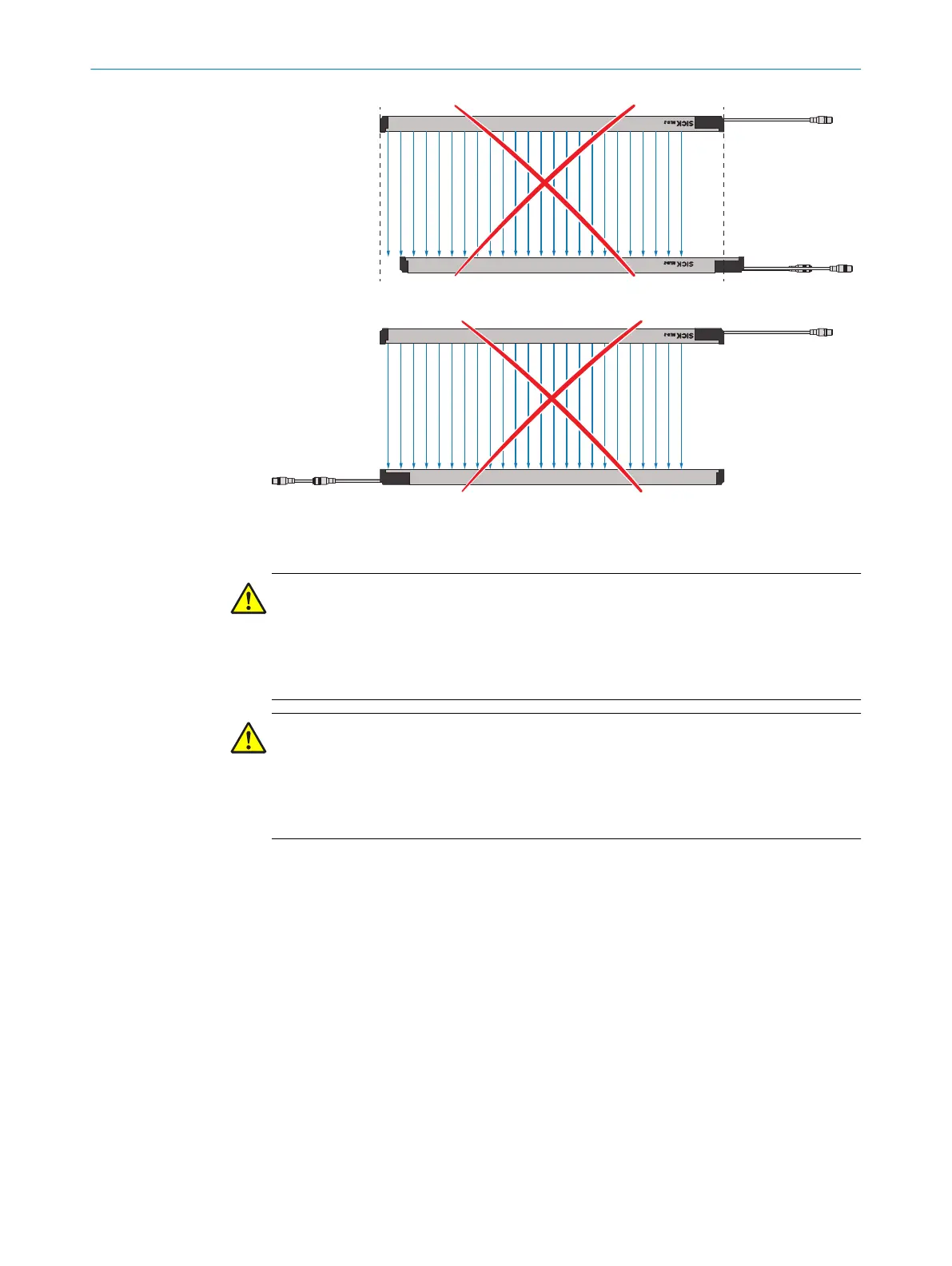

Figure 29: Examples for incorrect mounting
5.3.1 Mounting the QuickFix bracket
CAUTION
Protruding screws!
Protruding screws could cause injuries.
b
Select the length of the M5 screws so that no injuries from protruding screw parts
are possible.
CAUTION
Pos
sible machine damage!
Excessive tightening torques may damage the bracket. If the tightening torques are too
low, the mounting of the MLG-2 is not secured.
b
Comply with the specified tightening torques.
The two mounting surfaces for the brackets of the sender and receiver must not be
angled mor
e than ± 2° to each other. If not possible, use the optional FlexFix bracket.
The QuickFix bracket consists of two parts, which are pushed into each other. The two
individual parts are connected using an M5 screw, and the sender or receiver is
clamped with form-fit clamping.
Mounting variations
•
Mounting on the side
•
Mounting on the back
5 MOUNTING
36
O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker 8025190/2020-01-13 | SICK
Subject to change without notice
