Display of results
1 2
211
2

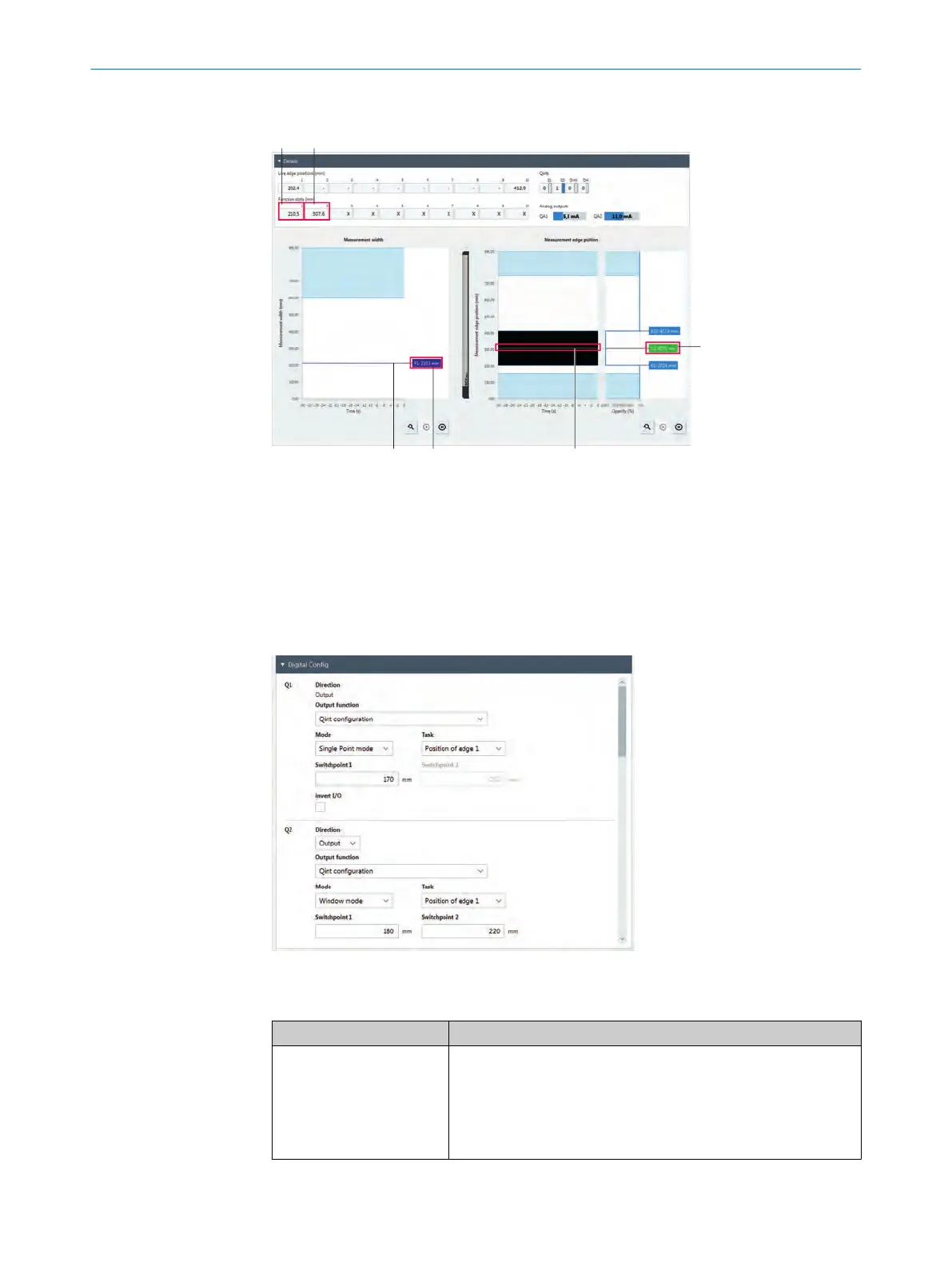

Figure 80: Results for “Functional configuration” examples, “Enhanced Sensing” page
1
Result for "F1: Calculation of the width between edges E1 and E10” function
2
Result for "F2: Calculation of the width between the center positions of edges E1 and
E10” func
tion
11.4.6 “Digital configuration” menu
You can parameterize the functions for switching outputs and switching inputs using the
“Di
git
al configuration” menu.
Figure 81: “Enhanced Sensing” page, “Digital configuration” menu
Table 49
: Digital configuration
Designation Description
Direction Depending on the hardware configuration, the direction is
•
Sw
itching output or off
•
Switching output, input or off
The “I/O neither input nor output” appears in offline mode if no
device is connected.
CONFIGURATION WITH SOPAS 11
8025190/2020-01-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker
103
Subject to change without notice
