SICK MLG-2 WebChecker User Manual

1 2
3
4

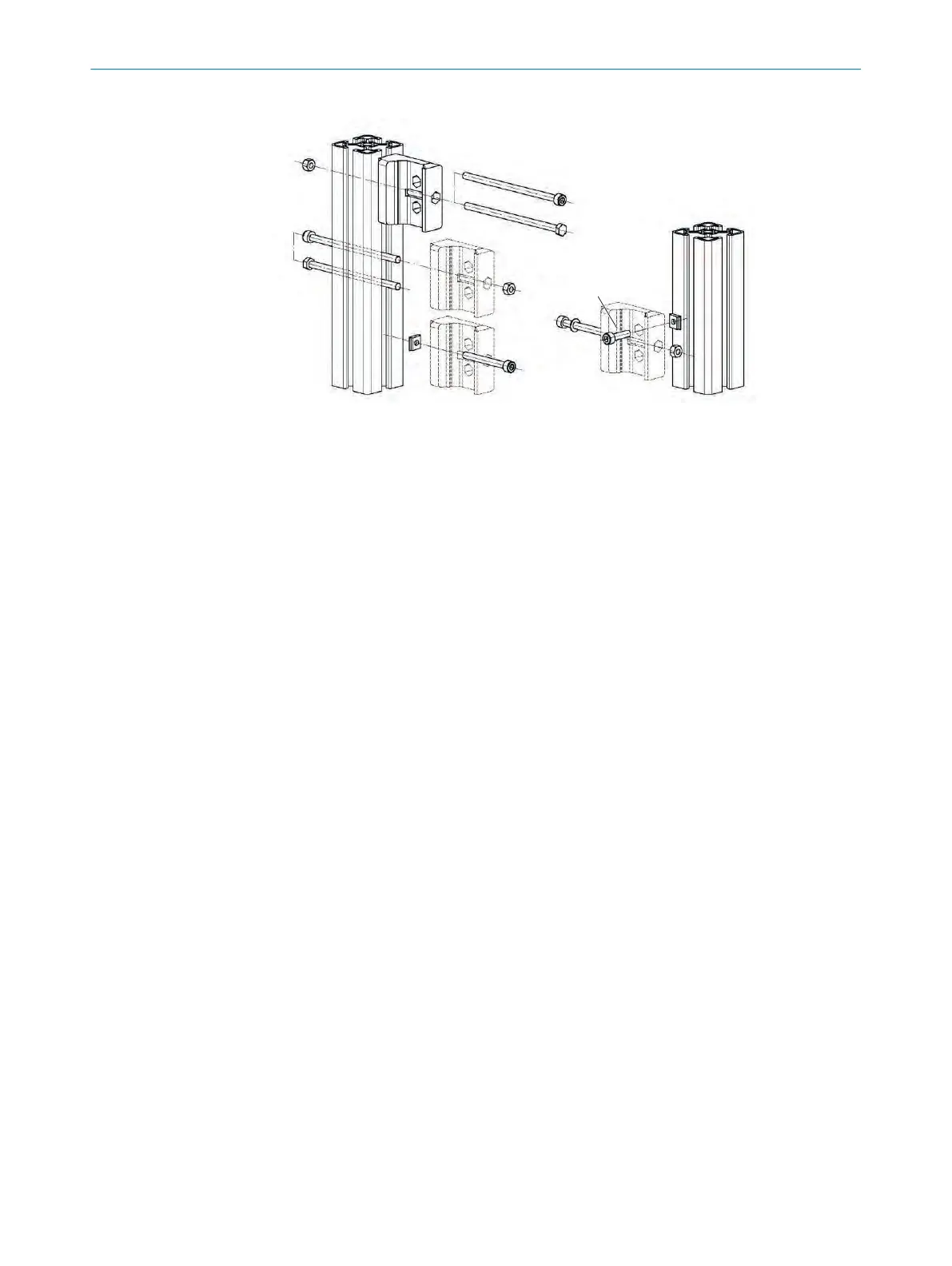

Figure 30: Mounting the QuickFix bracket
1
Side mounting (3 variants)
2
Mounting on the back
3
M5 screw for lateral mounting
4
M5 screw for rear mounting
Variants for side mounting with machine or profile frame
•
Fa
sten the M5 screw to the machine or profile frame through the QuickFix bracket.
A nut or threaded hole is required on the machine or profile frame.
•
Fasten the M5 screw to the QuickFix bracket through the machine or profile frame.
A nut is required for each QuickFix bracket.
Select an M5 screw of sufficient length for the bracket and machine and profile frame.
For rear mounting, select the length of the M5 screws so it is possible to clamp the
sender and the receiver in the bracket.
Required number of brackets depending on the device length:
•
MLG-2 ≤ 2 m: 2 senders 2 receivers
•
MLG-2 > 2 m: 3 senders, 3 receivers
QuickFix bracket for the fieldbus module
If y
ou are using the QuickFix bracket, you will need one more QuickFix bracket for the
fieldbus module.
MOUNTING 5
8025190/2020-01-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker
