SICK MLG-2 WebChecker User Manual

Mounting variations
•
Mountin
g on the side
•
Mounting on the back
1 2
3
4
3

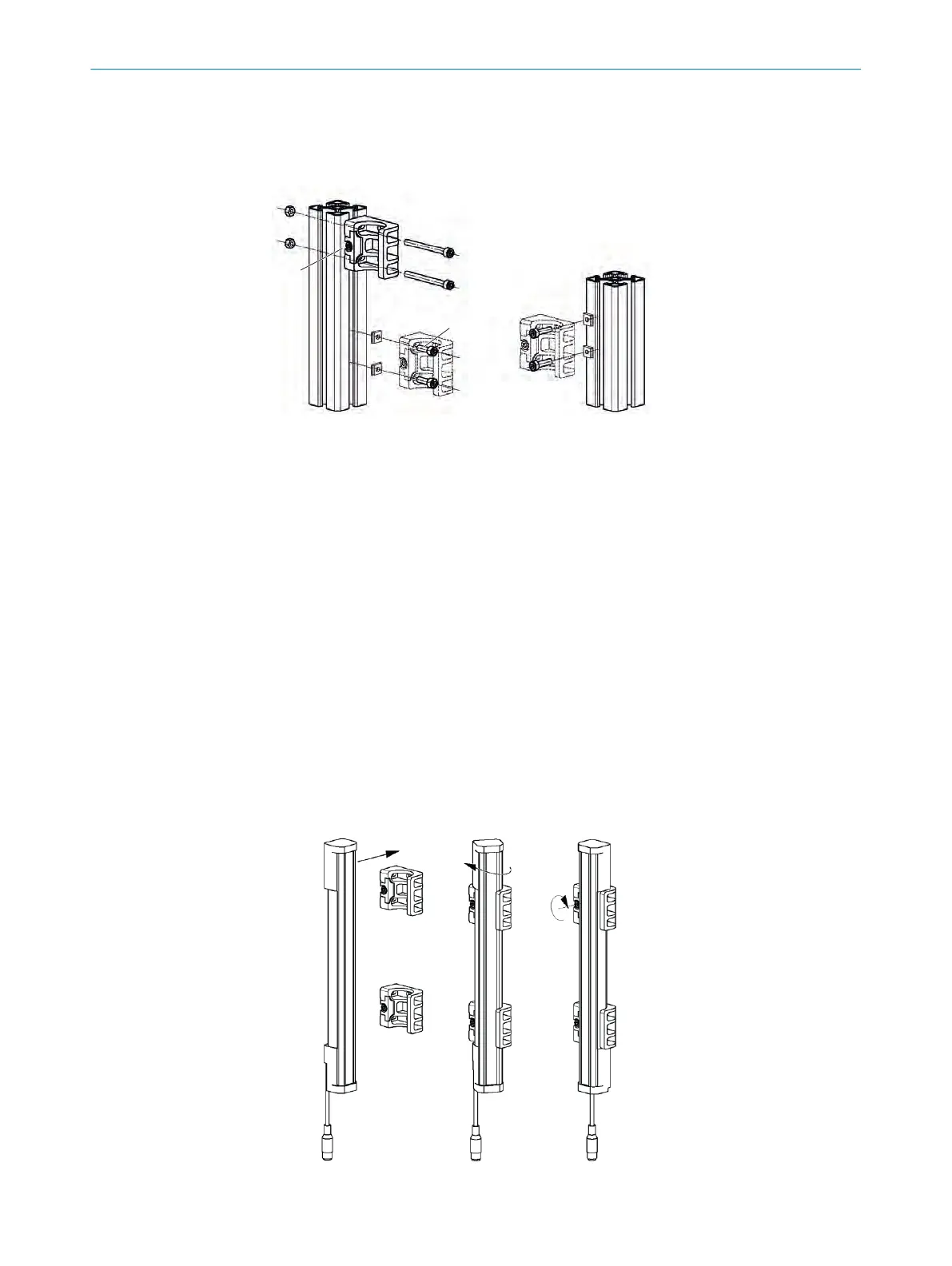

Figure 32: Mounting the FlexFix bracket
1
Side mounting (2 variants)
2
Mounting on the back
3
M5 screw
4
Screw for fastening
The M5 screws are used to mount to the machine or profile frame through the bracket.
A nut or t
hr
eaded hole is required on the machine or profile frame.
Select an M5 screw of sufficient length for the bracket and machine and profile frame.
Required number of brackets depending on the device length:
•
MLG-2 ≤ 2 m: 2 senders 2 receivers
•
MLG-2 > 2 m: 3 senders, 3 receivers
Mounting Flex-Fix bracket and sender and receiver
1.
Mount br
ackets for the sender. Screw tightening torque: 5 to 6 Nm. All brackets
must be in alignment to be able to turn the sender.
2. Mount brackets for the receiver. Screw tightening torque: 5 to 6 Nm. All brackets
must be aligned in order to be able to turn the receiver.
3. Insert the sender and receiver into the brackets.
MOUNTING 5
8025190/2020-01-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker
39
Subject to change without notice
