1 2

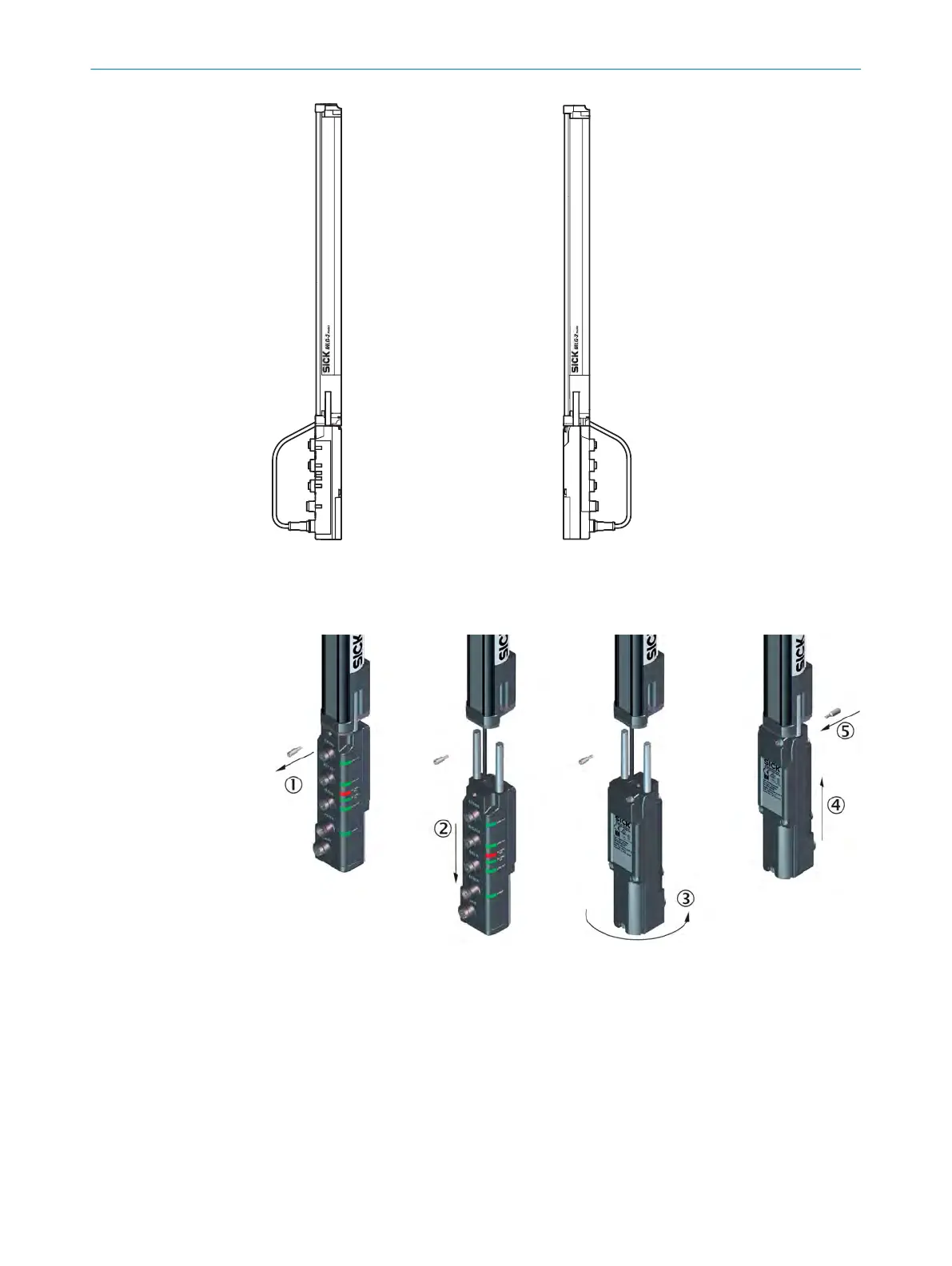

Figure 34: Mounting directions of the fieldbus module
1
Mounting with the connections to the front side
2
Mounting with the connections to the rear side
Figure 35: Turn the fieldbus module by 180°
1
Unscrew the Torx T20 mounting screw
2
Pull the fieldbus module downwards and away
3
Turn the fieldbus module by 180°
4
Insert the fieldbus module again
5
Tighten the mounting screw
MOUNTING 5
8025190/2020-01-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 WebChecker
41
Subject to change without notice
