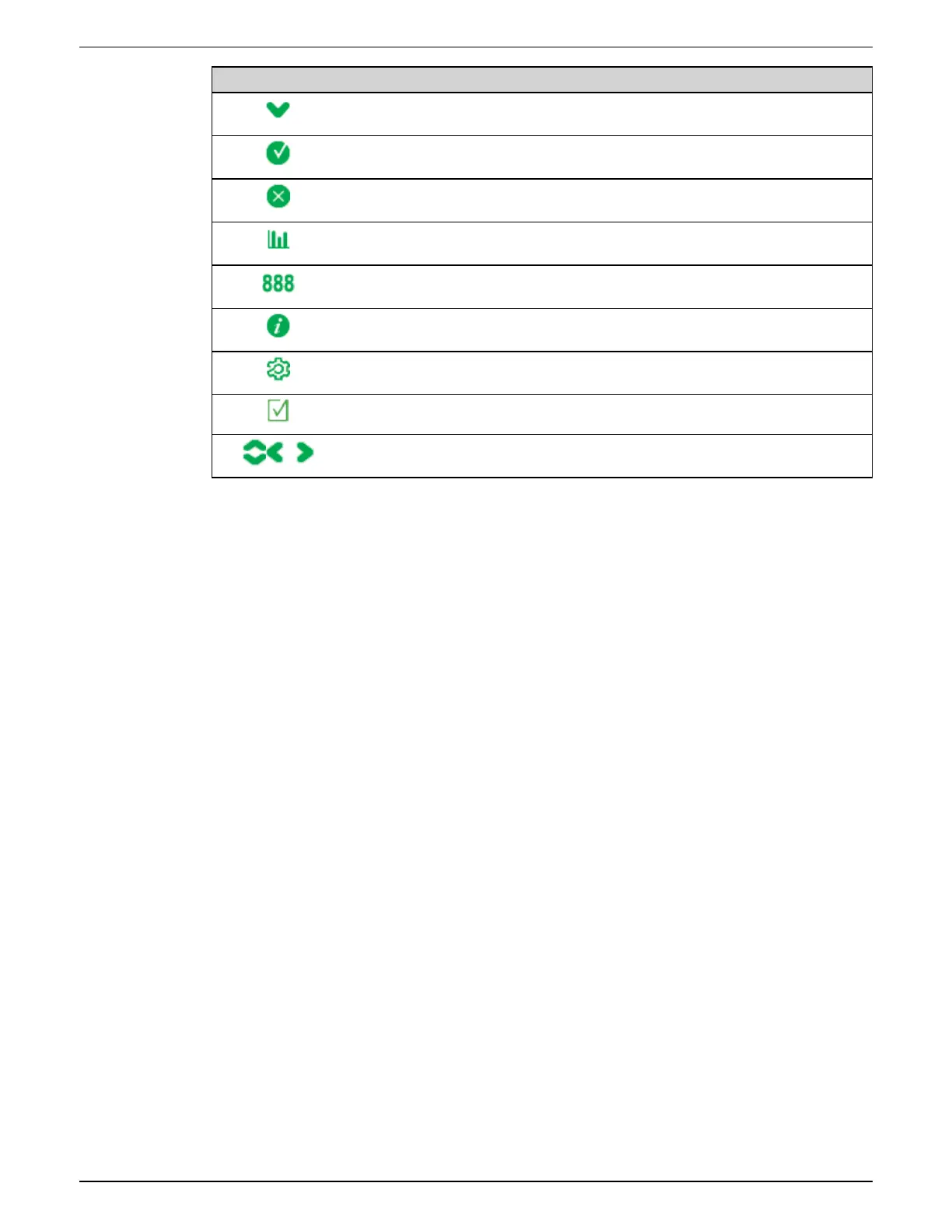

Icon Description
Tap Down to navigate menu items or screens.
Tap Select to confirm selection or change.
Tap Cancel to exit and return to previous screen.
Tap Graphic to view graphical representation of data.
Tap Numeric to view numerical representation of data.
Tap Info to display screen details.
Tap Edit to enter parameter values or select setting.
Tap Check Box to perform an action.
Tap double-arrow to select parameter.
More screens access
You can access additional screens.
Pressing the More icon opens a list of additional screens related to the active screen. Press
Cancel to close the list. If you do not select a screen, you are returned to the last data screen
displayed.
Overrange indication
If any value measured by the meter is too large to fit on the display, the meter initially reduces the
size of the text to try and make the value fit.
If the value is still too large to be displayed, the meter truncates the value starting with the least
significant digit and encloses the truncated value in a red box.
Interrupted display data
The meter updates the display data every second during normal operation.
If the display detects a data interruption, the following occurs:
•
Date/time information is cleared.
•
Display mode indicator is set to normal (NORM) mode.
•
Revenue lock icon indicates a locked state (green and closed).
•
Alarm icon indicates an unacknowledged high priority historic alarm (red outline bell).
•
All parameter labels and associated parameter data are cleared.
Display screen title bar and display icons are retained.
9810 series - User manual Display
7EN05-0390-08 166
