Power quality 9810 series - User manual
215 7EN05-0390-08
A Waveform recording triggered
B Waveform record captured at trigger
Delayed waveform capture
The meter’s Waveform Recorder modules support delayed waveform capture.
The Waveform Recorder module’s Record Delay Cycles setup register specifies how many
cycles to delay the waveform capture after the Record input is triggered. This is for capturing post-
trigger waveform data.

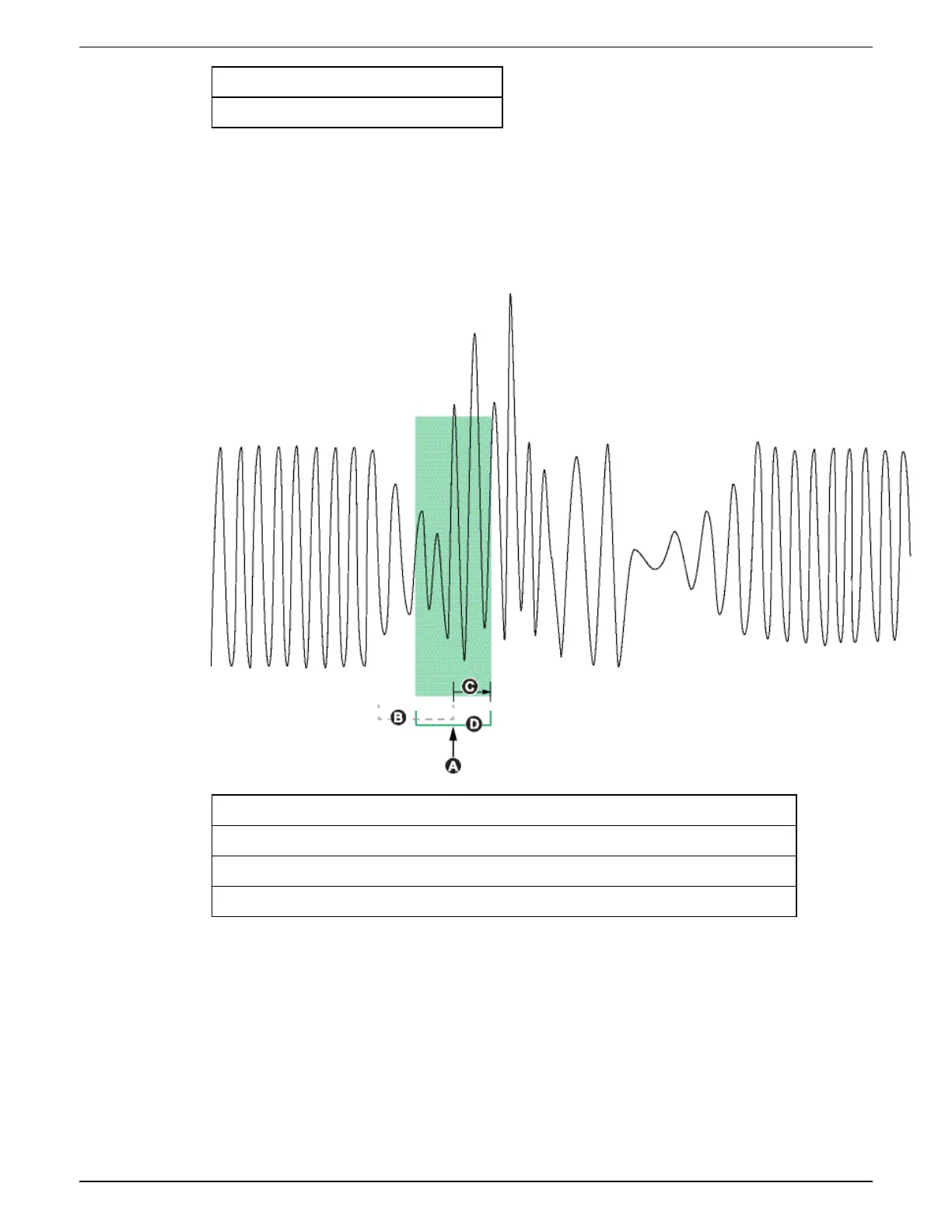

A Waveform recording triggered
B Waveform record if Record Delay Cycles was set to zero
C Delay period (number of cycles specified in Record Delay Cycles setup register)
D Delayed waveform capture recorded in waveform log
Extended waveform capture
The meter’s Waveform Recorder modules support extended waveform capture.
The Waveform Recorder module’s Pre-trigger Records setup register specifies how many pre-
event records are saved with each triggered recording. The Post-trigger Records setup register
specifies how many post-event records are saved with each triggered recording.
