Display 9810 series - User manual
171 7EN05-0390-08
NOTE: Your display may appear differently than those shown, depending on your meter’s power
system and display and localization settings.

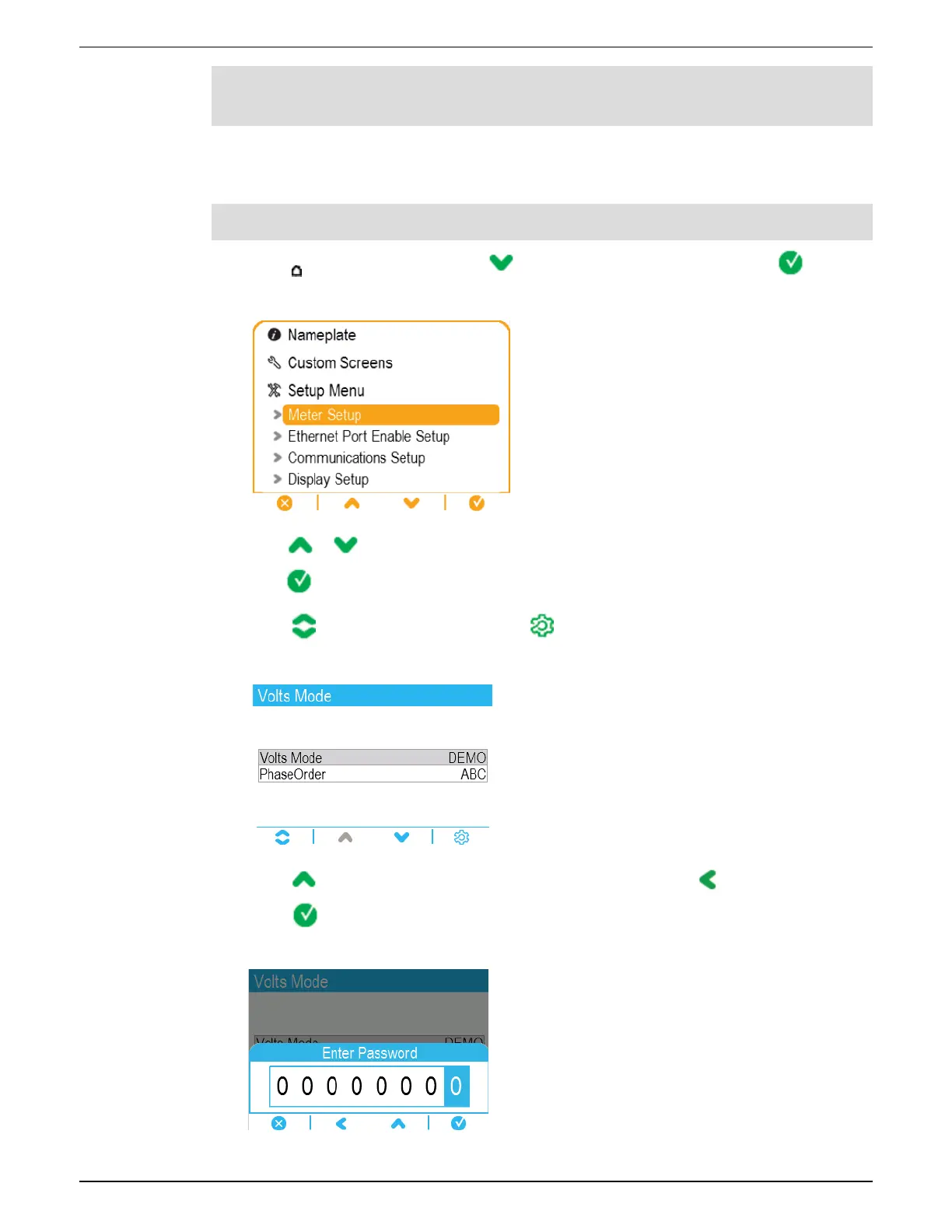

Example: Setting volts mode and PT/CT ratios
Use the display navigation icons to set your meter’s volts mode and PT ratios.
NOTE: Potential transformers (PT) are also known as voltage transformers (VT).
1.
Press to display the menu. Press until Setup Menu is highlighted. Press to display
the Setup Menu. The Setup Menu lists the setup selections on your meter.
2.
Press or to highlight the different setup menu selections. Highlight Meter Setup and
press to select the meter setup screens. The Volts Mode setup screen is displayed.
3.
Press to highlight Volts Mode. Press to edit the volts mode. The Enter Password
screen is displayed.
4.
Press to change the value of the highlighted digit (0 - 9). Press to go to the next digit.
Press to enter your password using the onscreen keyboard. The Volts Mode
configuration screen is displayed.
To Next Page
