Engineering via SICAM WEB
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 459
DC8-037-2.02, Edition 10.2017

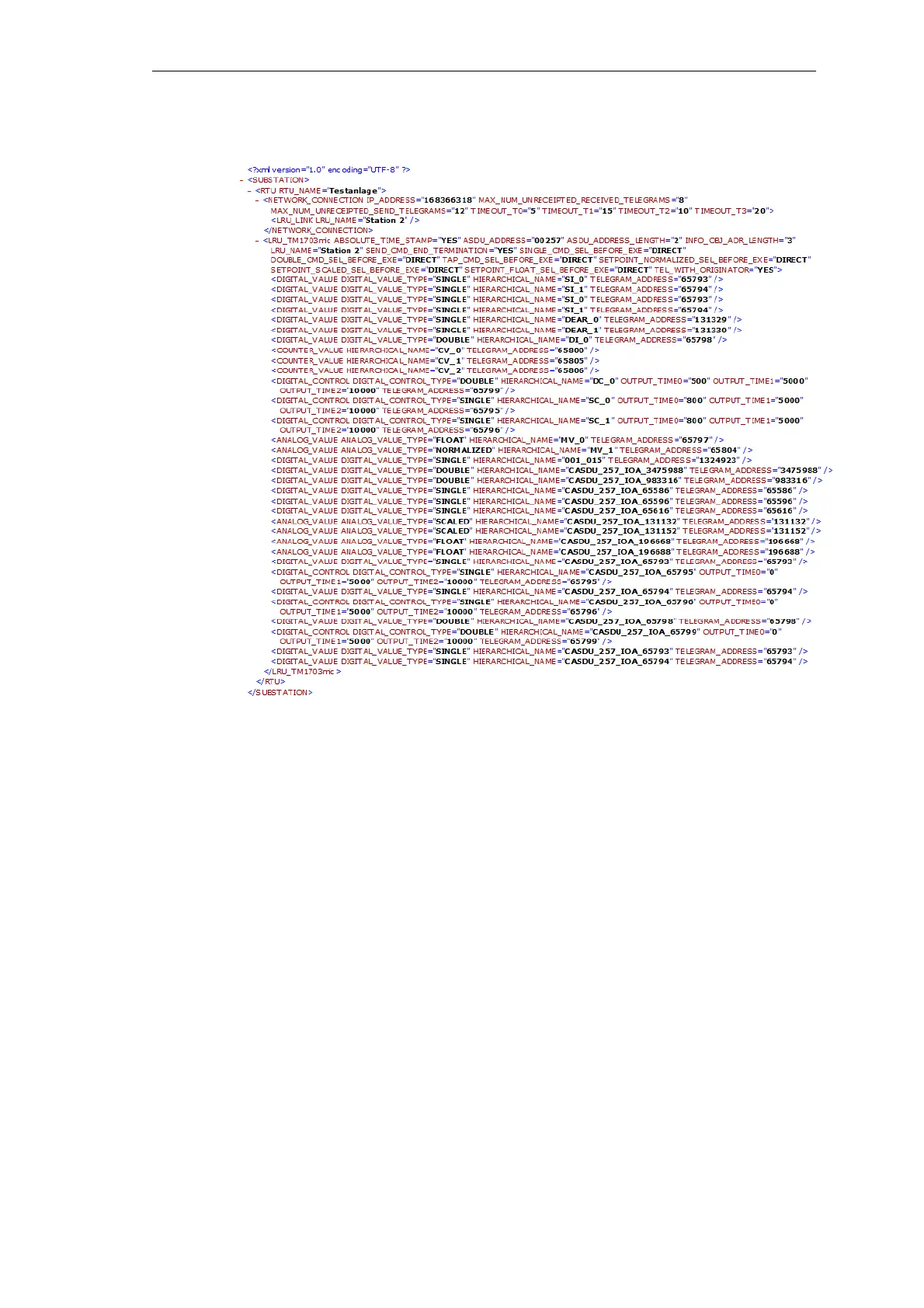

Example for a configuration
Parameter check
During the generation of the XML file the configured data points and assigned IL elements are
checked.
The XML file can be downloaded, if the following conventions are fulfilled:
• CASDU1 and CASDU2 of signals are corresponding to the setting on Master Module
• Signals assigned to the hardware pins of a DO with TI 45…TI 50
─ must use “Select before execute” in the same way
• Signals assigned to the hardware pins of an AO with TI 48…TI 50
─ must use “Termination” in the same way
• Signals from the application program with TI 45…TI 50 are treated as directly executed
─ if any signal is imported from the application program, all other signals from any source
with the same type identifier have to be configured as directly executed
• Signals from the application program with TI 48…TI 50 are treated as terminated
─ if any command signal is imported from the application program, all other signals from
any source with the same type identifier have to be configured as terminated
In case of error, the error indication is written into the XML file. This is stored on the SD card
in the directory \System\Downloads.
In order to read the XML file you must remove the SD card from the target device and put it in-
to a card reader installed on your engineering PC.
