Siemens SIMOCODE pro Function Manual

Tables, data records
3.3 Tables, PROFIBUS data records
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
171
Byte.Bit
Designation
Information
DP
diagnostics *)
Error No. **)
28.7
Fault - Trip 0/4 - 20mA<
AM
F
47
29.0 Fault - stalled rotor IM UM F 48
29.1
Reserved
29.4
Fault - Number of starts >
BU0 BU1 BU2(+)
F
52
29.5
Reserved
30.0
Faults - Miscellaneous
Fault - external fault 1
BU0 BU1 BU2(+)
F
56
30.1
Fault - external fault 2
BU0 BU1 BU2(+)
F
57
30.2
Fault - external fault 3
BU0 BU1 BU2(+)
F
58
30.3
Fault - external fault 4
BU0 BU1 BU2(+)
F
59
30.4
Fault - external fault 5
BU2(+)
F
60
30.5
Fault - external fault 6
BU2(+)
F
61
31.0 Fault - analog module open
circuit
AM F 64
31.1
Fault - test trip
BU0 BU1 BU2(+)
F
65
31.2 Fault - DM-F - safety-
related tripping
DM-F F 66
31.3
Fault - DM-F wiring
DM-F
F
67
31.4
Fault - DM-FL cross circuit
DM-FL
F
68
31.5
Reserved
*) The "DP Diagnostics" column contains the bits that are additionally available in the
diagnostics using PROFIBUS DP:
● F: Fault
● M: Status information
● W: Warning
● F9, F16: Fault types
See also Chapter Detailed messages of the slave diagnostics (Page 153).
**) Events - PRM error number (bytes):
If parameterization is not possible, the number of the parameter group (PRM group) that
caused the error is communicated here. You will find the parameter group in the parameter
data records 130 to 133.

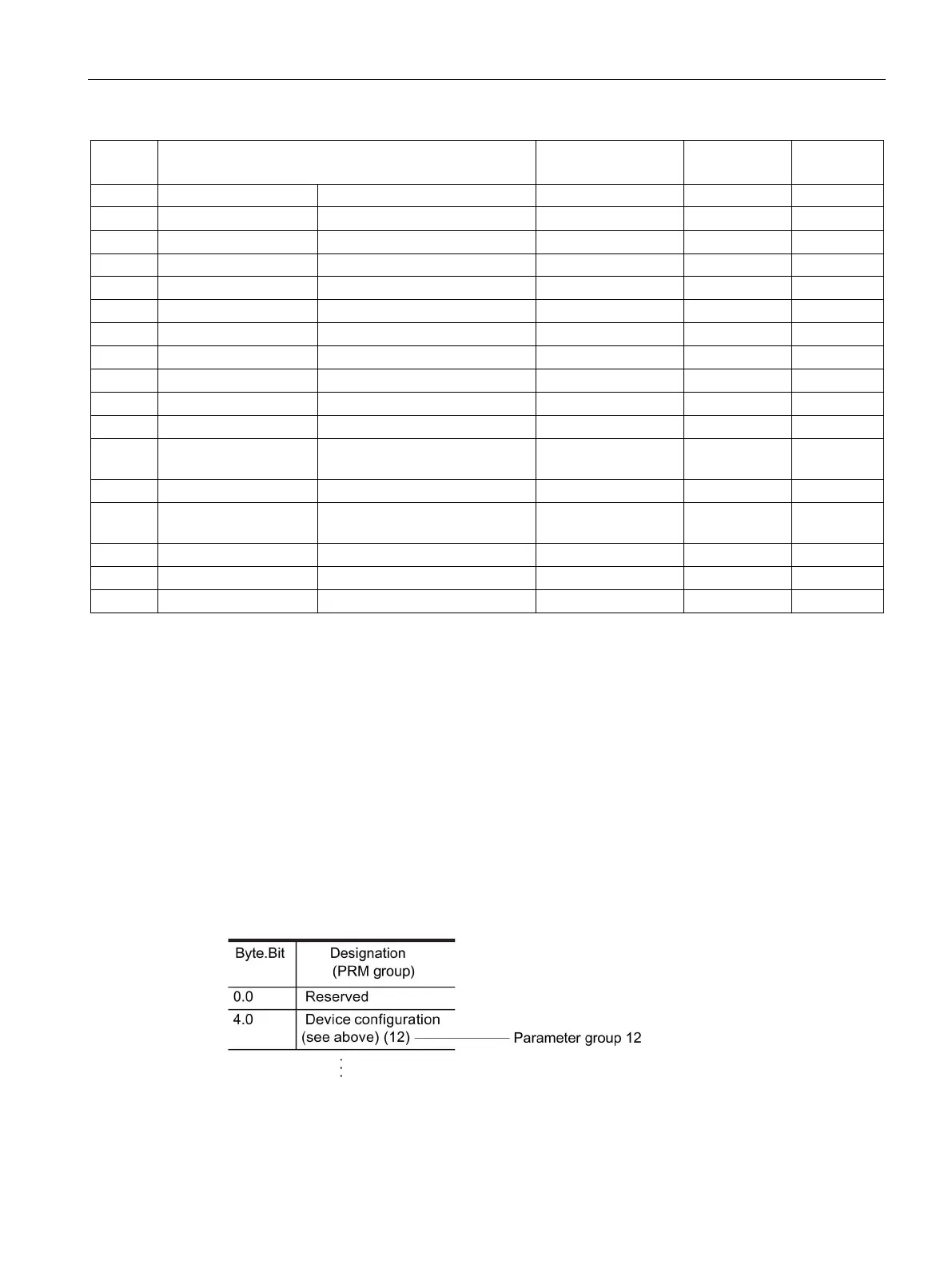

Figure 3-3 Example for parameter group
1) 3UF7510-1AA00-0 ground-fault module
