Siemens SIMOCODE pro Function Manual

Tables, data records
3.4 Tables, PROFINET data records
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
211
Node ID
Data type
Description
GG3
GG3 GP
462
Boolean
Acyclic send data 1.4
✓
✓
463 Boolean Acyclic send data 1.5 ✓ ✓
464
Boolean
Acyclic send data 1.6
✓
✓
465 Boolean Acyclic send data 1.7 ✓ ✓
Measured values
466
Float
Apparent power S
✓
—
467
Float
Phase voltage UL1-N
✓
—
468
Float
Phase voltage UL2-N
✓
—
469
Float
Phase voltage UL3-N
✓
—
470
Float
Power factor (cos phi)
✓
—
471
Float
Frequency
✓
—
3.4.1.2
Abbreviations and specifications
Abbreviations
See SIMOCODE pro – System Manual
(https://support.industry.siemens.com/cs/ww/en/view/109743957).
Specifications
The following specifications apply in the tables:
Table 3- 47 Table specifications (example)
Designation
Type
Range
Unit
Information
Reserved *)
Byte[4] *)
Max. current
I_max
Word 0 … 65535 1 % / I
s
*) Items in italics are not relevant (reserved) and must be filled with "0" when written to.
Parameters that can be changed during operation.
Event - PRM error number (bytes):
If parameterization is not possible, the number of the parameter group (PRM group) that
caused the error is communicated here.

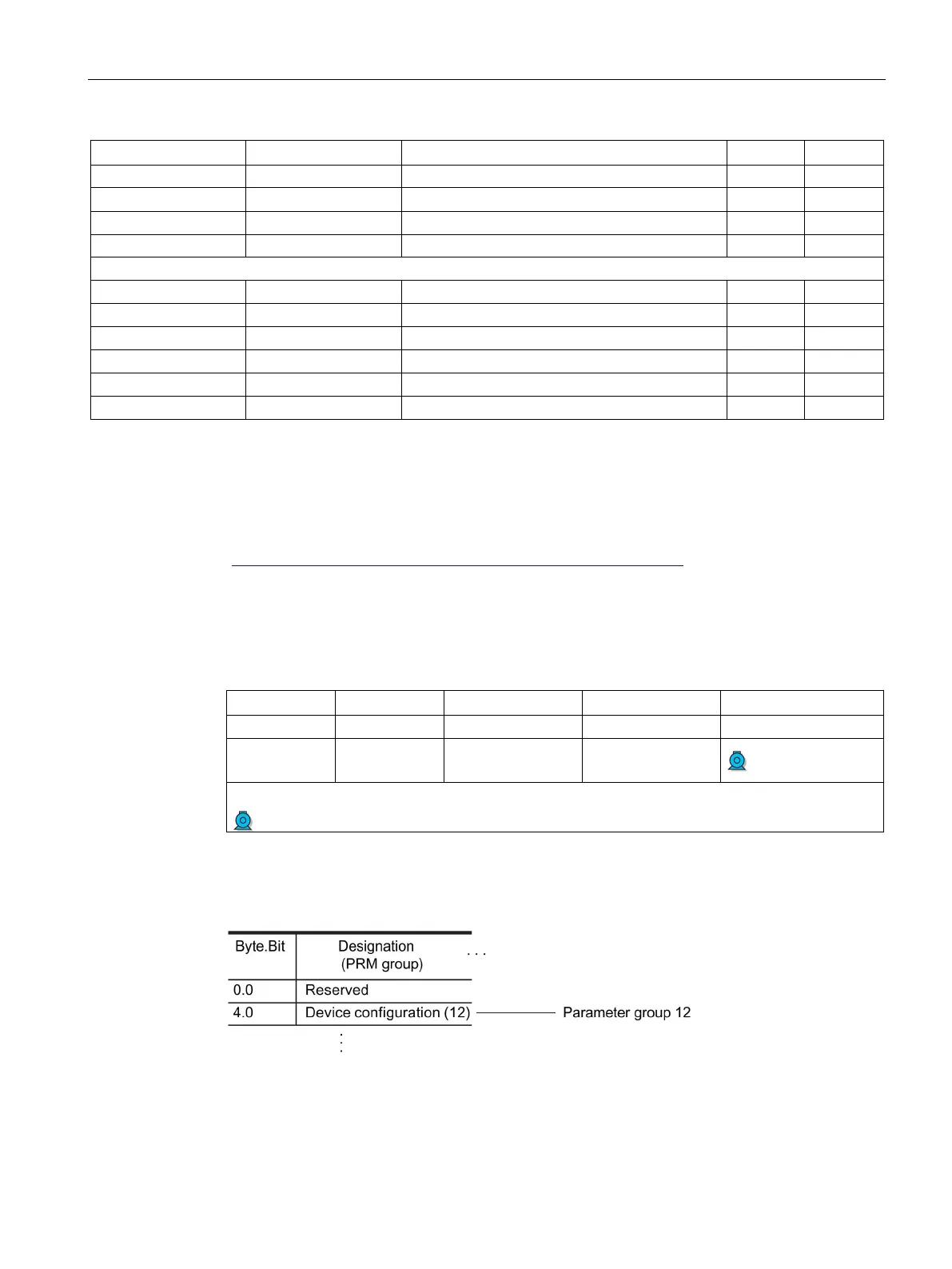

Figure 3-4 Example for parameter group
