Communication
2.1 PROFIBUS communication
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
23
Status information - definition
The status information communicates the detailed status of SIMOCODE pro.
If SIMOCODE pro is operated downstream from a Y-Link (module for connecting
single-channel DP slaves to S7-400H), the so-called H_STATUS is also signaled
(see Fig. "Structure of H_STATUS").
Status information - configuration
The status information is configured as follows:

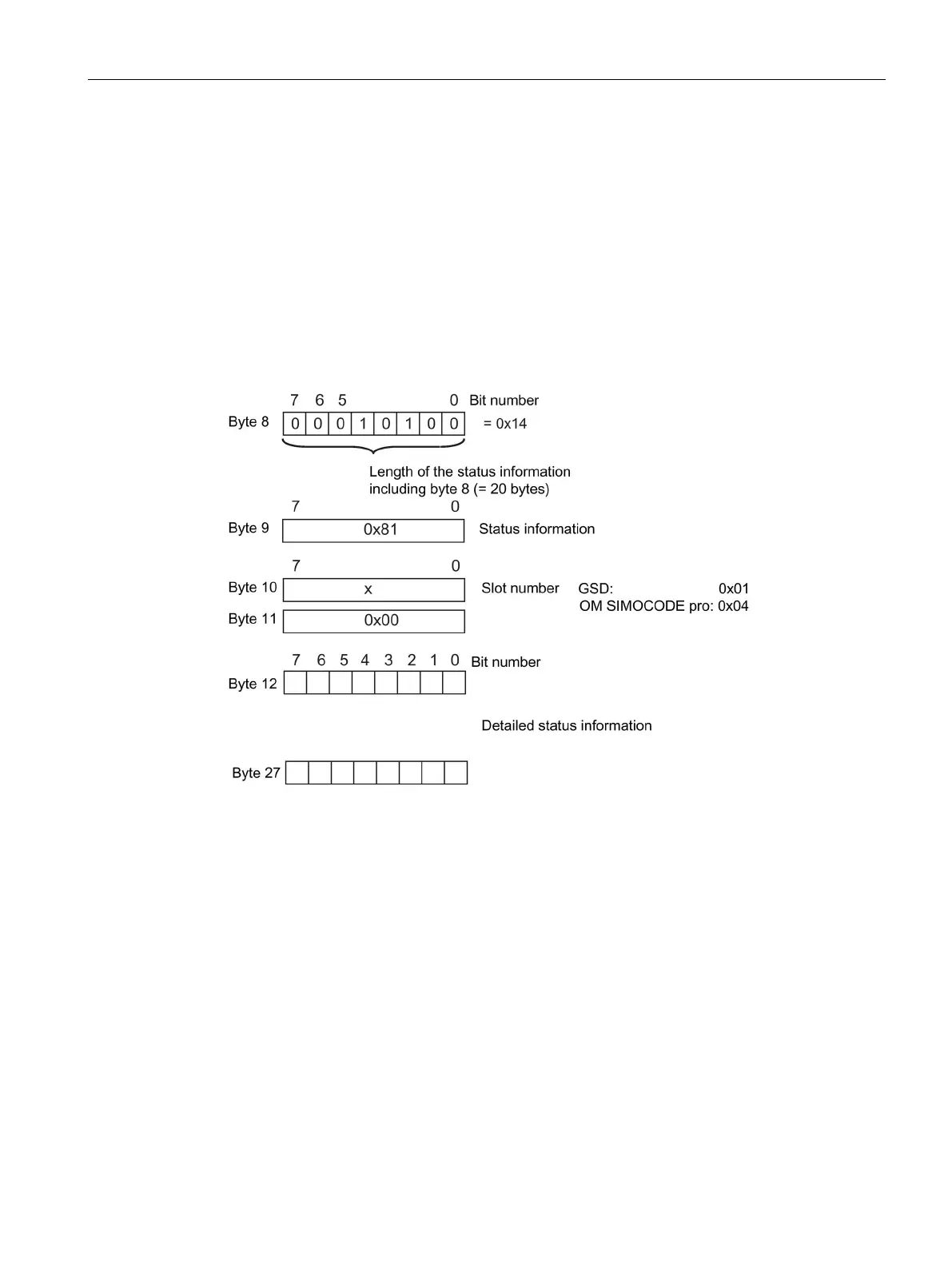

Figure 2-5 Configuration of status messages
You will find the detailed messages in Chapter Detailed messages of the slave diagnostics
(Page 153).
