Siemens SIMOCODE pro Function Manual

Communication
2.1 PROFIBUS communication
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
25
Channel-related diagnostics - definition
Channel-related diagnostics is a detailed version of the identifier-related diagnostics. It
supplies information about the device faults of SIMOCODE pro.
Channel-related diagnostics - configuration
Channel-related diagnostics is configured as follows:

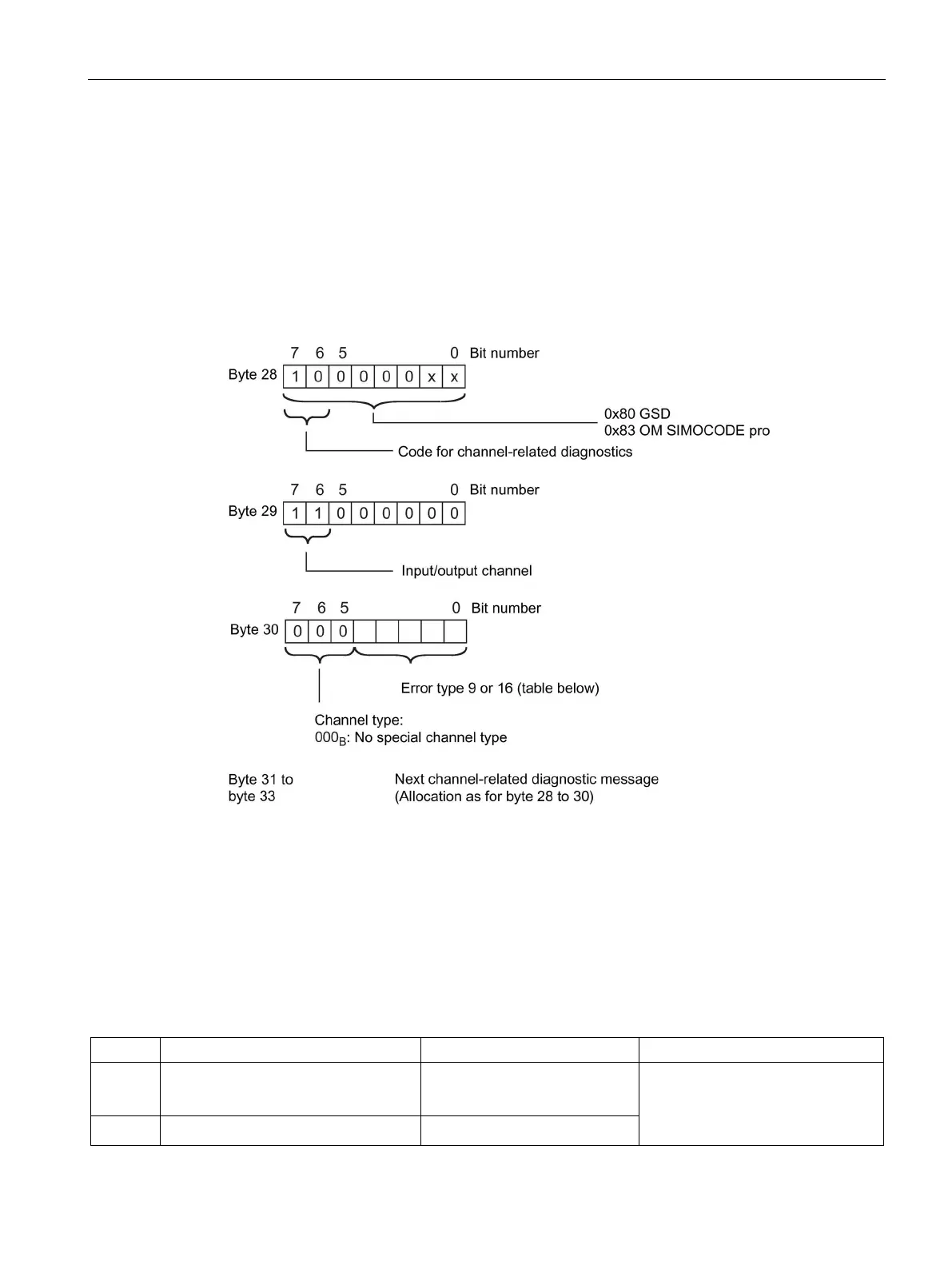

Figure 2-7 Configuration of the channel-related diagnostics
The block for the channel-related diagnostics, which has a length of 3 bytes, is either missing
(if there is no channel-related diagnostics) or is available once or twice.
Fault types
The diagnostic message is output on channel 0.
Table 2- 7 Fault types
No.
Fault type
Meaning / cause
F9 01001: Error
• Internal fault / device fault
• Error during self-test
Precise information:
See Chapter Data record 92 -
Device diagnostics (Page 165).
F16 10000: Parameterization error
• Incorrect parameter value

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
