Siemens SIMOCODE pro Function Manual

Communication
2.3 Modbus communication
SIMOCODE pro - Communication
Function Manual, 11/2018, A5E40508495002A/RS-AC/003
99
Access to memory areas
In SIMOCODE pro, only two memory areas are used, one each for addressing the bit
information and the register information.
The function codes for bit information (01, 02, 05, 15) thus always access the bit memory
area. The function codes for register information (03, 04, 06, 16, 23) always access the
register memory area.
The distinction as to whether information is read-only (r) or read/writeable (r/w), can be seen
from the dataset tables (see Section Modbus RTU data tables (Page 277)).

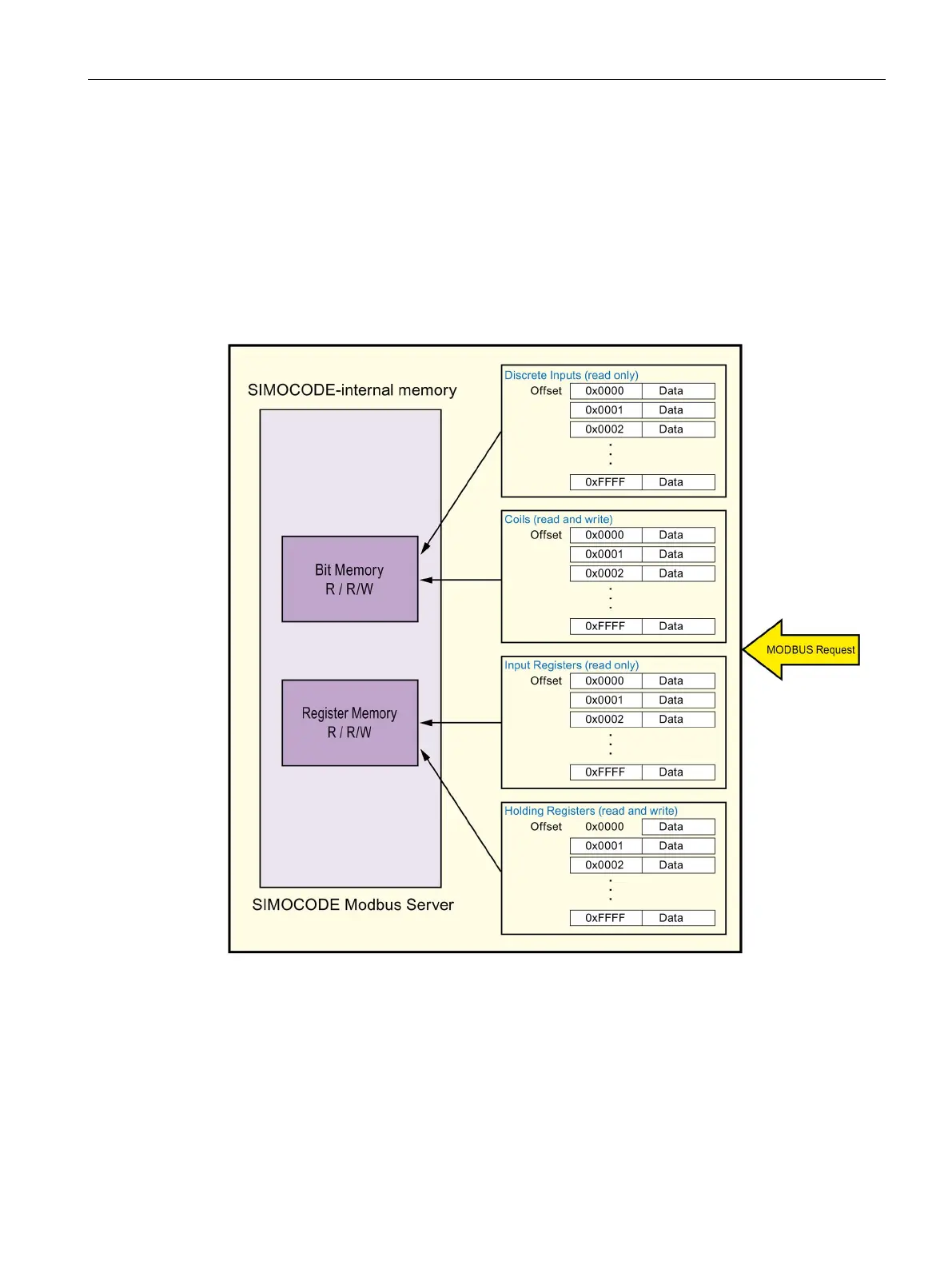

Figure 2-31 Memory areas used in SIMOCODE pro

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
