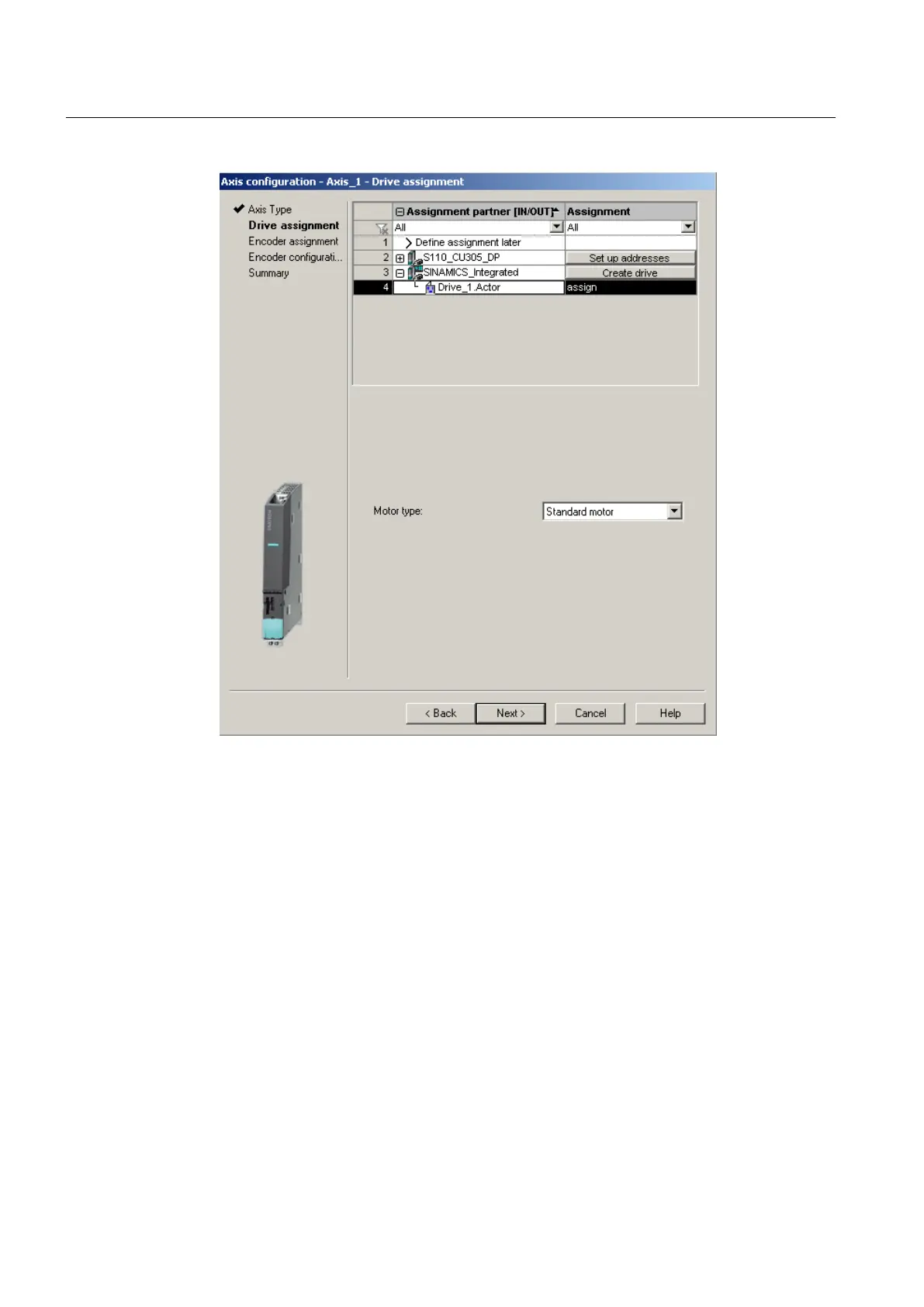

Figure 5-21 Assigning a drive
The following setting options are available for the drive assignment:
● Assign drive
Assigning a previously configured drive
● Define assignment later
The axis is to be assigned to a drive at a later point in time.
This enables
– The PLC and motion control functions to be completely configured by a programmer
even without drive know-how using technology objects (e.g. TO axis) and loaded to the
device.
– The drives to be separately configured and optimized by a drive expert.
– The technology objects to be symbolically assigned later to the drive objects via an
interconnection dialog box.
Commissioning (software)
5.6 Creating and testing an axis
SIMOTION D410
114 Commissioning Manual, 04/2014
