5.9 Symbolic assignment of I/O variables (PROFIdrive message frame /
drive parameters)
5.9.1 Assignment to the PROFIdrive message frame of the TO axis
I/O variables which you require for purposes such as display and diagnostics can be assigned
from the address list to individual components (status word, for example) via the assignment
dialog of the PROFIdrive message frame. Only components suitable for the data type of the I/
O variable are displayed. If no data type is specified at the I/O variable, this is determined via
the assignment partner after the selection.

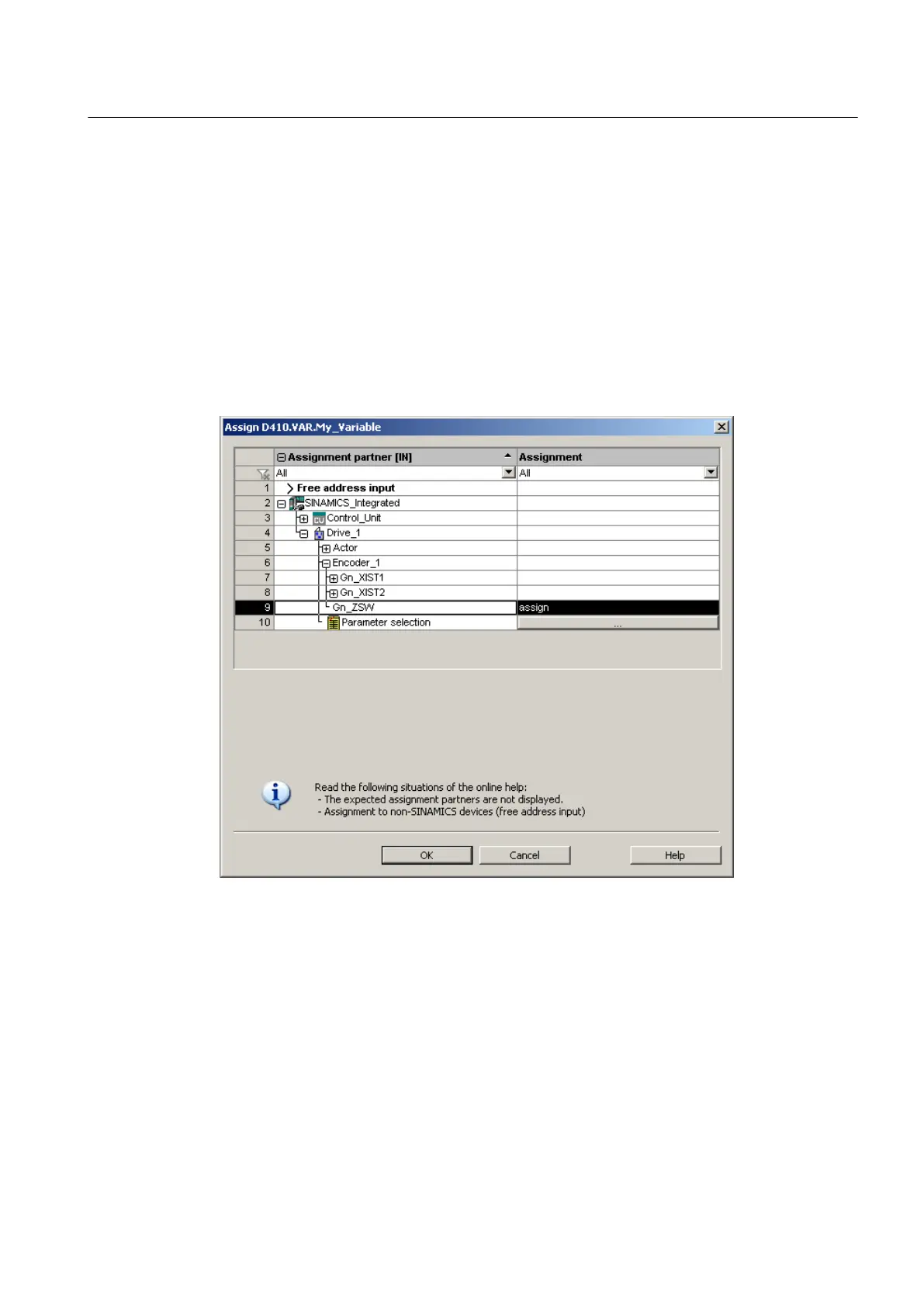

Figure 5-27 Assignment of I/O variables to the PROFIdrive message frame
5.9.2 Assignment to drive parameters
I/O variables from the address list can be assigned to drive parameters using the assignment
dialog. Only parameters suitable for the data type of the I/O variable are displayed. If no data
type is specified at the I/O variable, this is determined by the parameter selection.
An extension of the standard message frame is created automatically for the transfer of the
parameters to/from the drive.
