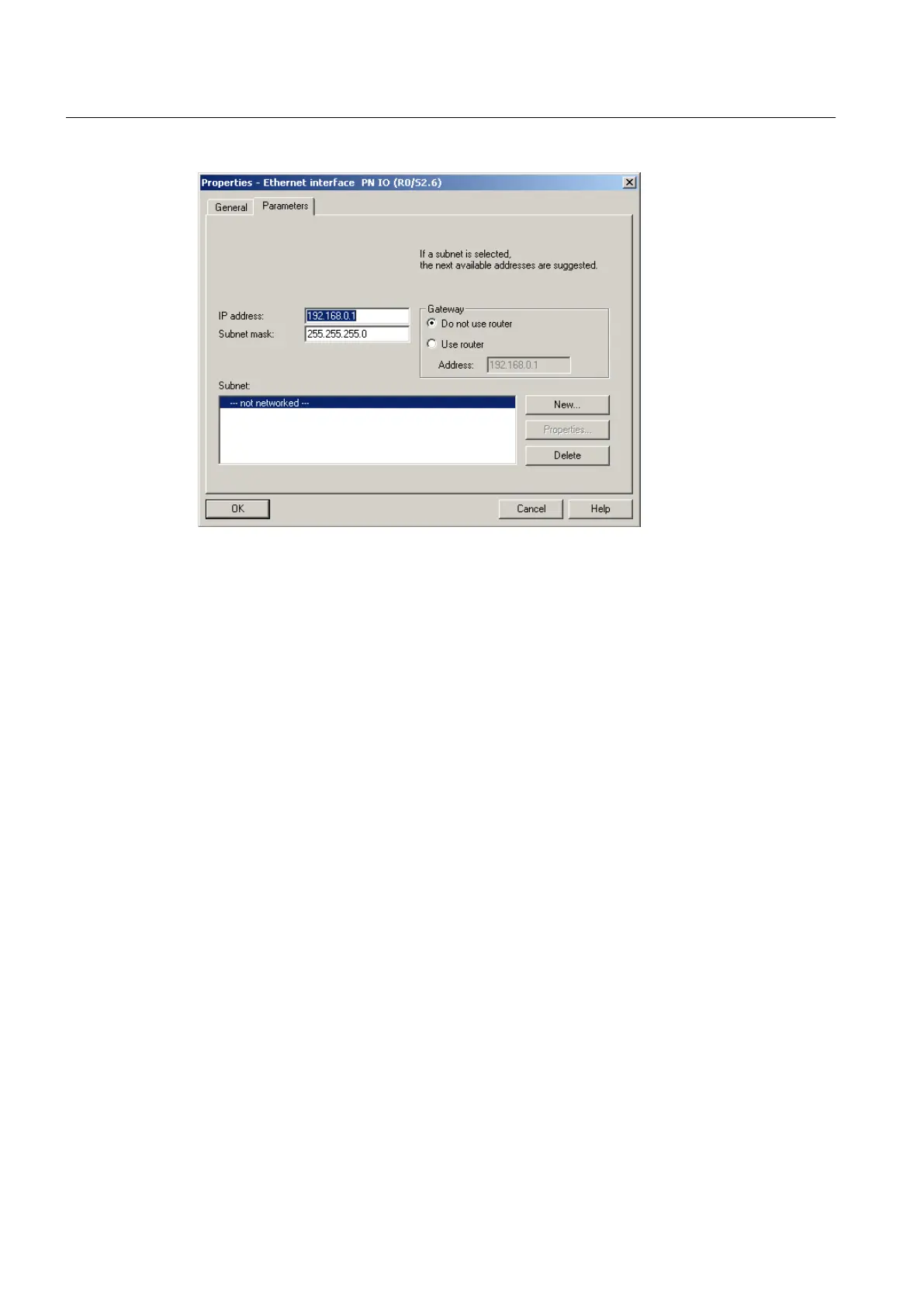

Figure 4-2 Properties of the Ethernet interface
Program the following parameters in the "Properties - Ethernet Interface" dialog box:
1.
Click "New".
The "New Subnet Industrial Ethernet" dialog box opens. Rename the new subnet, or accept
the default name by clicking "OK".
2. Select the new Ethernet subnet which is now displayed in the "Properties - Ethernet
Interface" dialog box.
3. Define your addresses in the "IP address" and "Subnet mask" fields of the "Properties -
Ethernet Interface" dialog box. Change to the "Network node" field and define whether you
are going to use a router and, if yes, enter the router address. Confirm with "OK".
4.2.3 Configuring the PROFIBUS PG/PC interface (only for D410 DP)
Prerequisites
The following requirements must be satisfied in order to configure the PG/PC interface:
● You have completed the "Insert SIMOTION device" dialog box with "OK".
● A PG/PC has not yet been configured in the project.
If these prerequisites have been satisfied, you can configure the interface for the PG/PC
connection in the "Interface selection ‑ D410" dialog box.
Parameter assignment / addressing
4.2 Creating a project and configuring the communication
SIMOTION D410
56 Commissioning Manual, 04/2014
