Replacing the fan
How to replace the fan:
1.
Remove all connectors at the front of the modules (X120, X121, X124).
2. Use a flat-bladed screwdriver to release all 7 snap hooks on the plastic enclosure for the
SIMOTION D410 (3 on the left, 3 on the right, one at the bottom).

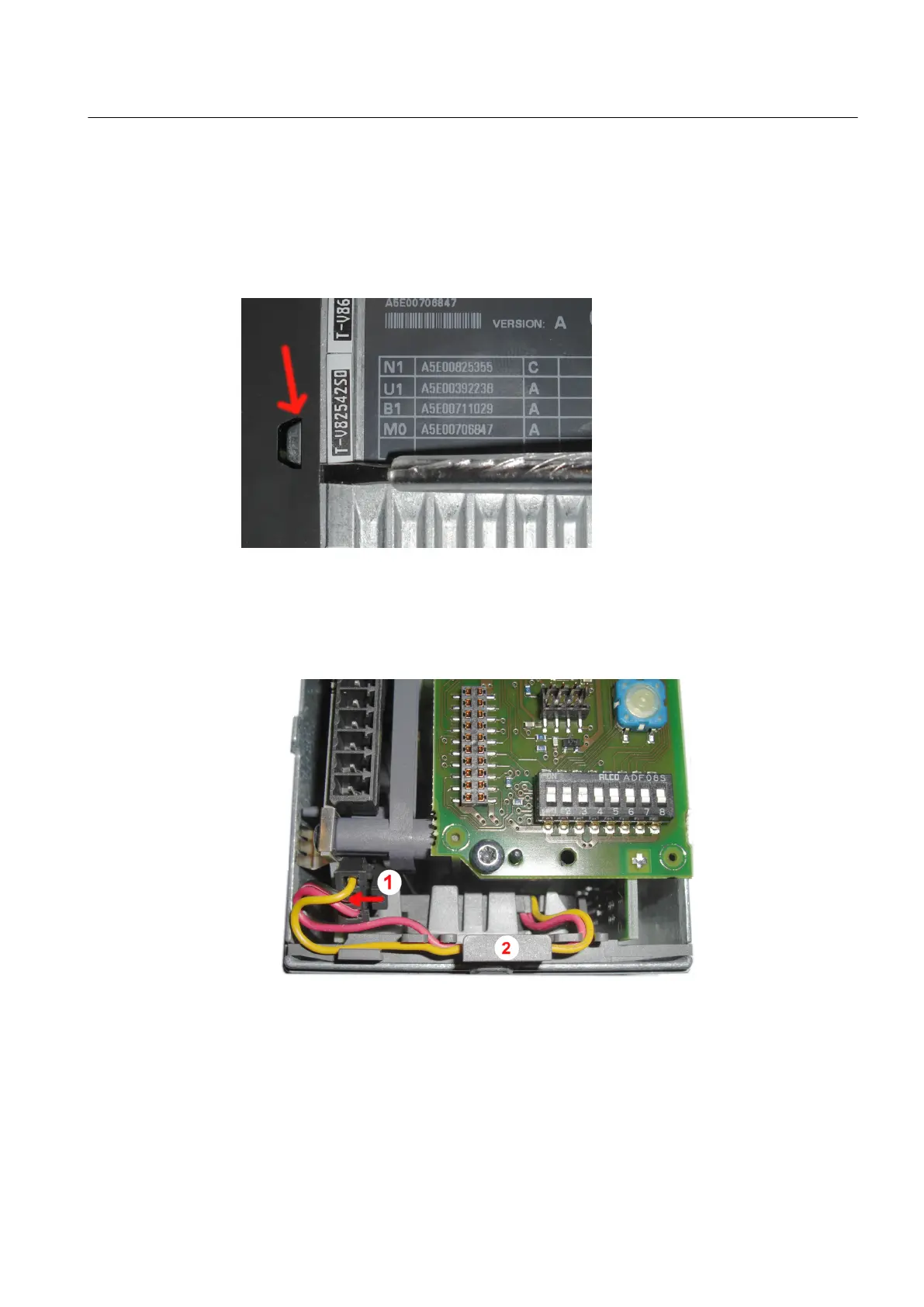

Figure 6-2 Releasing the snap hooks (example)
3. Remove the plastic enclosure.
The fan is located underneath the module.
4. Release the fan connector at the bottom left-hand side. To do this, press the release and
the connector together gently and remove the connector.
1 Release the fan connector.
2 Remove the fan using the plastic lug.
Figure 6-3 D410, open
5. Carefully remove the fan from the middle plastic lug.
6. Insert the new fan and reattach the connector.
Maintenance and service
6.2 Replacing modules (spare part scenario)
SIMOTION D410
Commissioning Manual, 04/2014 173
