Procedure
1. In
the "Interface selection - D410" dialog box, select the entry "Ethernet PNxIO (X200)" as
the interface selection.

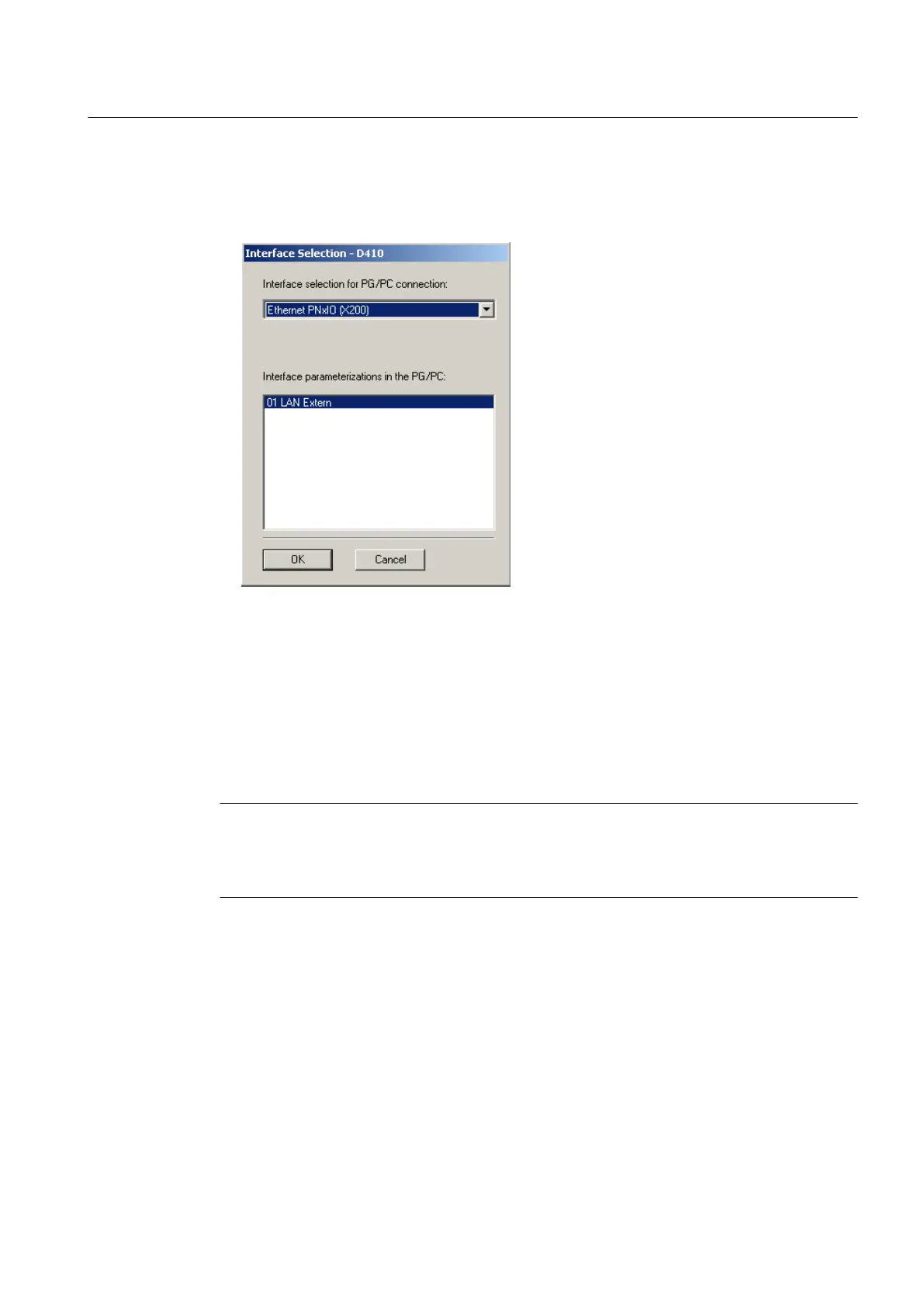

Figure 4-4 Selecting the Ethernet interface
2. Select the interface parameter assignment that you would like to use to go online, and
confirm with "OK".
The dialog box is closed, the SIMOTION D410 is created in the project navigator, and HW
Config is opened automatically (if parameterized).
An Ethernet subnet is created automatically.
The PG/PC is now connected to the SIMOTION D410 via Ethernet. You can configure and
parameterize your system.
Note
Please
make sure that the PG/PC and SIMOTION D410 are located in the same subnet and
that S7 online access has been activated (PG/PC connection must be yellow and bold in
NetPro).
Inserting a further SIMOTION device
If
you insert a further SIMOTION device using "Insert SIMOTION device", the PG/PC interface
selection dialog box is not displayed. The second SIMOTION device is automatically
connected to the PG/PC via Ethernet and a new unique IP address (last digit + 1 up to 255)
is calculated.
Parameter assignment / addressing
4.2 Creating a project and configuring the communication
SIMOTION D410
Commissioning Manual, 04/2014 59
