1. Establish an online connection to the SIMOTION D410.
2.
Right-click the SIMOTION device in SIMOTION SCOUT.
3. Select the "Target device > Device Diagnostics" command from the shortcut menu.
The address is displayed as follows, for example:

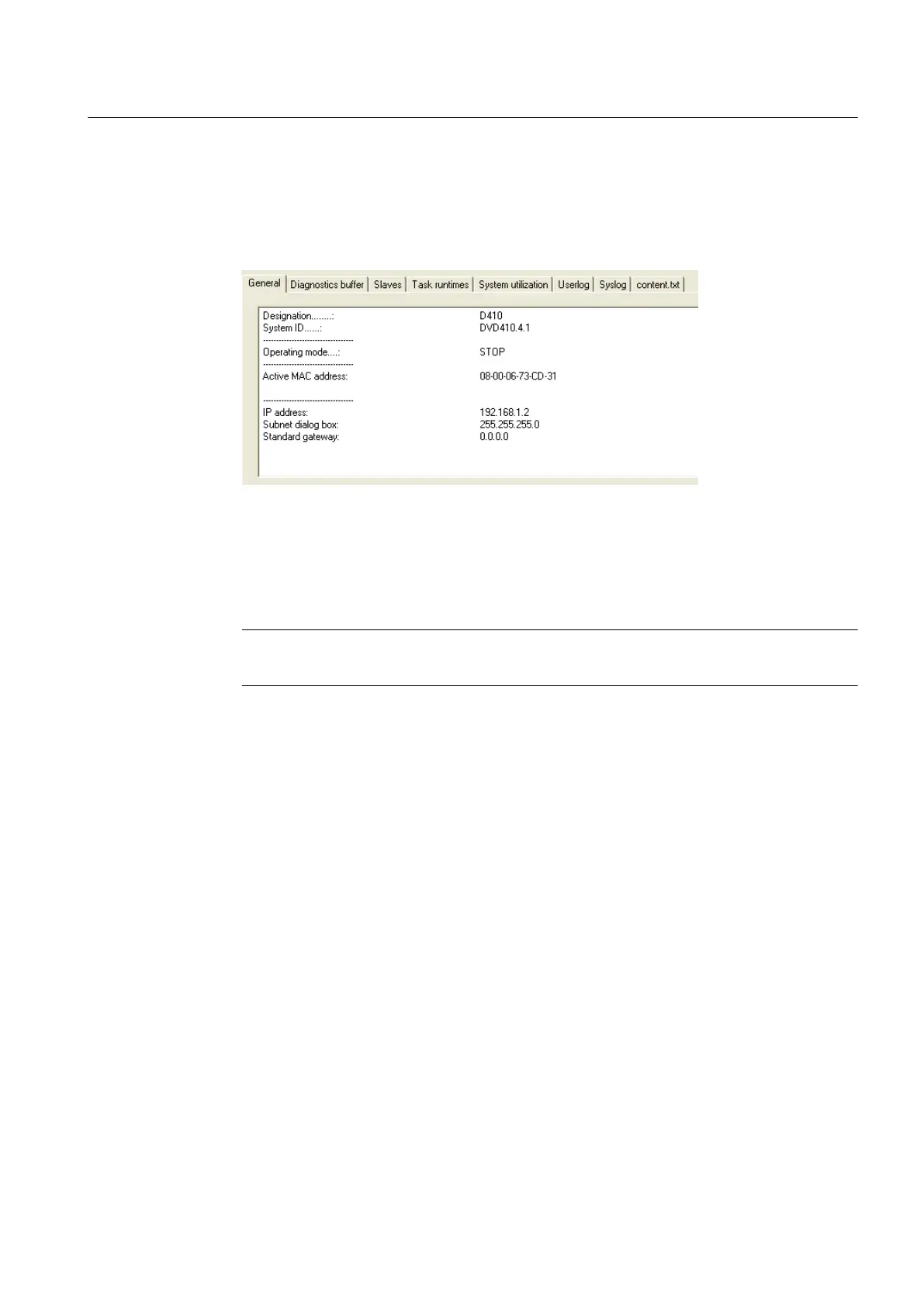

Figure 4-6 Reading the IP address
As an alternative, you can determine the IP address as follows:
●
By accessing "Project" > "Reachable nodes" in SIMOTION SCOUT or
● By calling "Target system" > "Ethernet" > "Edit Ethernet node..." in HW Config and browsing
to "Online reachable nodes".
Note
The MAC address is available on the rating plate on the front panel of the module.
Changing the IP address, device name, network gateway
Set
the IP address, the subnet mask and, if necessary, the data for a gateway (router address)
in order to enable communication over PROFINET with SIMOTION D410.
If you want to change the properties in the PROFINET subnet, you can change them using
the "Reachable nodes" function in SIMOTION SCOUT or in the HW Config.
The "Reachable nodes" function in SIMOTION SCOUT is described in the section titled
"Initializing SIMOTION D410".
To configure and transfer the properties in HW Config, proceed as follows:
1. Open your project in SIMOTION SCOUT.
2. Open HW Config. Double-click the PROFINET interface to open the "Properties" dialog box.
3. Click "Properties". The "Properties - Ethernet Interface" dialog box opens.
4. Click "New". The "New Subnet Industrial Ethernet" dialog box opens. Rename the new
subnet, or accept the default name by clicking "OK".
5. Select the new Ethernet subnet which is now displayed in the "Properties - Ethernet
Interface" dialog box.
Parameter assignment / addressing
4.4 Configuring PROFINET (only for D410 PN)
SIMOTION D410
Commissioning Manual, 04/2014 69
