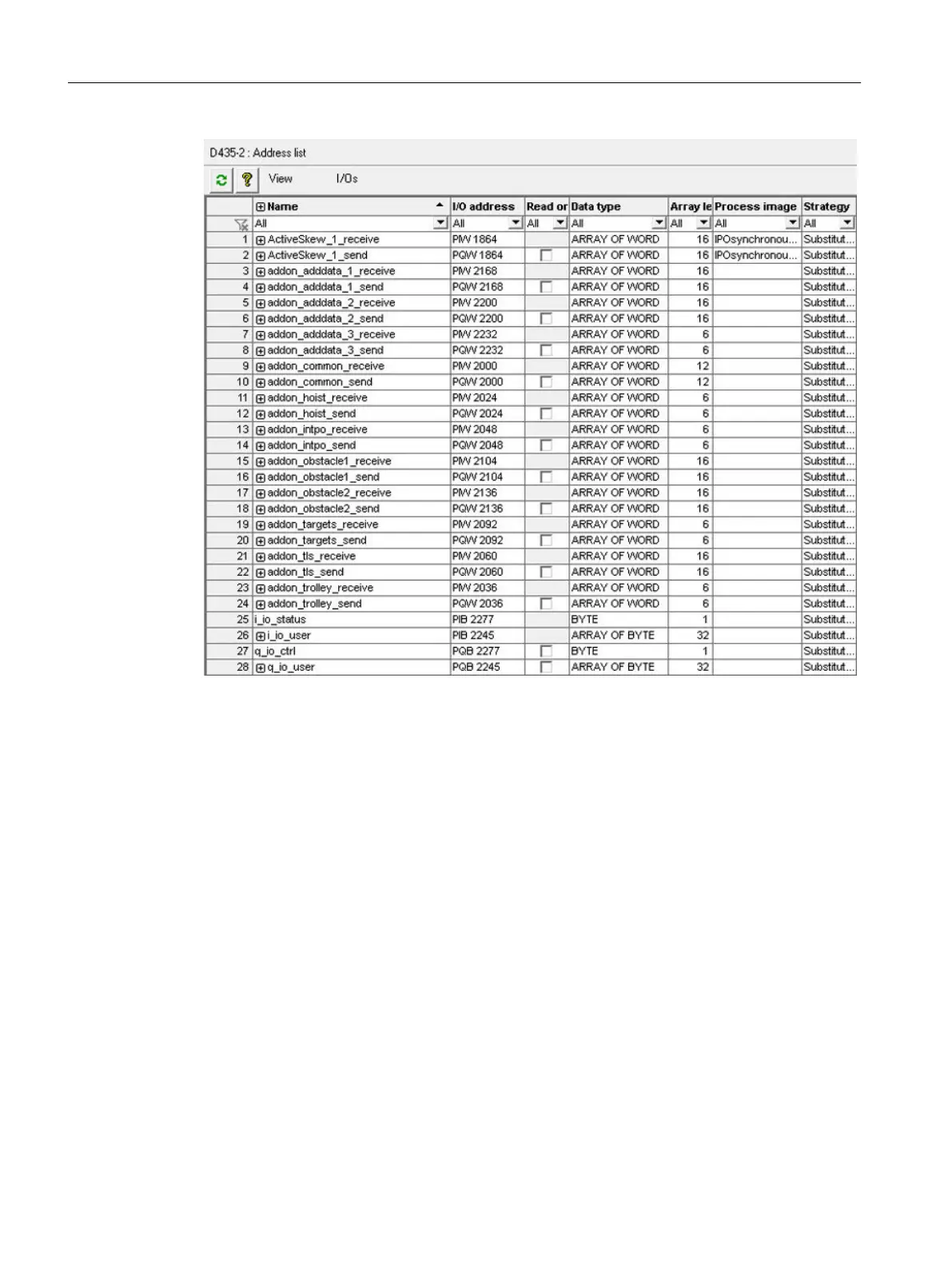

Figure 5-13 Address list in SCOUT (communication between SIMATIC S7 and SIMOTION)
To perform the copy operation, open the address list in the application project and select all the
I/O arrays. You can then copy these using the shortcut menu in the application project and
paste them into the first free line of the address list of the user project with Basic Technology.
The "ActiveSkew" address is only required if skew damping is to be implemented via an electric
axis (see Chapter Connection between skew damping technology object and DCC block TLS2
(Page 132)). The addresses "i_io_status", "i_io_user", "q_io_ctrl" and "q_io_user" are only
required if communication with the camera is established via PROFINET and not UDP.
Configuration
5.6 Copying the address list
SC integrated STS, GSU
