Help - F1
Pressing the "F1-Help" button opens another window that contains all keyboard commands for
scrolling and zooming in the diagram display.

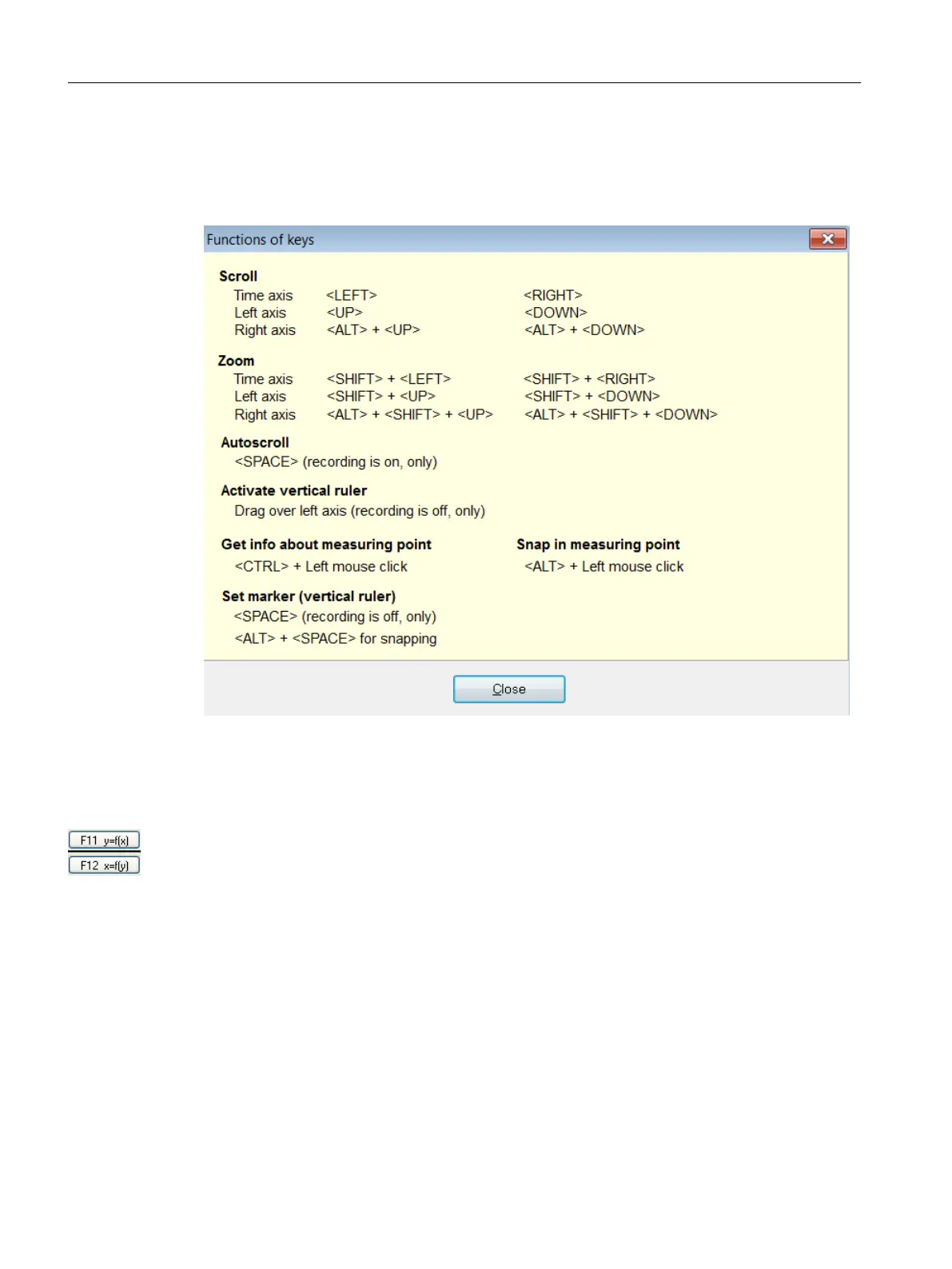

Figure 8-39 Diagram function, Help
8.7.3 x/y diagram
One of the two buttons can be used to change to the x/y diagram. This diagram shows the travel
curve of two drives in the x/y-plane, where the x axis represents the movement of the trolley and
the y axis the path of the hoist. When the other button (either F11 or F12) is pressed, the x and
y axes will be interchanged. Operating the same button again changes to the distance/velocity-
time curve.
SIMOCRANE CeCOMM commissioning and diagnostic program
8.7 Diagram - trace function
SC integrated STS, GSU
304 Operating Instructions, 07/2019, A5E48271265B AA
