5.12 Execution system
The MCC charts in the newly inserted "AddOn" (GSU and STS) and "Camera" (STS only) MCC
source files have to be integrated into the execution system; see screenshot below.

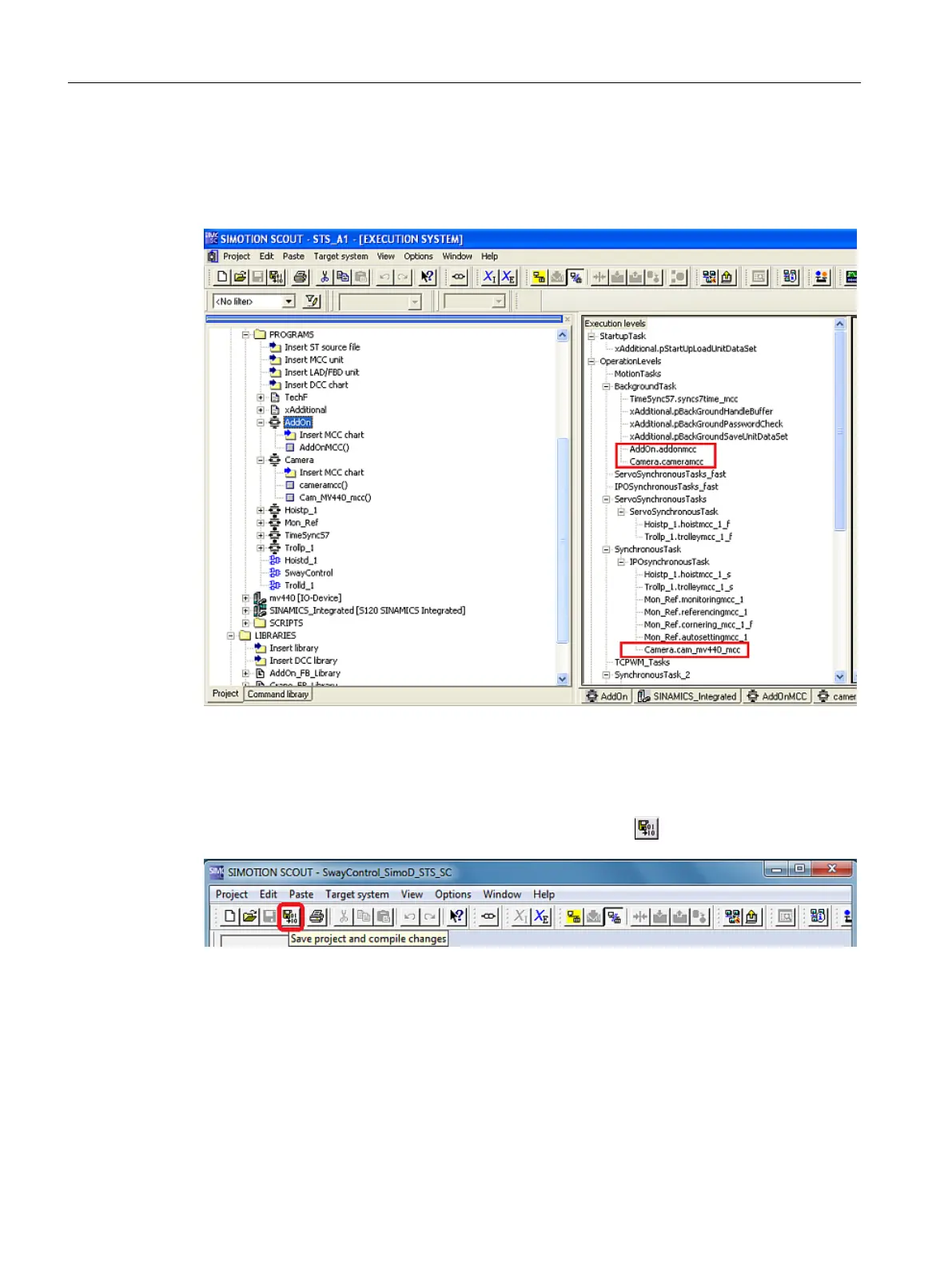

Figure 5-29 Linking the MCC charts into the execution system
5.13 Saving, compiling and checking consistency
The project is compiled and saved when you click on button: .
Then press the "Ctrl + Alt + K" key combination to perform a consistency check.
The project should now be free from any errors.
Configuration
5.13 Saving, compiling and checking consistency
SC integrated STS, GSU
134 Operating Instructions, 07/2019, A5E48271265B AA
