9.5.4 Parameterizing "cylinder jogging" mode

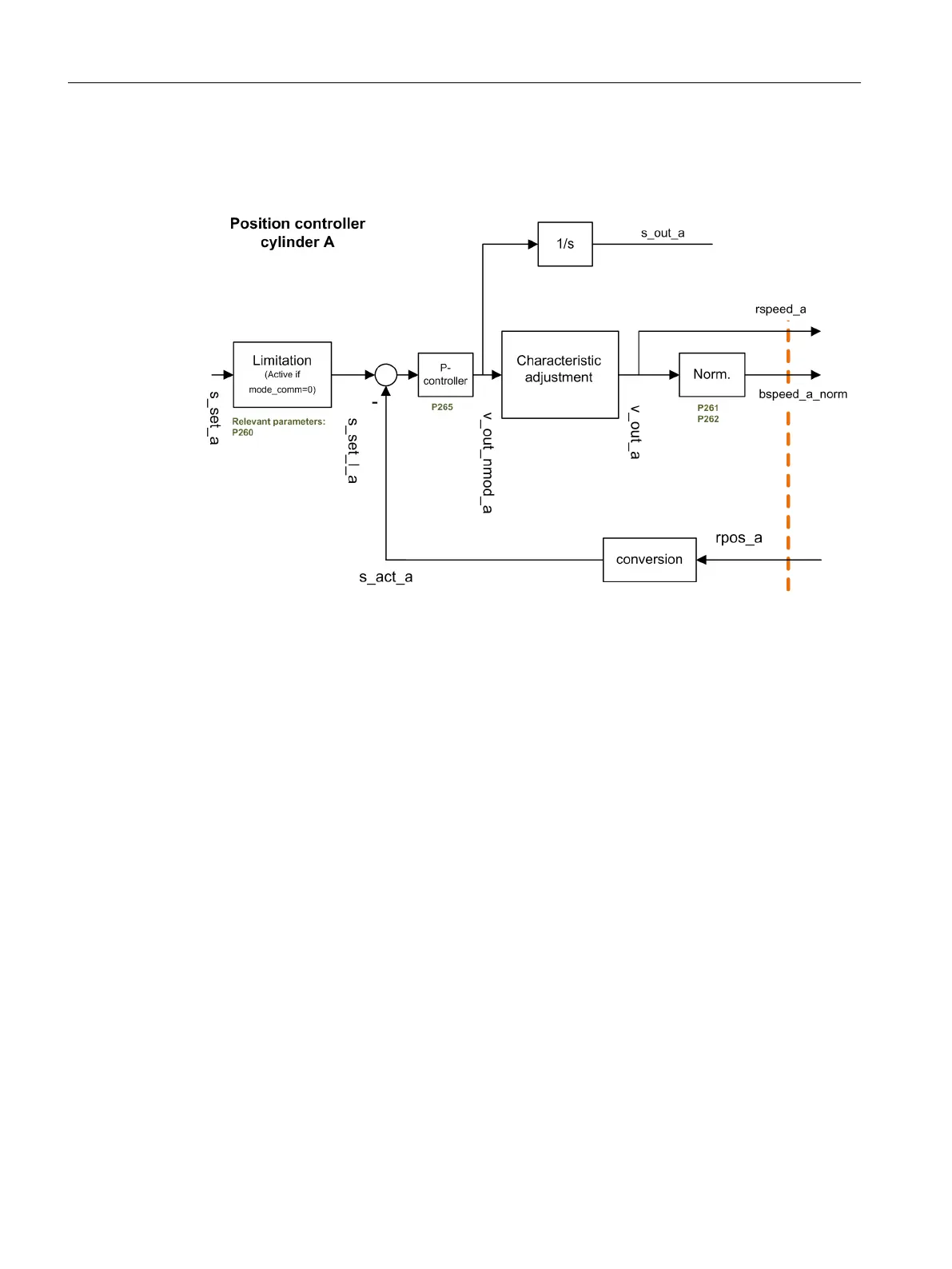

Figure 9-18 Position controller
Set the following values to commission the cylinder position control:
1. P254 (set velocity cylinder)
2. P255 (set acceleration cylinder)
3. P262 (normalization value cylinder)
Default value is equivalent to 100% for analog input and output modules.
4. P265 (position controller cylinder)
The procedure for setting and optimizing the "position controller cylinder" is similar to that for
an electric drive (see Chapter Position controller setting (P328) (Page 364)).
5. P261 (maximum velocity cylinder)
