Siemens SIMOTION D4x5-2 DP/PN

Name Type Data
type
Unit-global variables of "AddOn" Meaning
bo_zsw1_pos_in_safety_area IN BOOL common_SC_pos_in_safety_area Bit 9 of status word 1
bo_zsw1_Pos_In_BR_Man IN BOOL common_sc_pos_in_br_man Bit 10 of status word 1
b32Error1 IN DWORD common_sc_error1 Error area 1
b32Error2 IN DWORD common_sc_error2 Error area 2
b32Info_No_Auto_Start IN DWORD common_sc_info_no_auto_start Information area for SAM
mode start
i8Parset_OUT IN SINT common_SC_ParSet_OUT Return value for parameter
set
i32impnt OUT DINT common_SC_Impnt Current immersion point
Common_IO_PQW OUT ARRAY
[0..11]
OF word
addon_common_send Output array for the Com‐
mon block (see Figure 5-13
Address list in SCOUT
(communication between
SIMATIC S7 and SIMO‐
TION) (Page 122))
3.3.2.3 FB_HoistPLCToAddOn
Symbol (FBD representation)
)%B+RLVW3/&7R$GG2Q
$55$<
+RLVWB,2B3,:
EBVWZ
ERBVWZB5HOHDVH
ERBVWZB7UDYHO
ERBVWZB20B3RV
ERBVWZB20B6SHHG
ERBVWZB20B+RLVWB&RQWURO
ERBVWZB/6B83
ERBVWZB/6B'1
:25'
%22/
%22/
%22/
%22/
%22/
%22/
%22/
%22/
ERBVWZB3UH/6B83
ERBVWZB3UH/6B'1
ERBVWZB%UDNHBFORVHG
%22/
%22/
,17L2YHUULGH
,17L2IIVHW

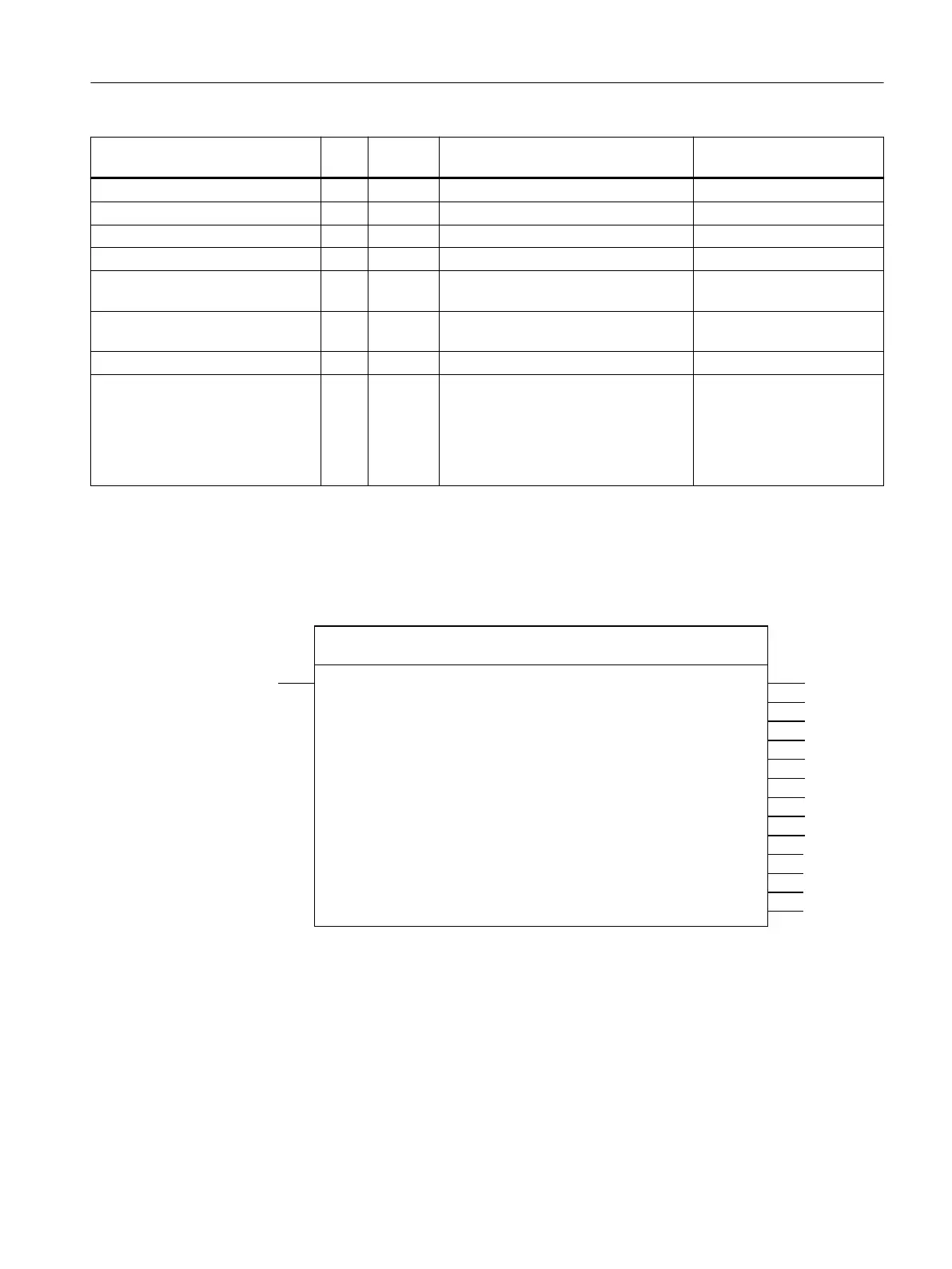

Figure 3-17 FB_HoistPLCToAddOn
Task
The "FB_HoistPLCToAddOn" block reads the input area from the PROFIBUS DP / PROFINET
PN for the Hoist block and separates the array into words and bits.
Overview of the software
3.3 Sway control function blocks
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 61
