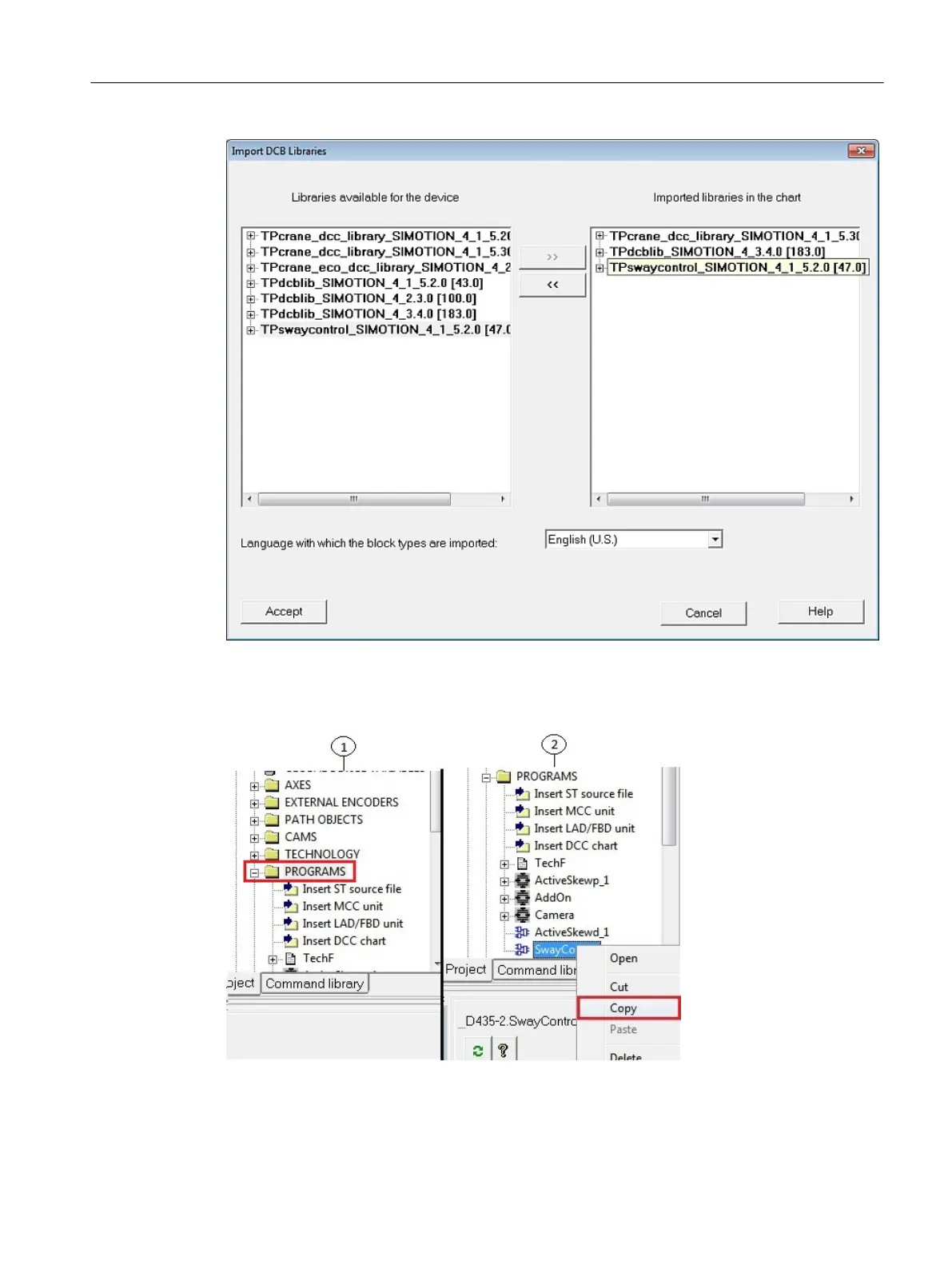

Figure 5-24 DCC library imported
You can now copy the "SwayControl" DCC chart from the application project to the user project.
To do this, select the chart in the application project using the right mouse button and copy it.
① User project
② Application project
Figure 5-25 Copying the DCC chart from the application project
Configuration
5.9 Inserting DCC blocks
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 129
