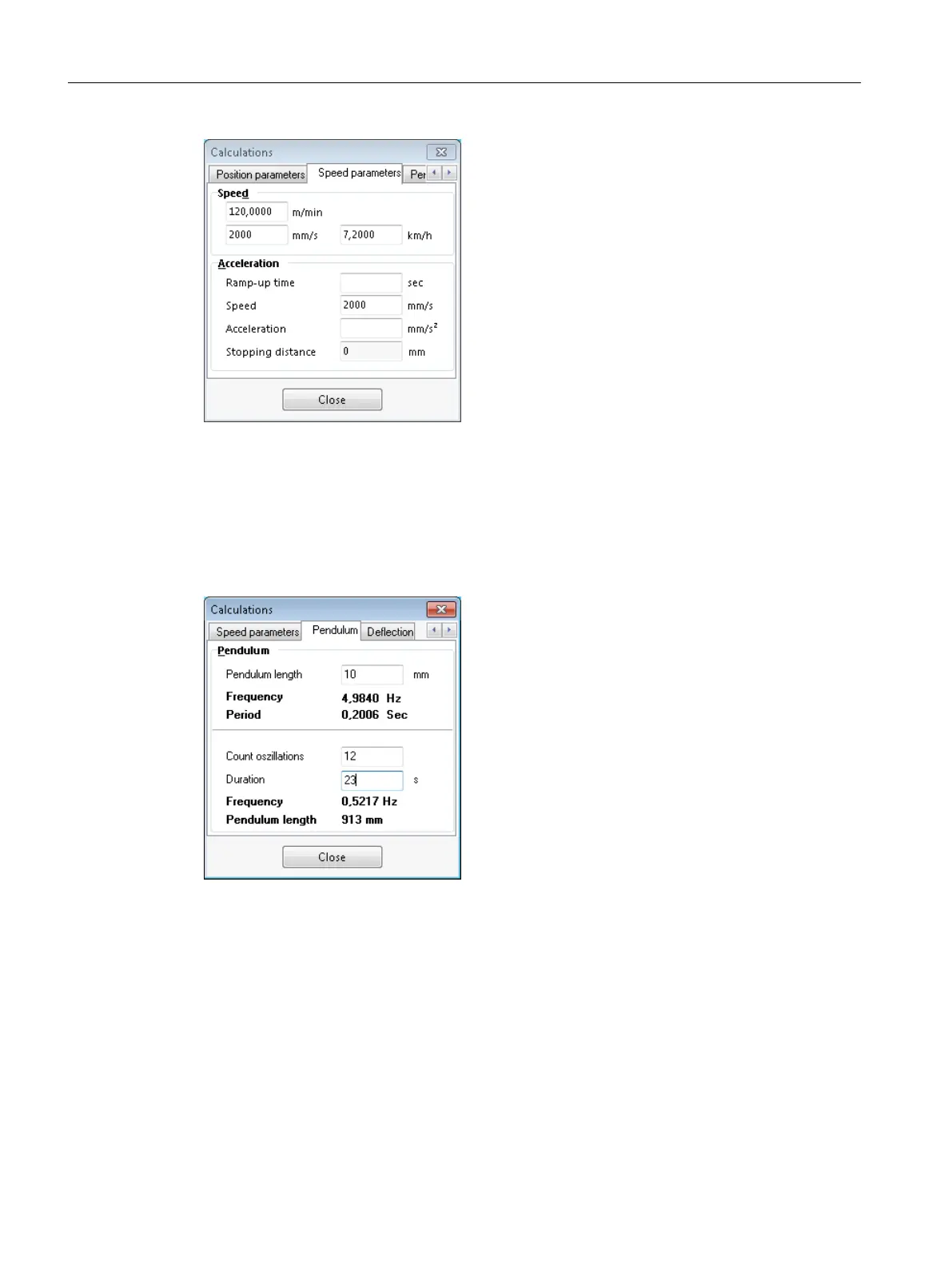

Figure 8-7 Calculation of speed parameters
Pendulum length
This function can be used to calculate the frequency or the oscillation period from a known
pendulum length.
It is also possible to determine the frequency and the pendulum length from a specific
oscillation count over time.
Figure 8-8 Pendulum calculations
Deflection
After the pendulum length and acceleration have been input, the maximum deflection values for
starting and stopping are calculated without sway control.
SIMOCRANE CeCOMM commissioning and diagnostic program
8.4 Menu bar
SC integrated STS, GSU
270 Operating Instructions, 07/2019, A5E48271265B AA
