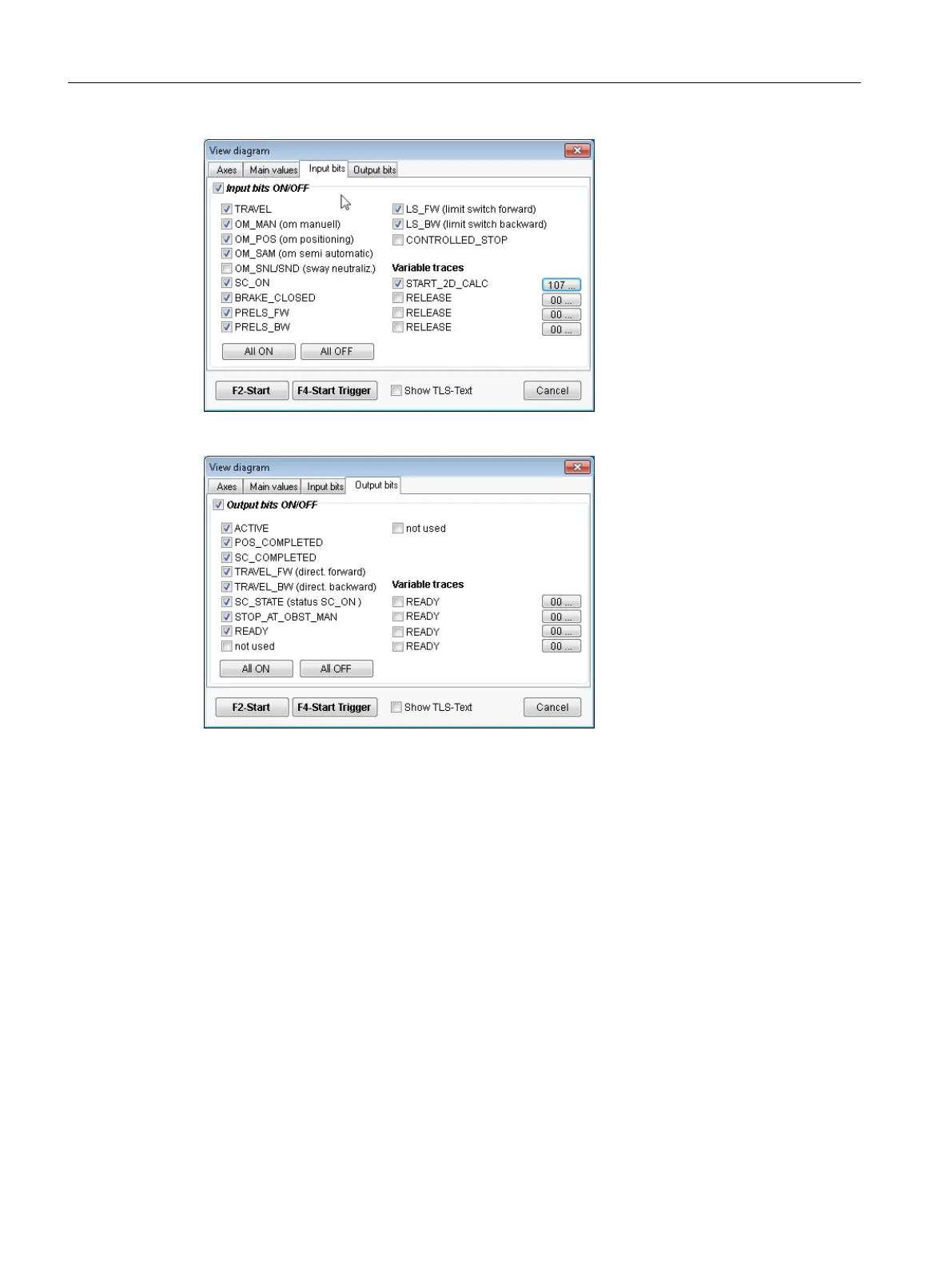

Figure 8-25 Diagram function, F2-Start, Input bits tab
Figure 8-26 Diagram function, F2-Start, Output bits tab
● Bit signals from/to PLC
Selection of the bits from and to the PLC displayed in the diagram (lower area).
● All ON
Select all parameters.
● All OFF
Select no parameter.
● Recording ON
If this checkbox is deactivated, it is possible to end the recording of the bits without losing
the settings of the parameters to be selected.
However, it is also possible to record all parameters first and then restrict the recording using
the "F7-View" button.
SIMOCRANE CeCOMM commissioning and diagnostic program
8.7 Diagram - trace function
