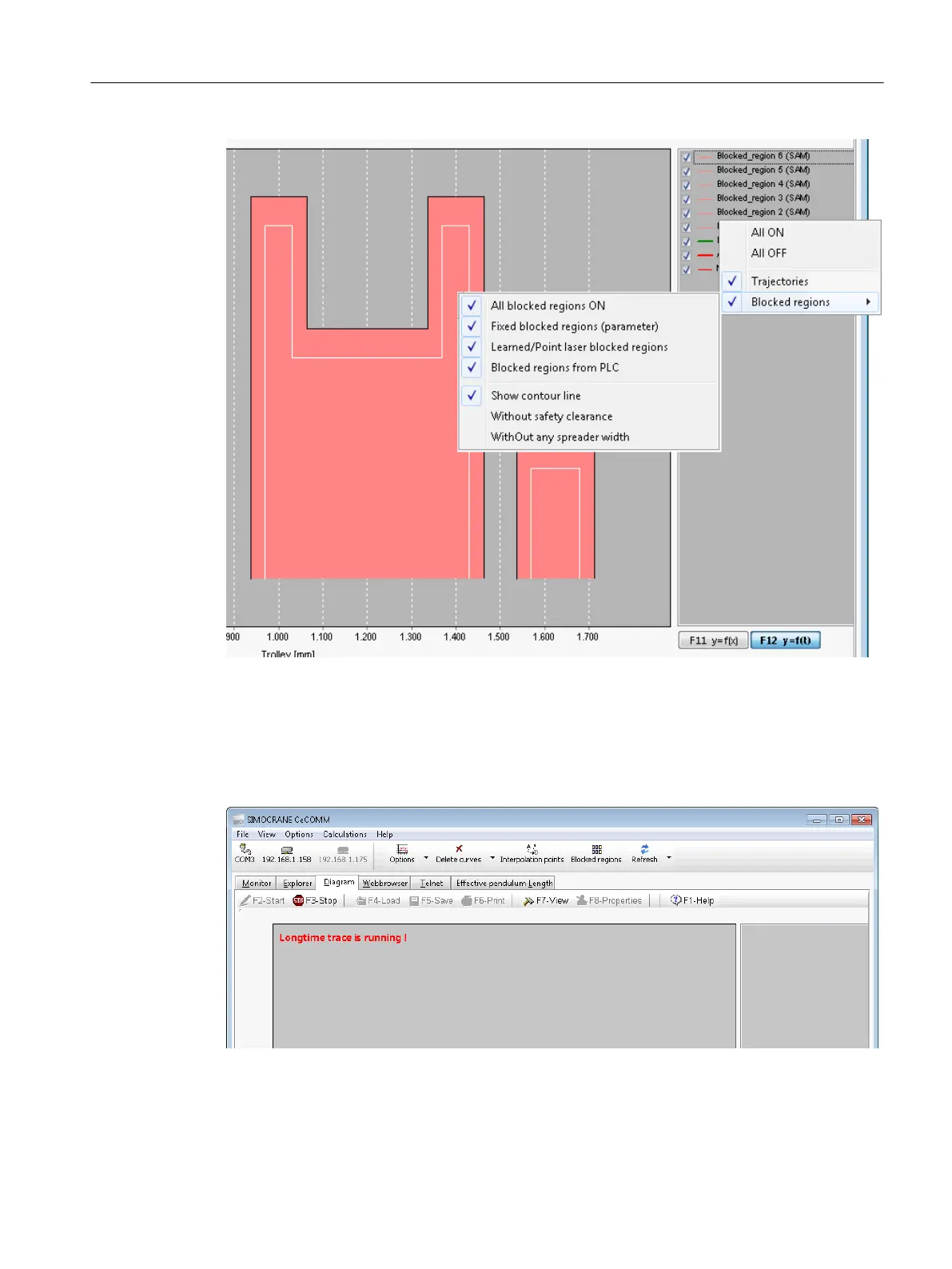

Figure 8-33 Display options for blocked regions
Longtime tracing
This function can be used to record over several hours or several days, e.g. for diagnostic
purposes.
Figure 8-34 Longtime trace active
The laptop screen can be closed. Screensavers also do not interrupt the trace.
Every half hour, a file together with the date and time set up in SIMOTION is saved
automatically in the "LongTraces" directory.
SIMOCRANE CeCOMM commissioning and diagnostic program
8.7 Diagram - trace function
SC integrated STS, GSU
Operating Instructions, 07/2019, A5E48271265B AA 299
