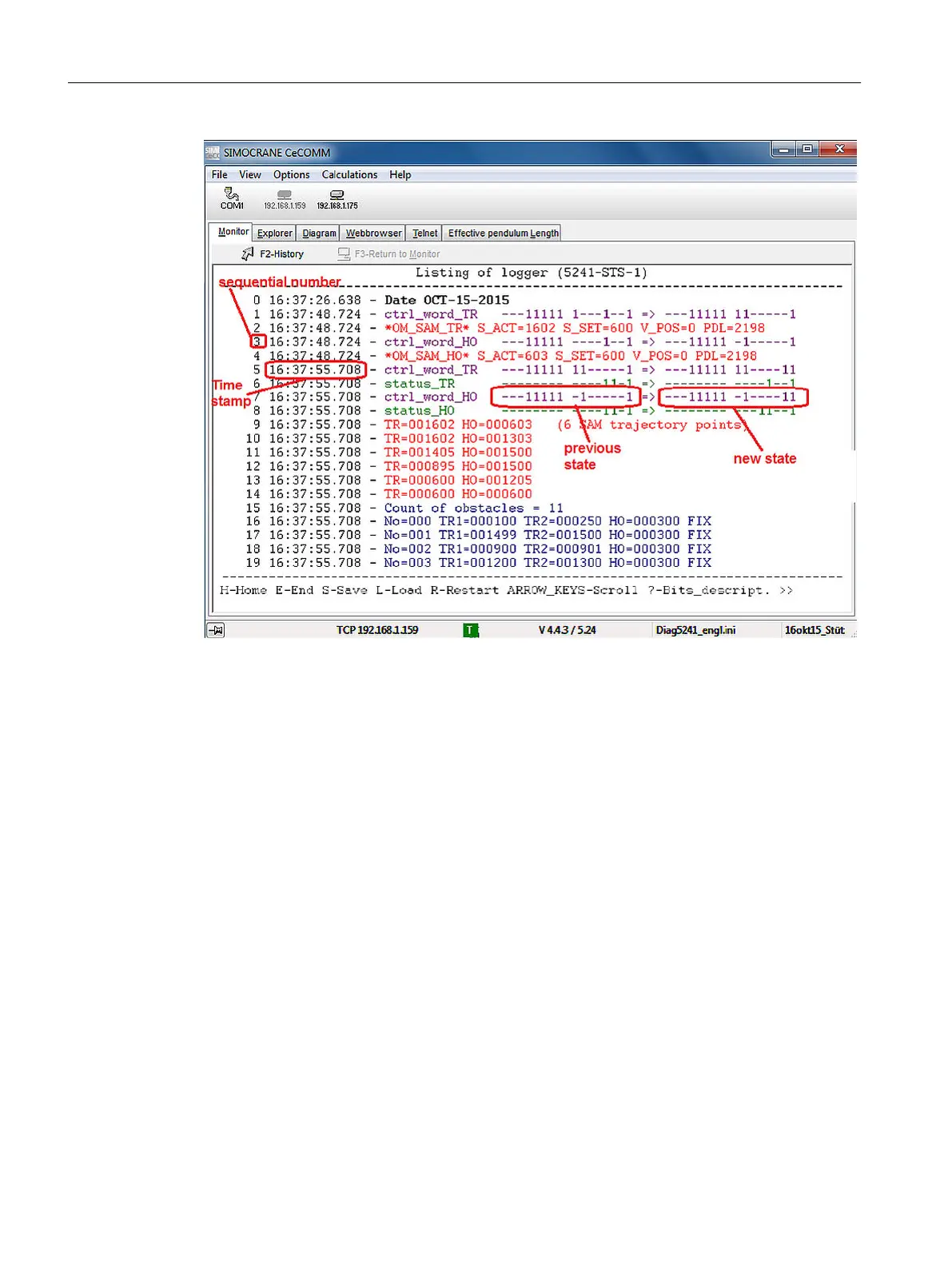

Figure 8-45 Display of the logger content in SIMOCRANE CeCOMM
<H> key Go to start (Home key)
<E> key Go to last page (End key)
<↑> Page up
<↓> Page down
< ← > Go to start (see Home key)
< → > Go to last page (see End key)
<S> key Saves the content either as a “Logger.bin” or “Logger.txt” file
<L> key Loads a stored file into the buffer
Is only active if a Logger.bin file is available.
<R> key Deletes the current buffer content (Restart key)
RETURN Updates the current display
<?> key Calls up the display "Description of the control bits", see screenshot below.
SIMOCRANE CeCOMM commissioning and diagnostic program
8.9 Logger
SC integrated STS, GSU
314 Operating Instructions, 07/2019, A5E48271265B AA
