The available line-of-sight depends on the choice of lens. See [Ref. 1].
Then repeat this commissioning step.
Calculating the effective pendulum length – trolley (commissioning step 2)
Note
Only systems with a camera measuring system can perform this automatic commissioning
step. For systems without a camera measuring system, perform this step manually with the tool
on the "Effective pendulum length" tab. You will find more information in Chapter Effective
pendulum length (Page 307).

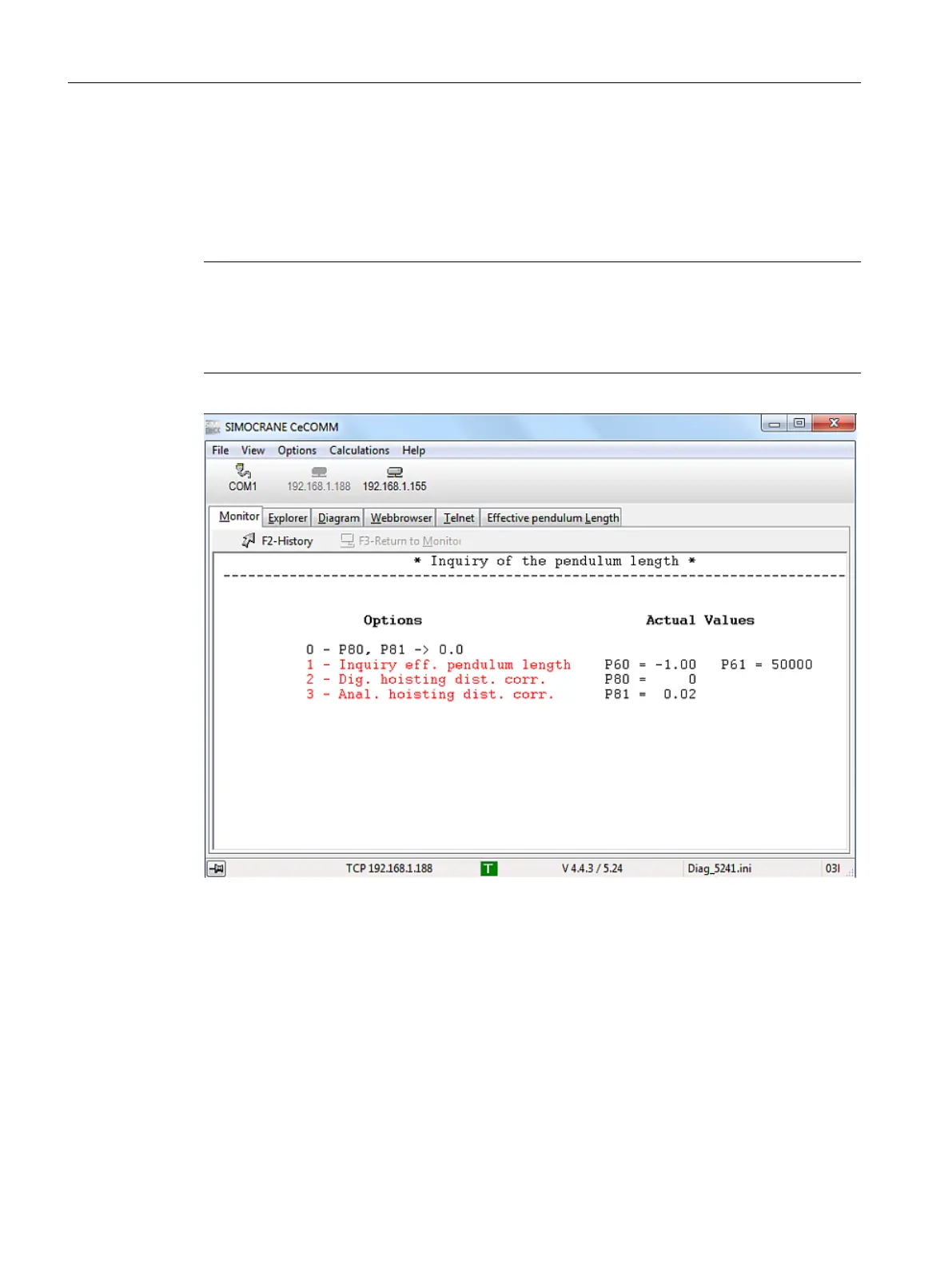

Figure 9-12 Calculating the effective pendulum length – trolley
Commissioning AddOn Software
9.4 Sway control commissioning
SC integrated STS, GSU
334 Operating Instructions, 07/2019, A5E48271265B AA
