5.1 Interface overview
5-176
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
DACs
Measuring system
(encoder
connection)
Pressure sensor
Servo solenoid
valve
Drive bus
Device bus

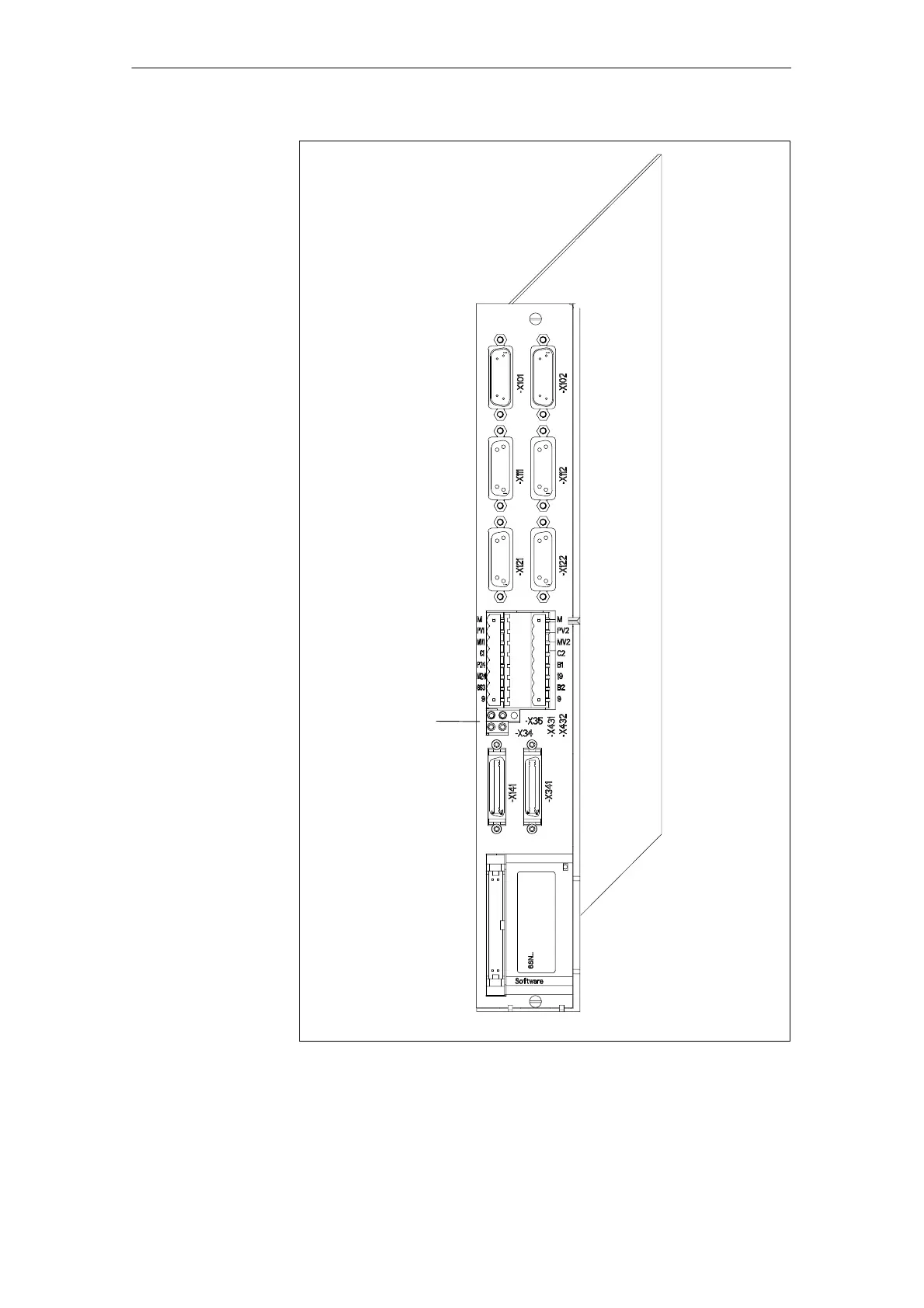

Fig. 5-1 HLA closed-loop control plug-in module (2-axis)
