2.2 Integration in SINUMERIK 840D/SIMODRIVE 611 digital
2-29
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
50 mm carrier module
(universal empty housing)
(6SN1162-1AA00-0AA0)
Rating plate/Order No.
Order No.
HLA closed-loop control plug-in
module (6SN1115-0BA11-0AA1)
M3 / 0.8 Nm
M4 / 1.8 Nm
M3 / 0.8 Nm
P600
M600
PE
M5 / 3.0 Nm
Shield connection
Slotted screw
Slotted screw

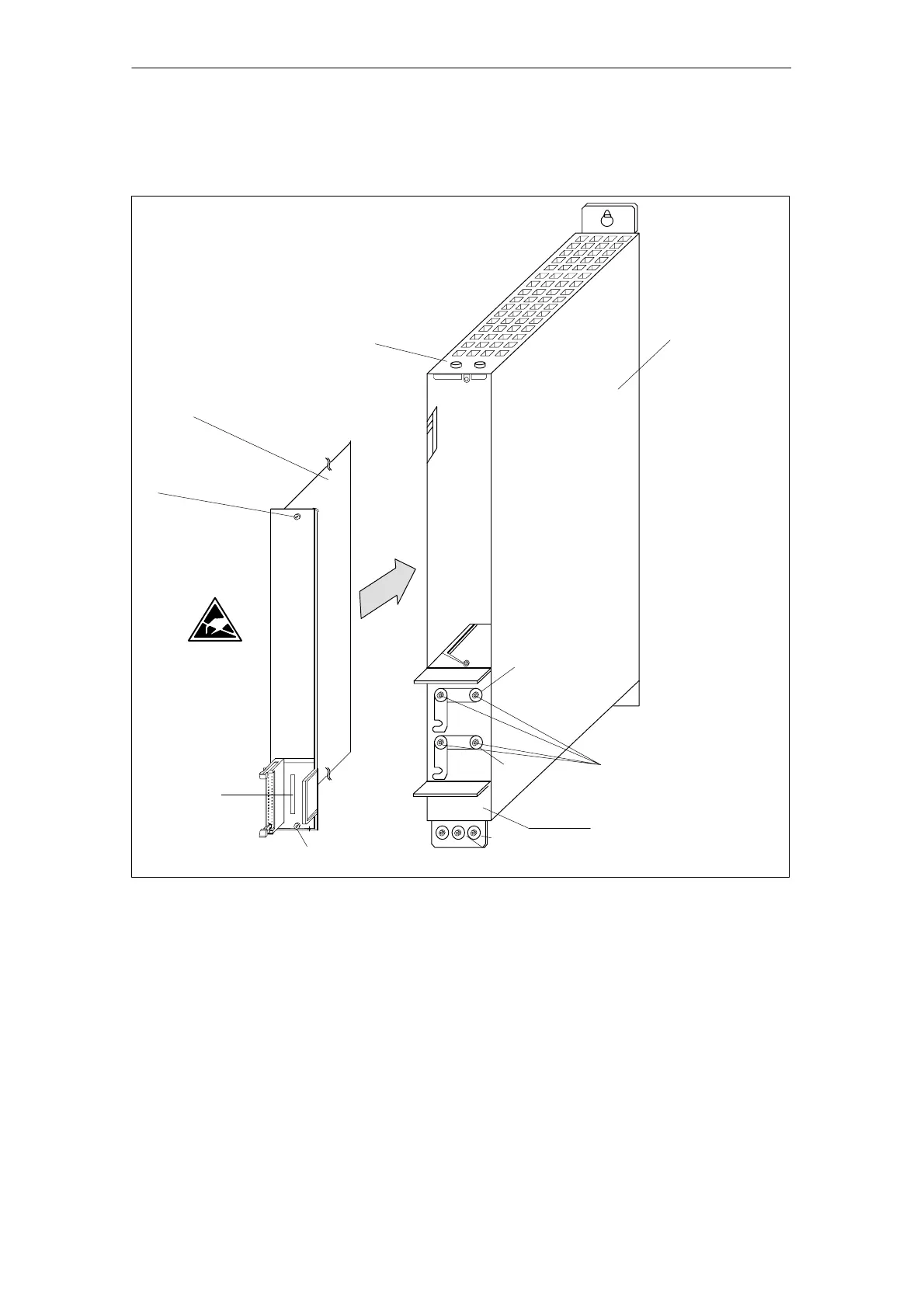

Fig. 2-6 Mounting the HLA closed-loop control plug-in module in 50 mm carrier module (universal empty housing)
2.2.2 Required FW packages
S SINUMERIK 840D NCK SW w 5.1
including SIMODRIVE 611 digital HLA module w1.0
S SINUMERIK 840D MMC SW u5.1
or
SINUMERIK 840D HMI SW w6
2.2.3 Hardware requirements
S NCU 561.2, 571.2, 572.2, 573.2
Mounting the HLA
closed-loop control
plug-in module
2 Configuration

Siemens Sinumerik 840D Series Specifications

General

Axes	Up to 31 axes
Power Supply	24 V DC
Control Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
PLC	Integrated PLC (programmable logic controller)
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Max. Number of Channels	Up to 10 channels
