Siemens Sinumerik 840D Series Function Manual

10.03
4.2 Functions
4-98
 Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
4.2.2 Parameter set changeover
It is possible to switch between 8 different parameter sets. Data which are as-
signed to specific parameter sets are identified by an [n] in the string code [0-7].
The request is made from the PLC by means of IS “Select drive parameter set”
DB 31-61 DBB 21 bits 0-2. They are predominantly controller and filter data
that can be switched over as a function of parameter set.
The status is interrogated by means of IS “Active drive parameter set” DB
31-61 DBB 93 bits 0-2.
Section 4.15 contains a complete parameter list with the attributes for each pa-
rameter.
HLA module
Servo solenoid valve
Controlled system 1 Controlled system 0
ÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉ
Press
e.g. parameter set 0e.g. parameter set 1
Hydraulic cylinder
Change-
over block
PLC

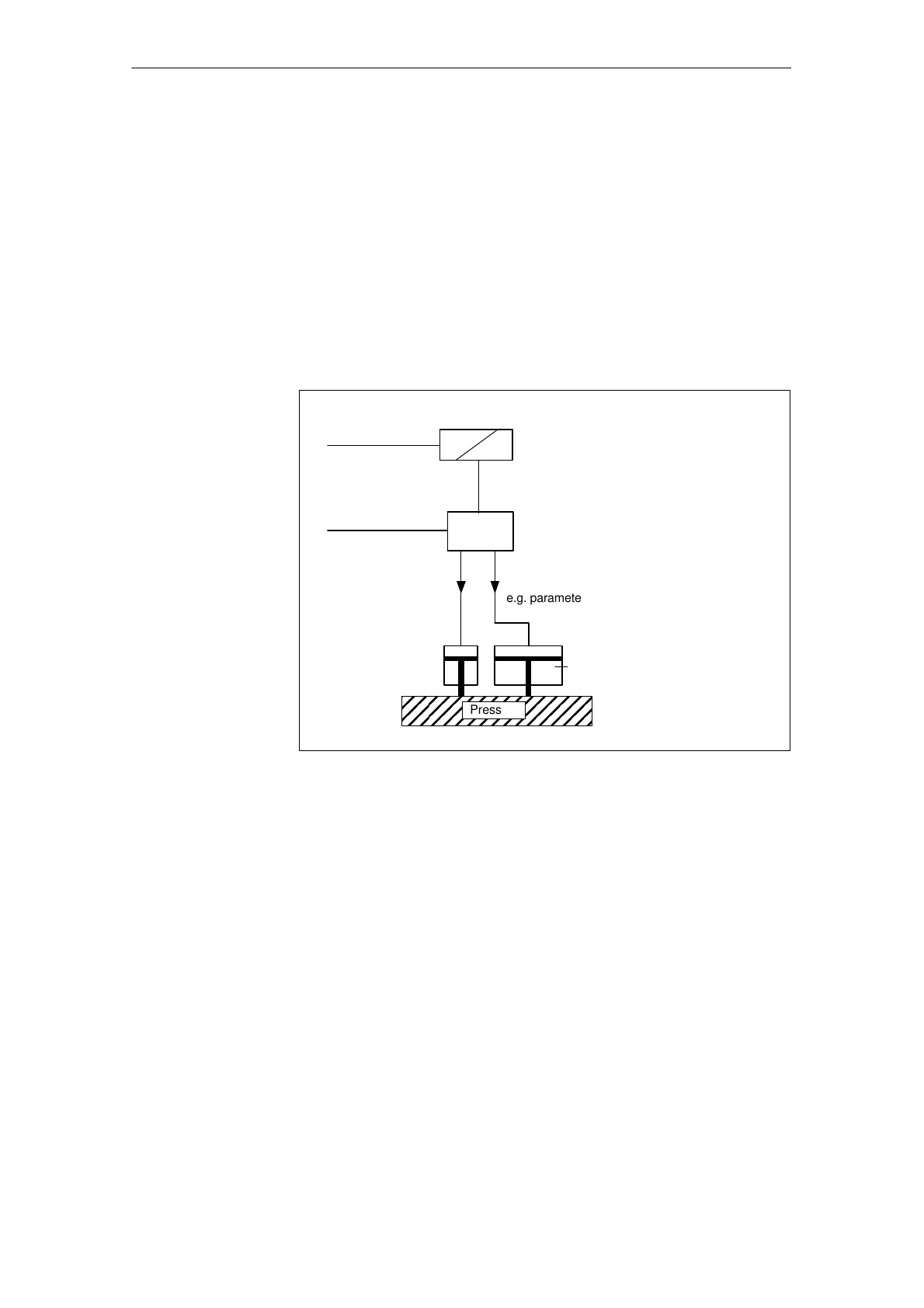

Fig. 4-3 Example of a parameter set changeover
4 Firmware Drive Functions

Siemens Sinumerik 840D Series Specifications

General

Axes	Up to 31 axes
Power Supply	24 V DC
Control Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
PLC	Integrated PLC (programmable logic controller)
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Max. Number of Channels	Up to 10 channels
