10.03
3.9 Fine adjustment and optimization
3-64
Siemens AG, 2003. All rights reserved
SINUMERIK 840D/SIMODRIVE 611 digital, HLA Module (FBHLA) - 10.03 Edition
The positive direction of travel of the machine is defined by the user.
With adjustment of travel direction with setpoint MD 32100: AX_MOTION_DIR.
Traverse with JOG key
(override approx. 10%)
no
Yes
Does cylinder move
in the set direction?
End
Step 3
MD 32100: Change AX_MOTION_DIR
(travel direction of machine)
(define travel direction of machine)

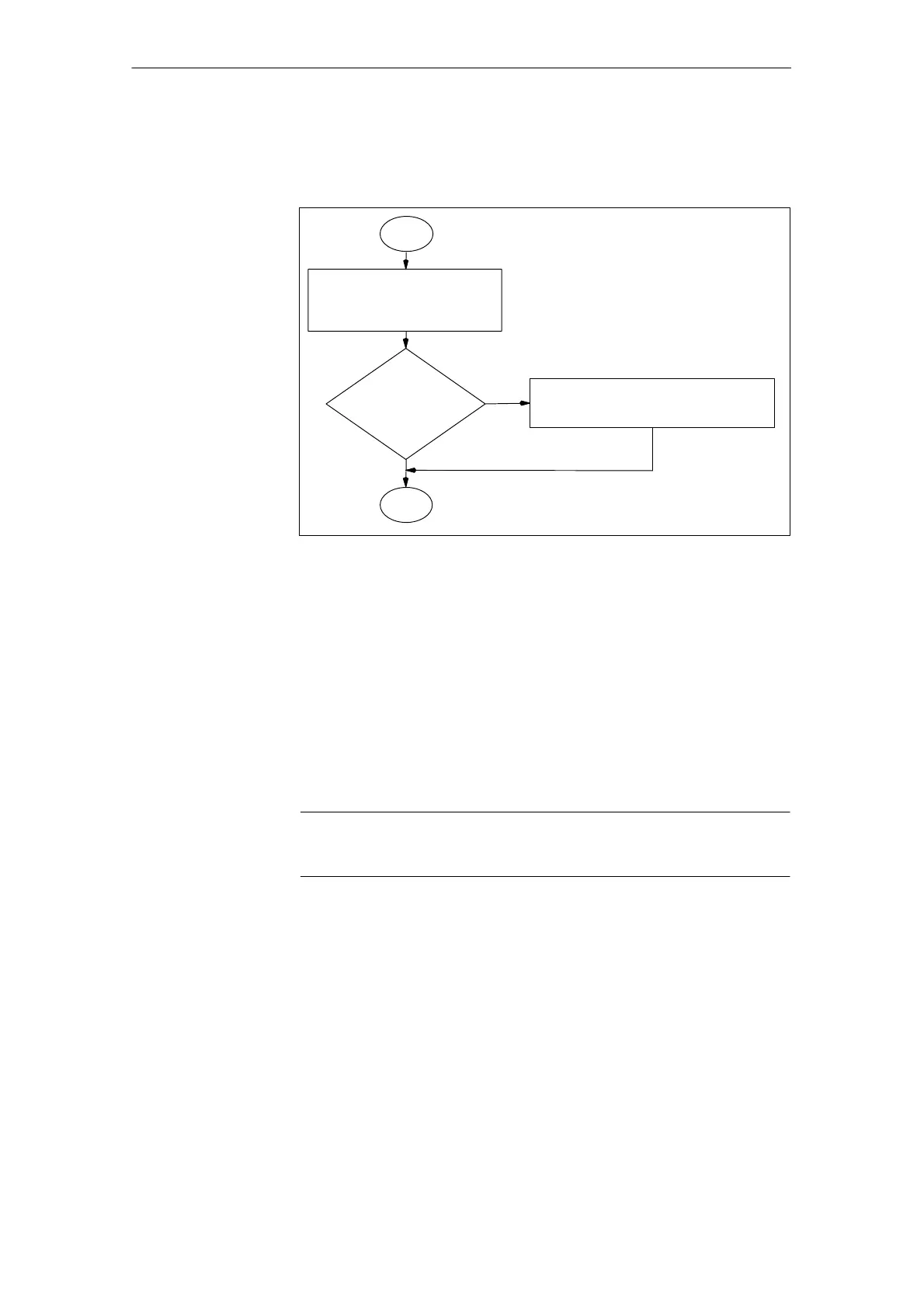

Fig. 3-19 Start-up flow chart, definition of travel direction in NC
The setpoint limitation must be set to 10 V in the following MDs:
MD 5474: OUTPUT_VOLTAGE_POS_LIMIT
MD 5475: OUTPUT_VOLTAGE_NEG_LIMIT
3.9.2 Offset adjustment
Note
Only in combination with pressure sensing function.
Condition: Sensors are pressure-free!
Ideal: The pressure indicator should also display 0 bar at zero pressure.
Adjustment:
S MD 5650: Set DIAGNOSIS_CONTROL_FLAGS bit 12 (canceled automati-
cally after 2 s).
S Pressure sensor A: MD 5551: PRESSURE_SENS_A_OFFS is automatically
adjusted.
S Pressure sensor B: MD 5553: PRESSURE_SENS_B_OFFS is automatically
adjusted.
For unpressurized pressure sensors, the display must read approximately 0.0
bar for both pressures (MD 5704, MD 5705).
Definition of travel
direction in NC
(Step 3)
Cancel
manipulated
voltage
limitation
Offset of pressure
sensors
